Lenovo Flex 7 - Remove the Microphone Rubbers

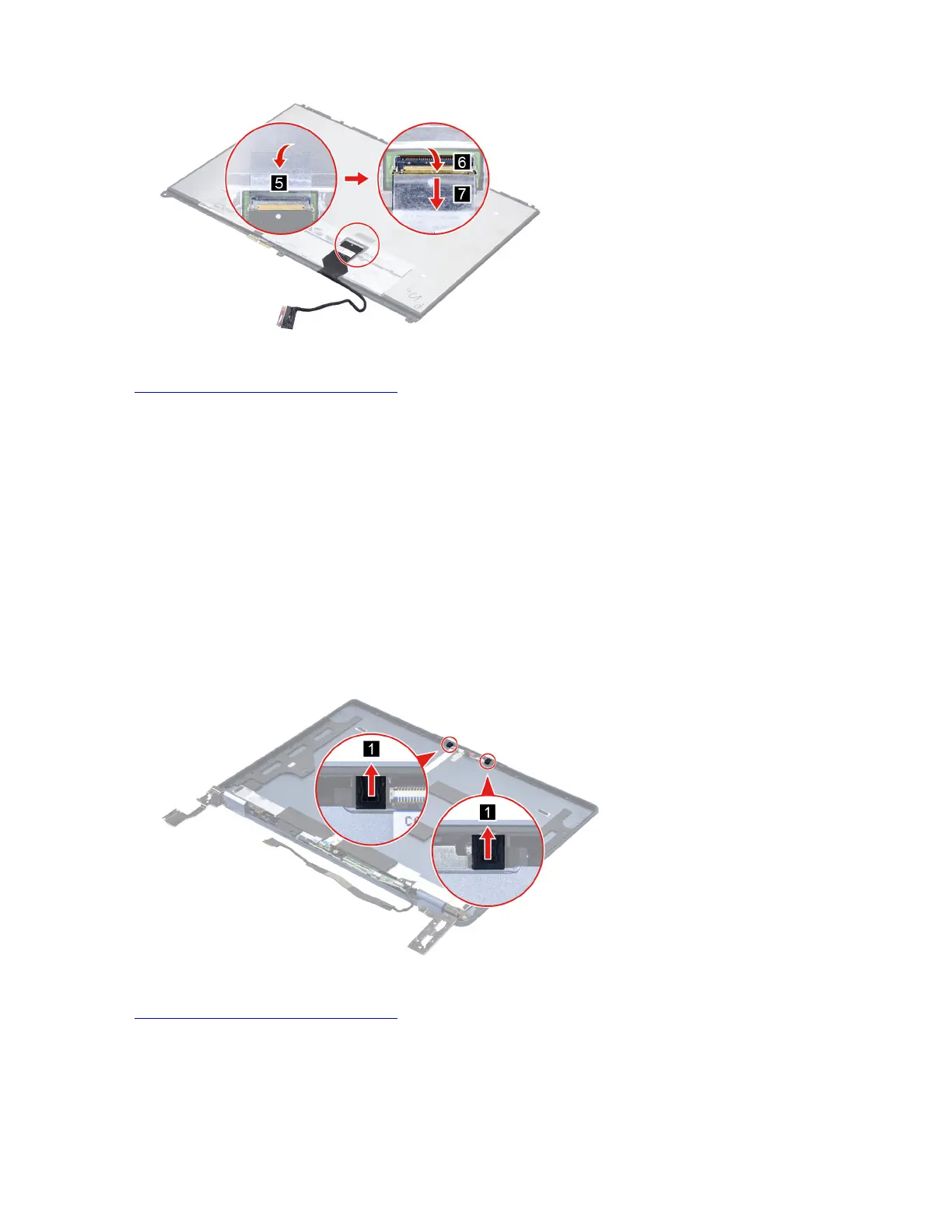

Figure 37. Peel off tape then disconnect the EDP cable from the LCD panel
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
LCD panel
Removable tape
EDP cable
Remove the microphone rubbers
Make sure the following FRUs (CRUs) have been removed.
“Disassemble the LCD unit” on page 48
“Remove the hinge cover” on page 48
“Remove the LCD panel and EDP cable” on page 48
Step 1. Remove the microphone rubbers.
Figure 38. Remove the microphone rubbers
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
Microphone rubbers
Removable tape
