Removable tape
Remove the camera cable
Make sure the following FRUs (CRUs) have been removed.
“Disassemble the LCD unit” on page 48
“Remove the hinge cover” on page 48
“Remove the LCD panel and EDP cable” on page 48
“Remove the camera” on page 52

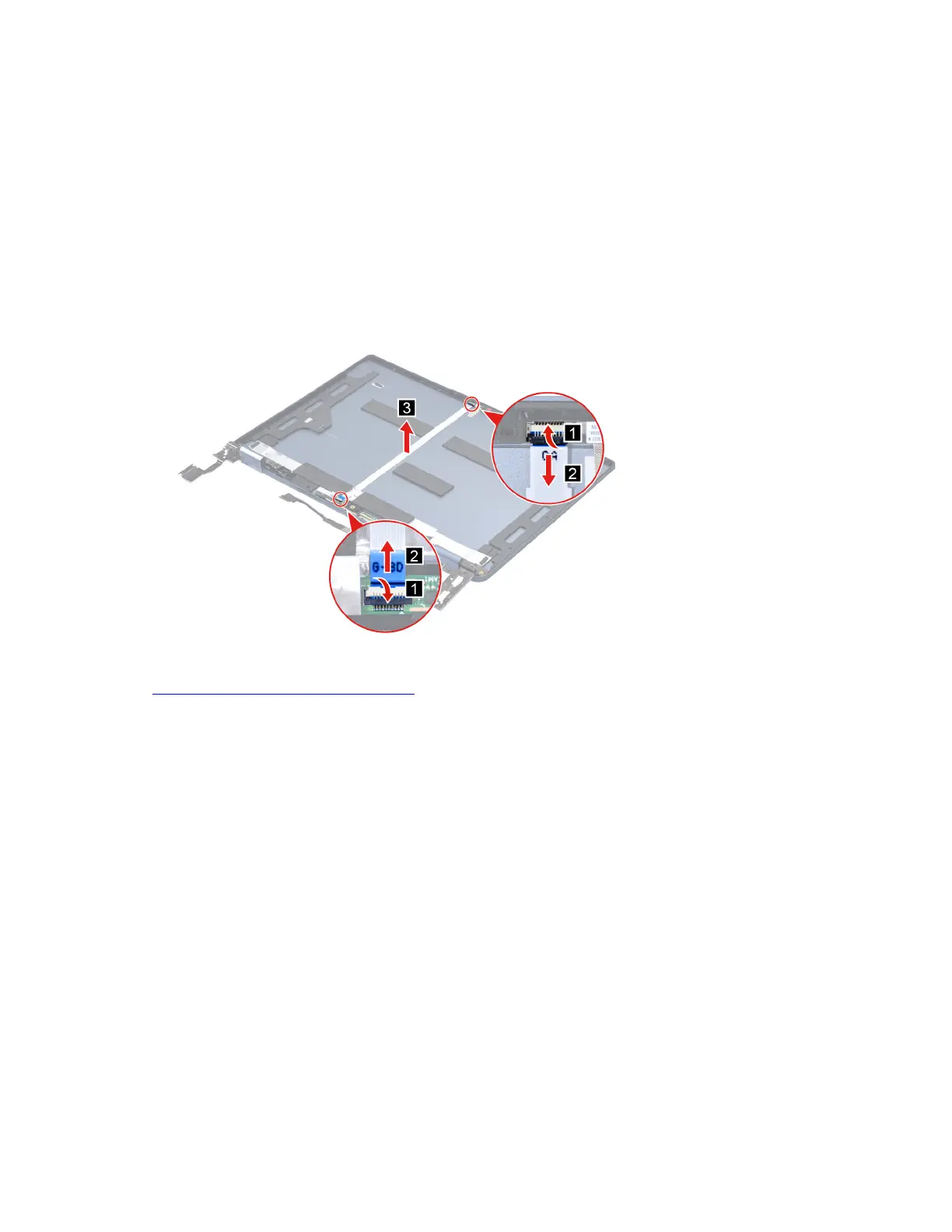

Step 1. Detach the camera cable connectors then remove the camera cable.
Figure 42. Detach the camera cable connectors then remove the camera cable
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
Camera cable
Removable tape
Remove the touch panel cable and sensor board
Make sure the following FRUs (CRUs) have been removed.
“Disassemble the LCD unit” on page 48
“Remove the hinge cover” on page 48
“Remove the LCD panel and EDP cable” on page 48
“Remove the camera” on page 52
Step 1. Peel off the tape.
Chapter 4. Removing a FRU or CRU 53
