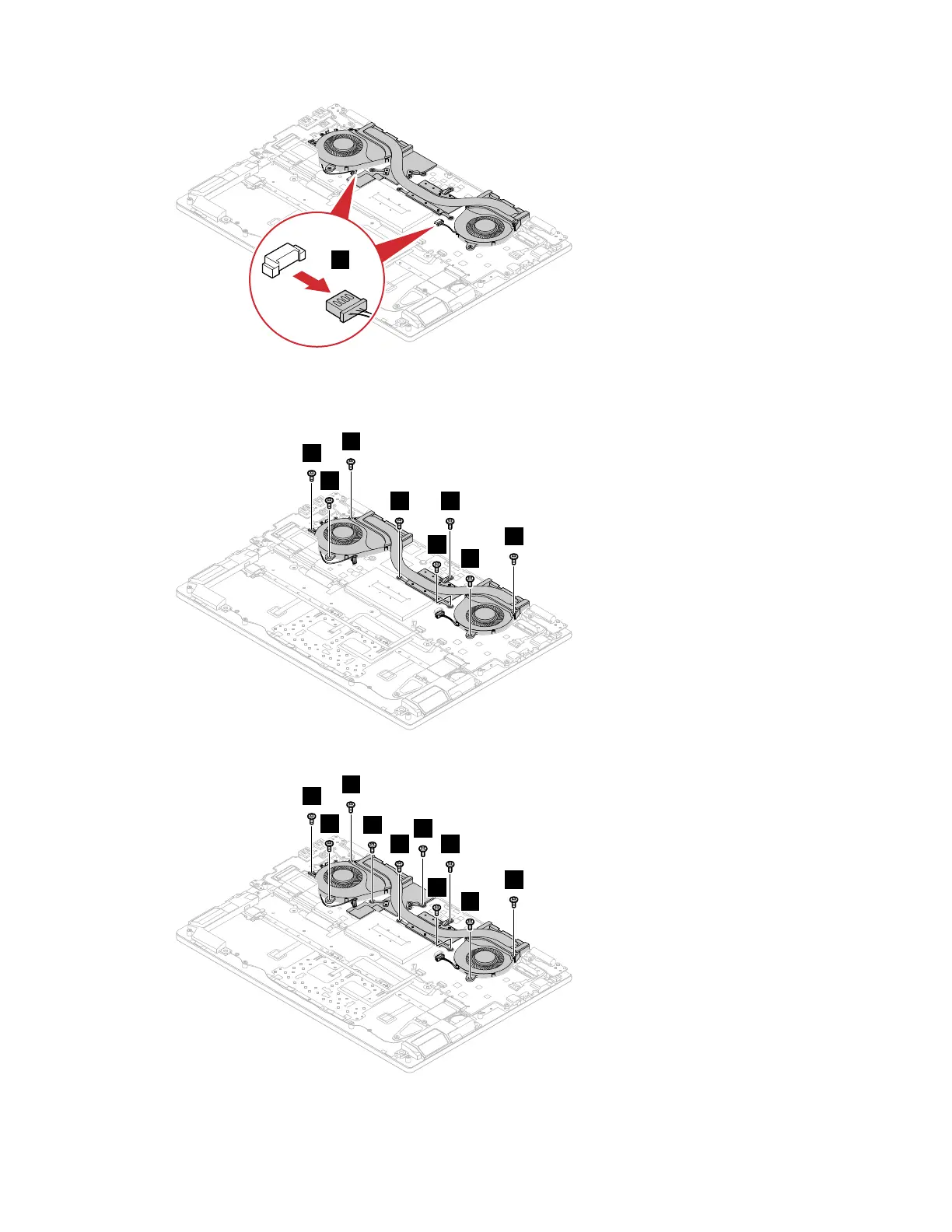

Figure 27. Detach the connectors
Step 2. Remove the screws that secure the thermal module to the system board and upper case.
2
2
2
2
2
2
2
2
Figure 28. Remove the 8 screws (for UMA)
2
2
2
2
2
2
2
2
2
2
Figure 29. Remove the 10 screws (for DIS)
