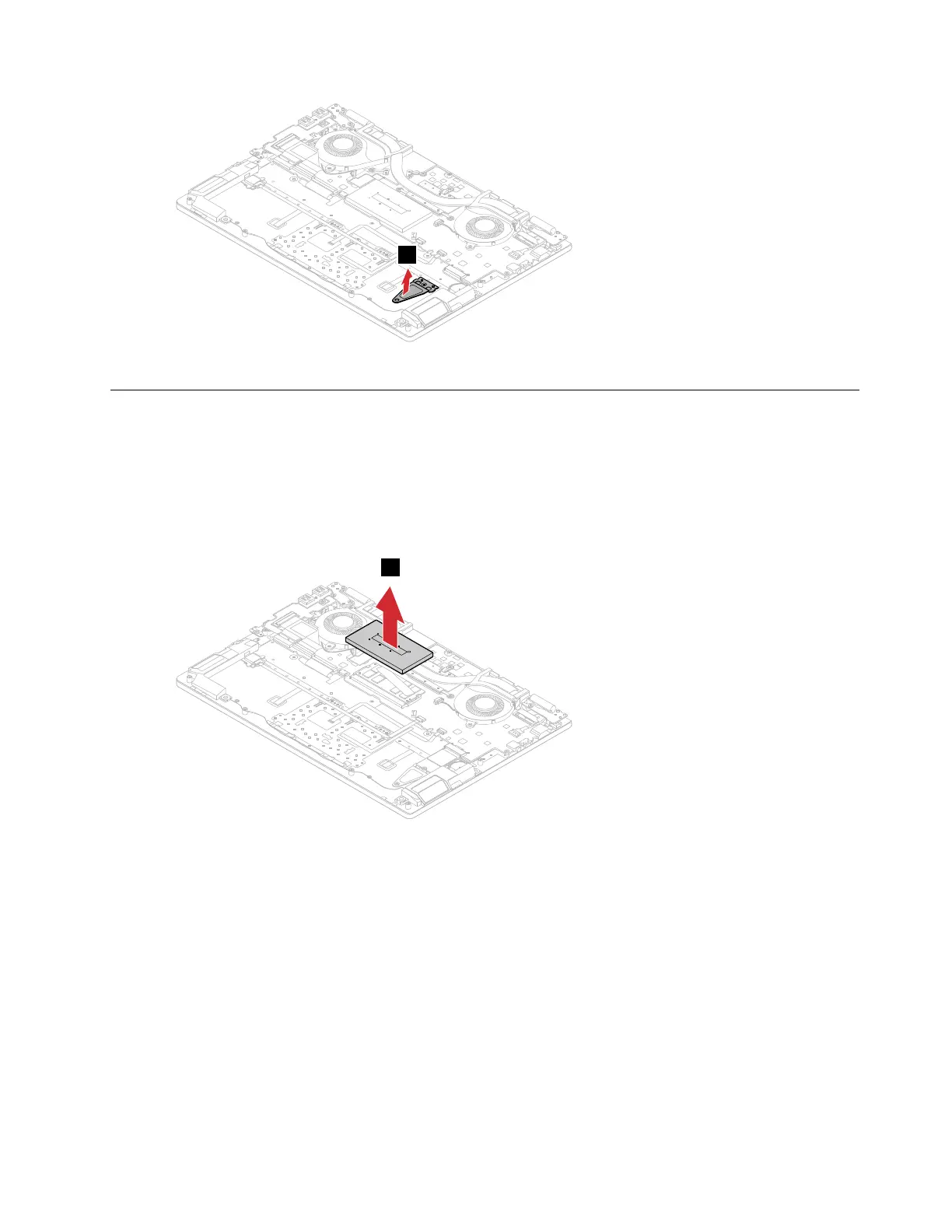

Figure 15. Remove the M.2 solid-state drive bracket
Remove the memory module
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 29
“Remove the battery pack” on page 31
Step 1. Remove the memory module shielding.
Figure 16. Remove the memory module shielding
Step 2. Release the two latches on both edges of the socket at the same time. Then, remove the memory
module.
Chapter 4. Removing a FRU or CRU 37
