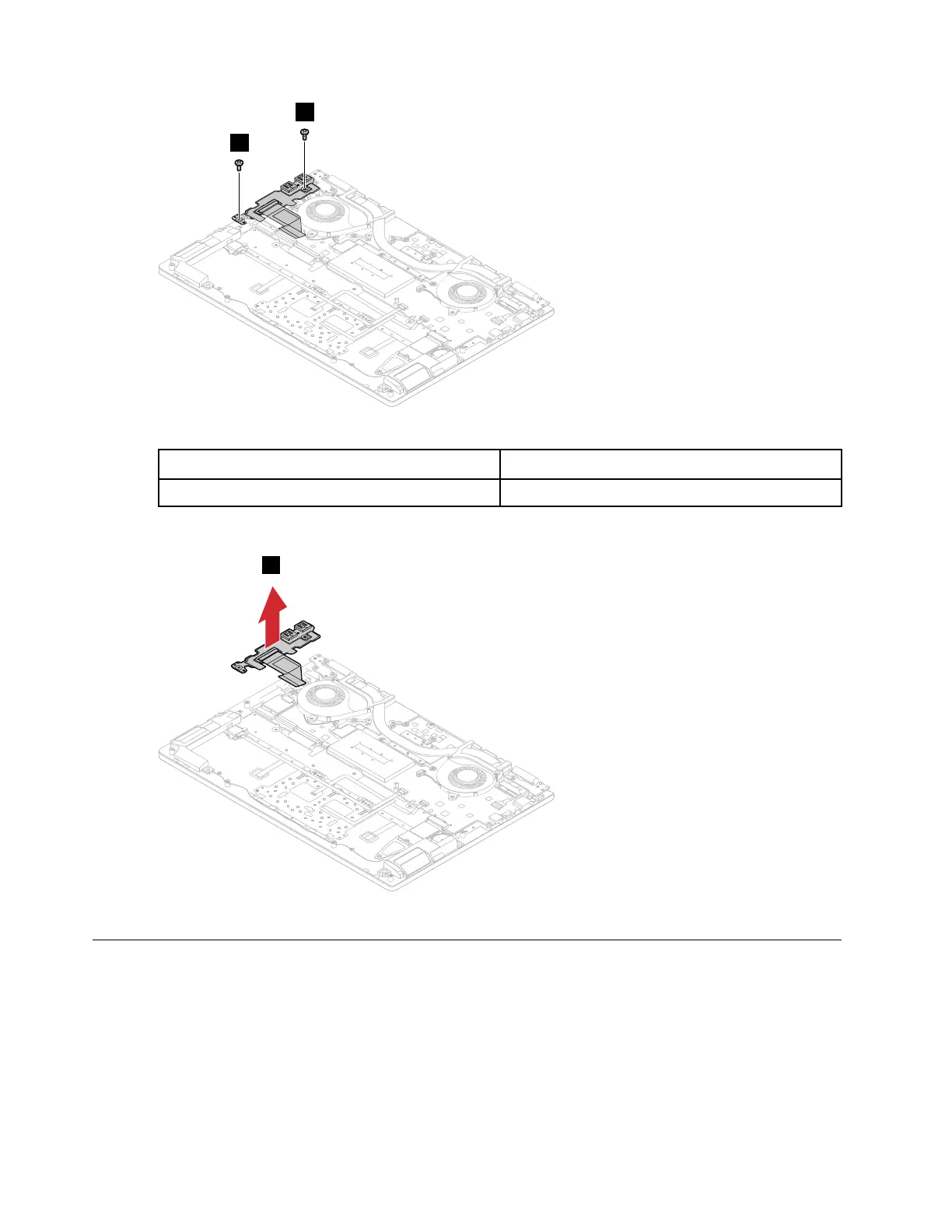

Figure 25. Remove the 2 screws
Screw specifications Number of screws
M2.0 x 3 2
Step 3. Remove the I/O board.
Figure 26. Remove the I/O board
Remove the thermal module
The thermal modules are different for UMA and DIS.
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 29
“Remove the battery pack” on page 31
Step 1. Detach the fan connectors from the system board.
42
Hardware Maintenance Manual
