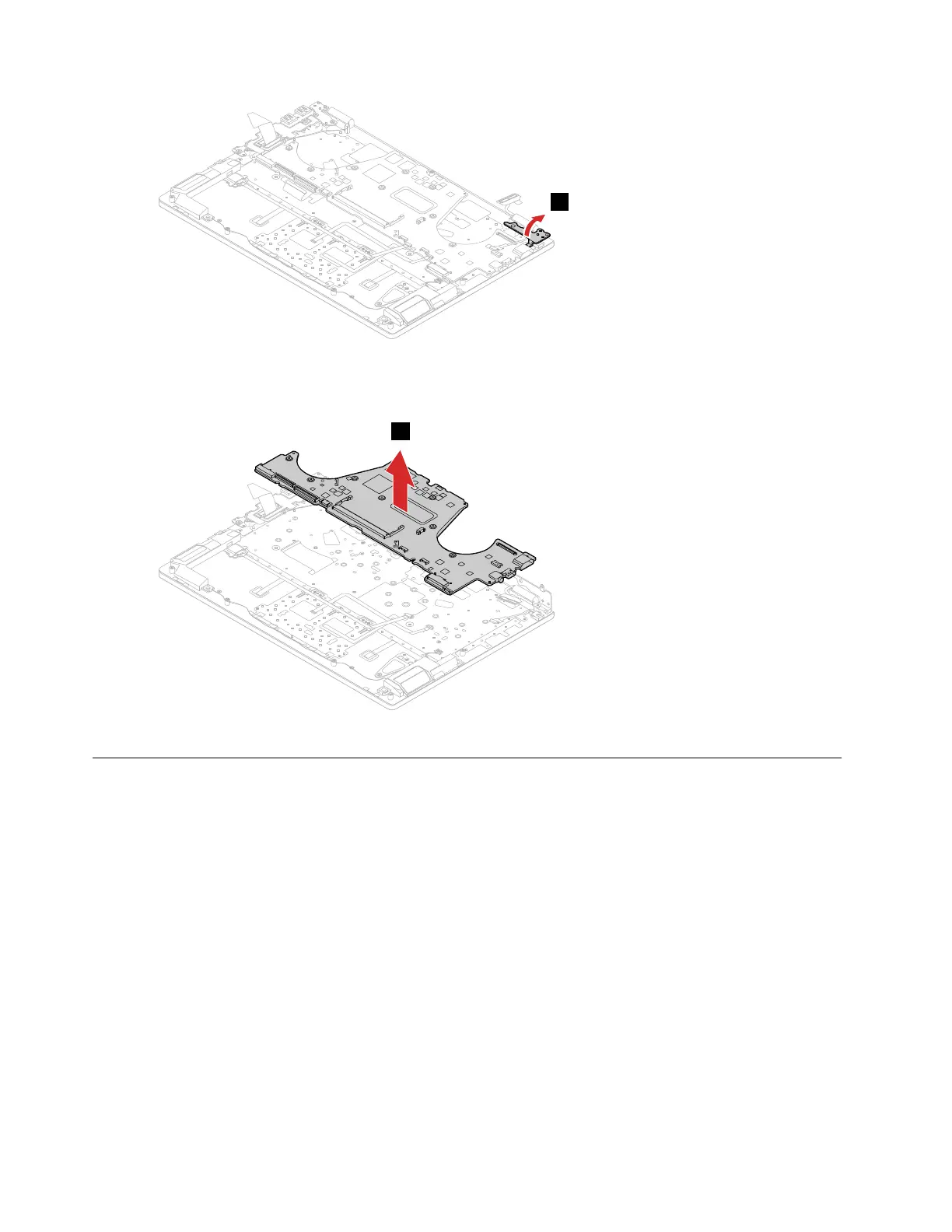

Figure 33. Open the right hinge
Step 4. Carefully remove the system board.
Figure 34. Remove the system board
Remove the dc-in cable
Make sure the following FRUs (CRUs) have been removed:
“Remove the lower case” on page 29
“Remove the battery pack” on page 31
Step 1. Detach the dc-in cable connector from the system board. Then, remove the 2 screws.
