Figure 21. Remove the fingerprint board
Remove the speakers
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 29
“Remove the battery pack” on page 31
Step 1. Detach the speaker connector from the system board.

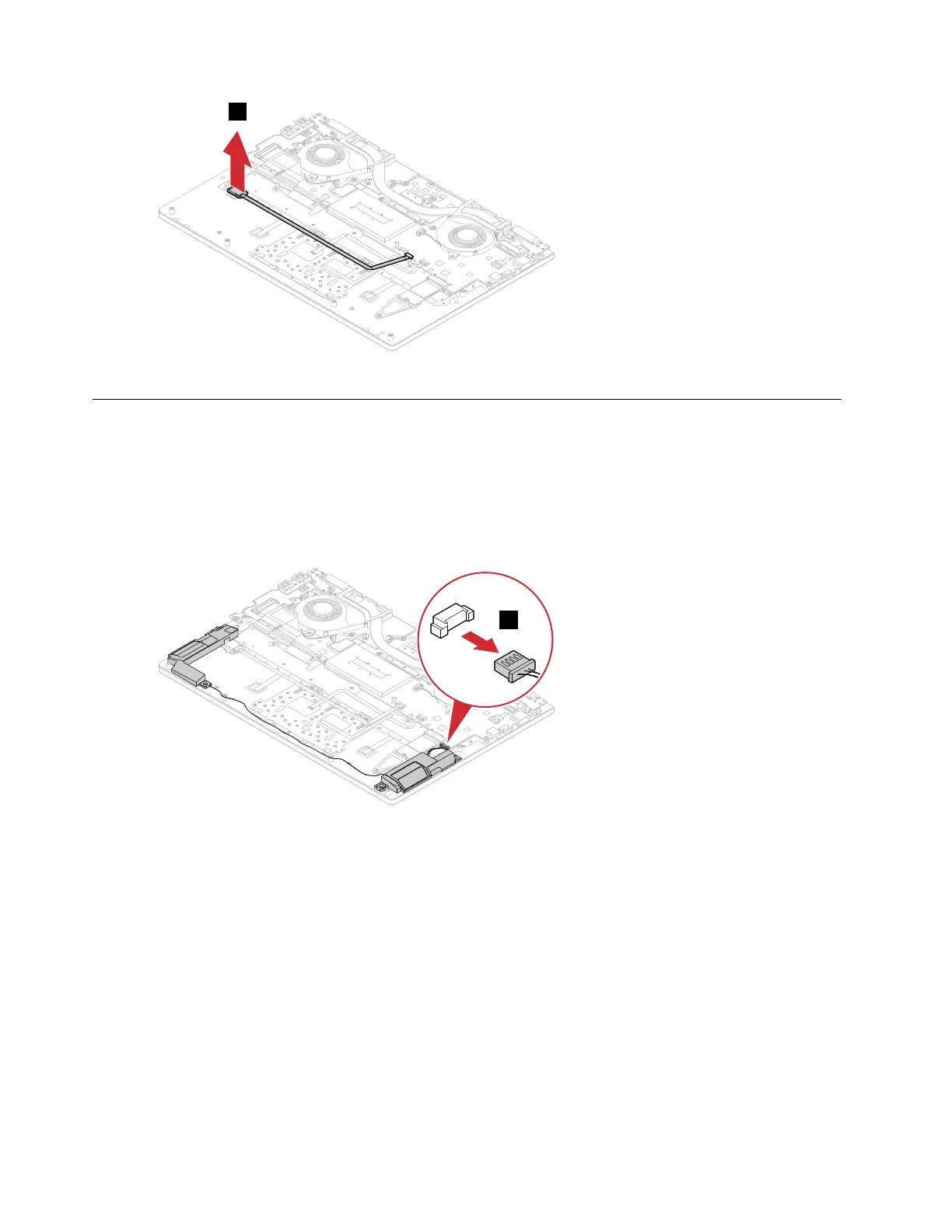

Figure 22. Detach the connector
Step 2. Release the speaker cable from the cable guides. Then, remove the speakers.
40
Hardware Maintenance Manual
