Overview 6

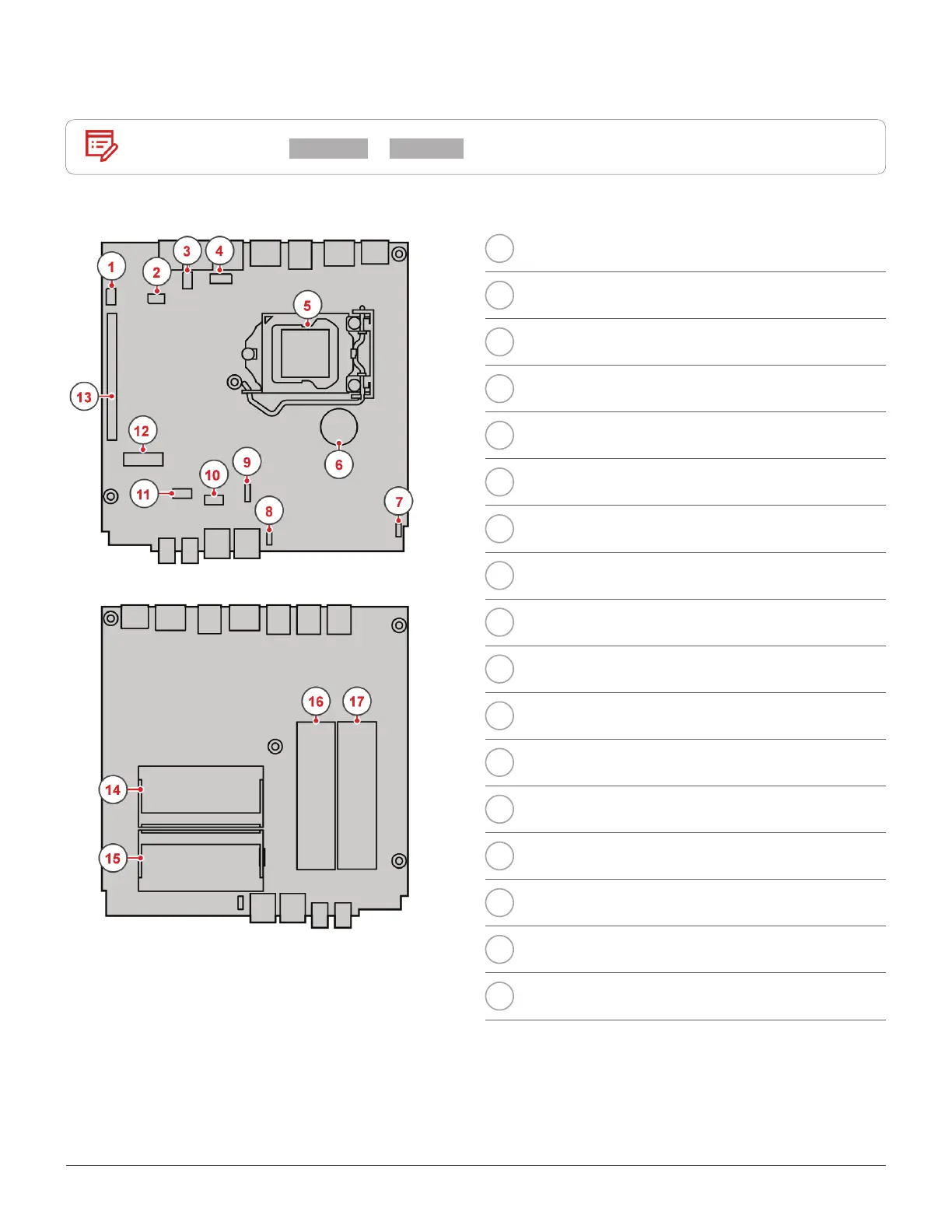

System board
Note
See Front view or Rear view for additional component descriptions.
1
Serial connector 1
2
Serial connector 2
3
USB 3.0 connector
4
Storage drive fan connector
5
Microprocessor socket
6
Coin-cell battery
7
Illuminated red dot connector
8
Internal speaker connector
9
System fan connector
10
Advanced speaker connector
11
SATA storage drive connector
12
M.2 Wi-Fi card slot
13
PCI Express graphics card slot
14
Memory slot (DIMM1)
15
Memory slot (DIMM2)
16
M.2 storage drive slot 2
17
M.2 storage drive slot 1
