Lenovo ThinkPad E480 - Page 61

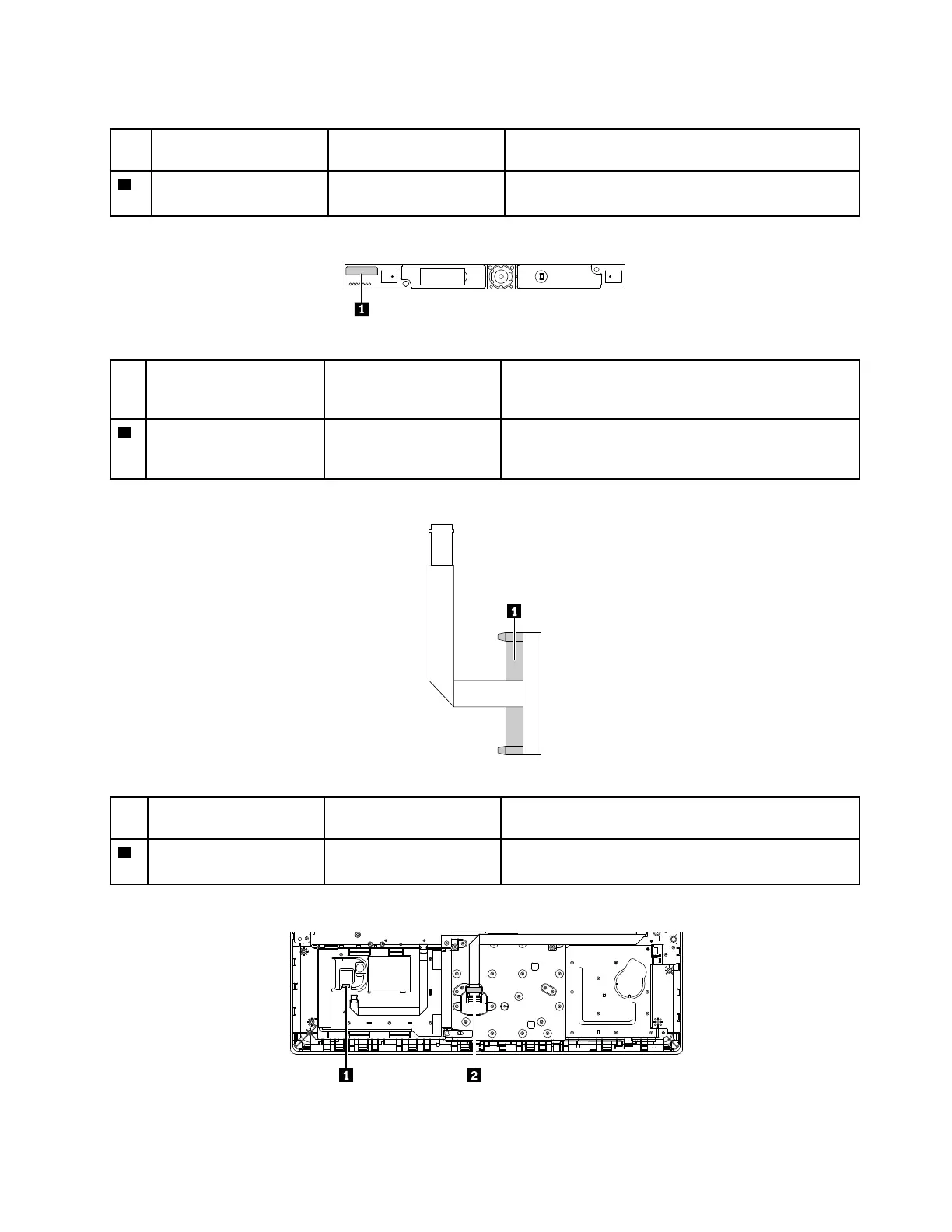

Table 11. LCD panel
Ite-
m
Connector (location)
Internal cable required
Cable connection
1
LCD panel connector
(internal)
LCD cable Connect one end to this connector and the other end
to the system board.
Camera/microphone combo card connector and cable
Table 12. Camera/microphone combo card
It-
e-
m
Connector (location) Internal cable required Cable connection
1
Camera/microphone card
connector (internal)
Cable for camera and
microphone combo card
Connect one end to the LCD connector on the system,
one end to the LCD connector on the LCD panel, and
the other end to this connector.
Hard disk drive connector and cable
Table 13. Hard disk drive
It-
em
Connector (location)
Internal cable required
Cable connection
1
Hard disk drive connector No The hard disk drive connector comes with the cable.
Connect the cable to the system board.
Keyboard bezel assembly connectors and cables
Chapter 7. Locations 55
