Ensure that all the connectors are attached firmly.
2040 Integrated camera and microphone combo card
For access, remove these FRUs in order:
• “1160 Keyboard bezel assembly and LCD unit” on page 78
• “2010 LCD bezel assembly” on page 83
• “2020 LCD panel” on page 84
• “2030 Hinge kit” on page 85

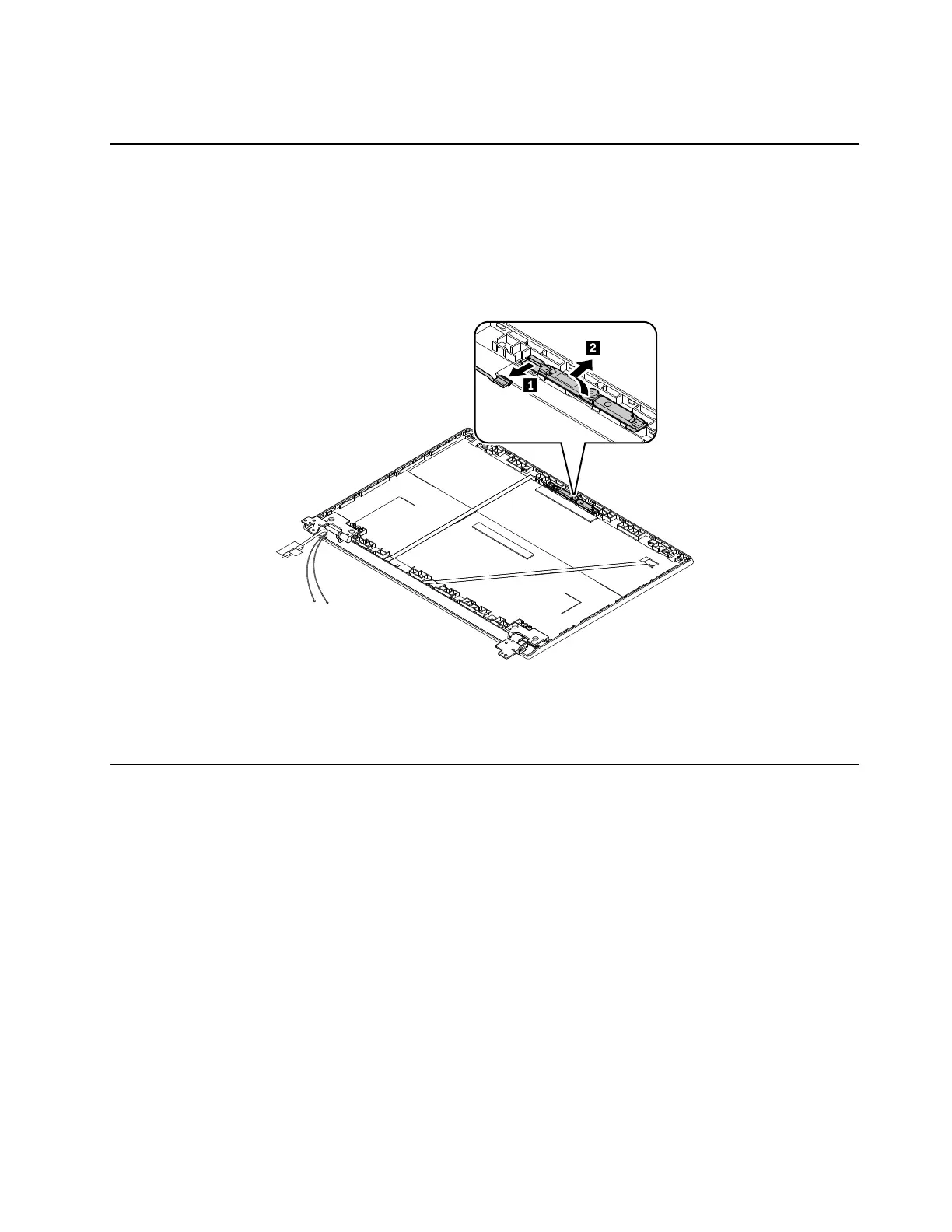

Removal steps of the integrated camera and microphone combo card
When installing:
Ensure that the connector is attached firmly.
2050 LED and camera cable assembly
For access, remove these FRUs in order:
• “1160 Keyboard bezel assembly and LCD unit” on page 78
• “2010 LCD bezel assembly” on page 83
• “2020 LCD panel” on page 84
• “2030 Hinge kit” on page 85
• “2040 Integrated camera and microphone combo card” on page 87
Chapter 9. Removing or replacing a FRU 87
