Step Screw (quantity) Color Torque
5
M2 × 2.5 mm, flat-head, nylon-coated (1) Silver 0.181 Nm
(1.85 kgf-cm)
When installing:
Ensure that the screws are installed firmly.
1090 Speaker assembly
For access, remove this FRU:
• “1030 Base cover assembly” on page 65

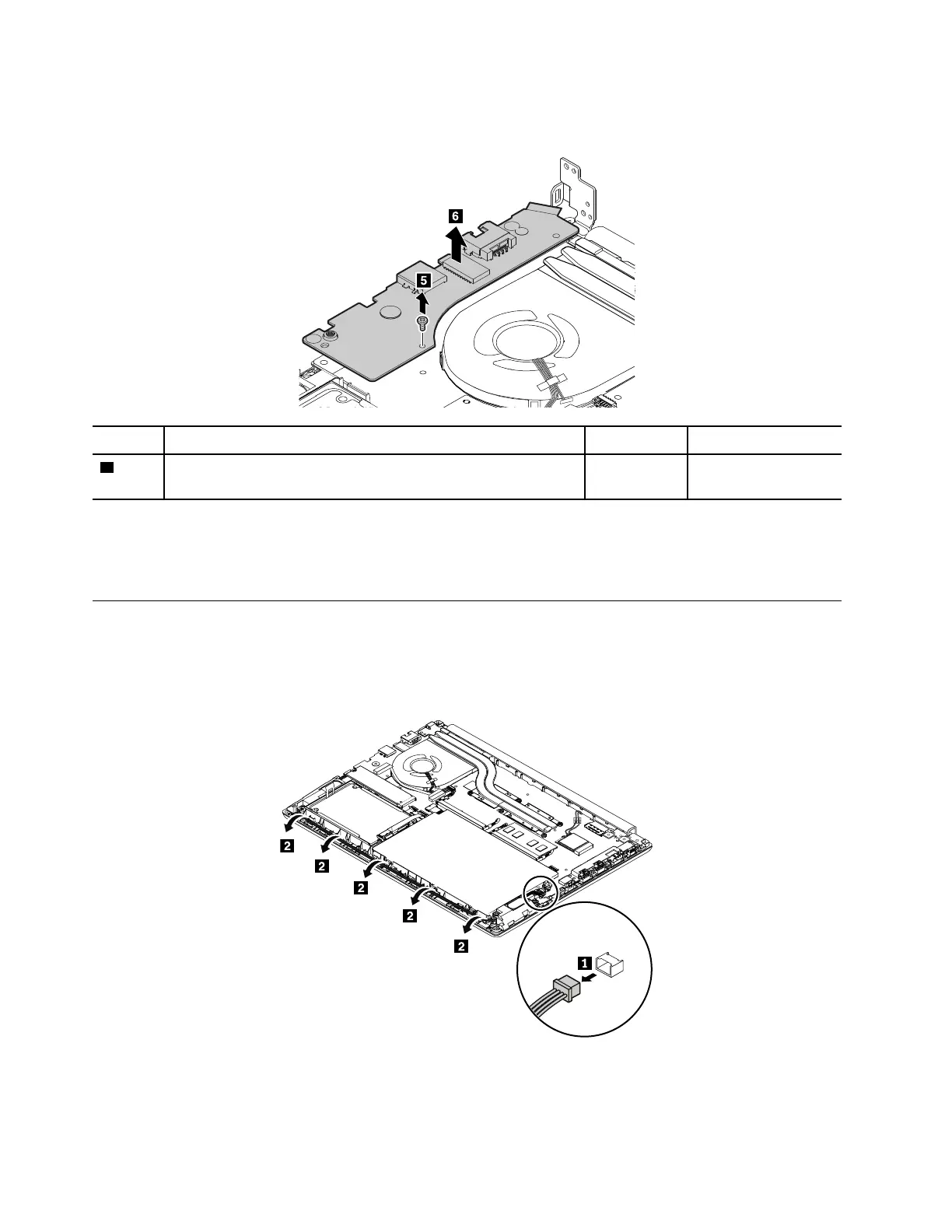

Removal steps of the speaker assembly
72 E480, E485, and R480 Hardware Maintenance Manual
