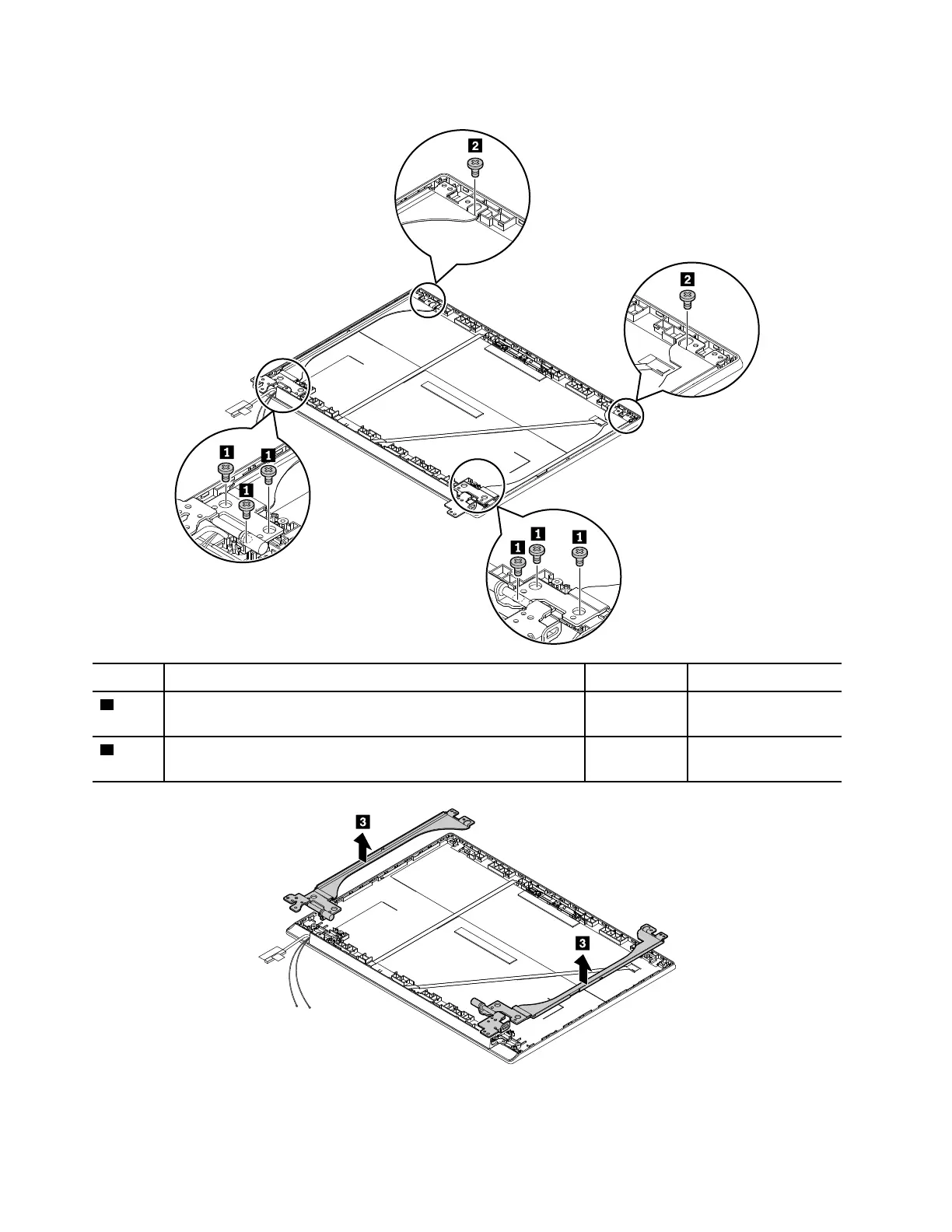

Removal steps of the long hinge kit
Step Screw (quantity) Color
Torque
1
M2.5 × 2.5 mm, flat-head, nylon-coated (6)
Black 0.294 Nm
(3.0 kgf-cm)
2
M2 × 2.5 mm, flat-head, nylon-coated (2) Silver 0.181 Nm
(1.85 kgf-cm)
When you install the hinge kit:
86
E480, E485, and R480 Hardware Maintenance Manual
