8.Presstheretainingclipinthedirectionasshownandslidetheopticaldrivedummytothefrontofthe
serveratthesametime.Then,removetheopticaldrivedummyoutofthedrivecage.
Note:Toshowthemainpartsclearly,notallcomponentsareillustratedinthefollowingfigures.

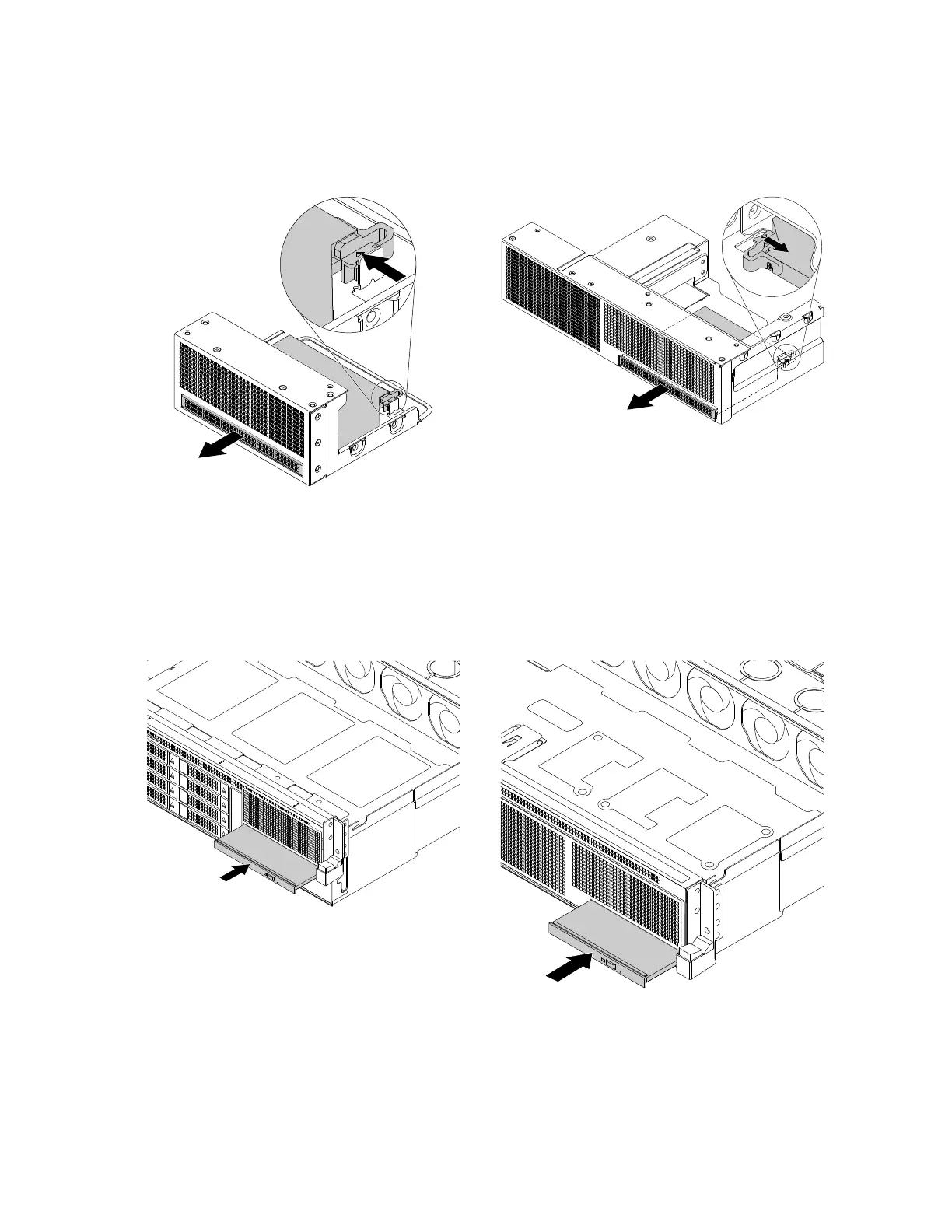

Figure146.Removingtheopticaldrivedummy
9.Touchthestatic-protectivepackagethatcontainstheopticaldrivetoanyunpaintedsurfaceonthe
outsideoftheserver.Then,taketheopticaldriveoutofthepackage.
10.Slidethenewopticaldriveintotheopticaldrivebayfromthefrontuntilitsnapsintoposition.
Figure147.Installingtheopticaldrive
