13.Alignthemountingstudonthesystemboardwiththecorrespondingholeintherisercardbracket.Align
therearoftherisercardassemblywiththecorrespondingrailguidesintherearofthechassis.Then,
carefullypresstherisercardassemblystraightdownintothechassisuntilitisfullyseated.
Note:CarefullyfittheinstalledPCIecardsintothechassisandproperlyrouteanycablesfromthecards.

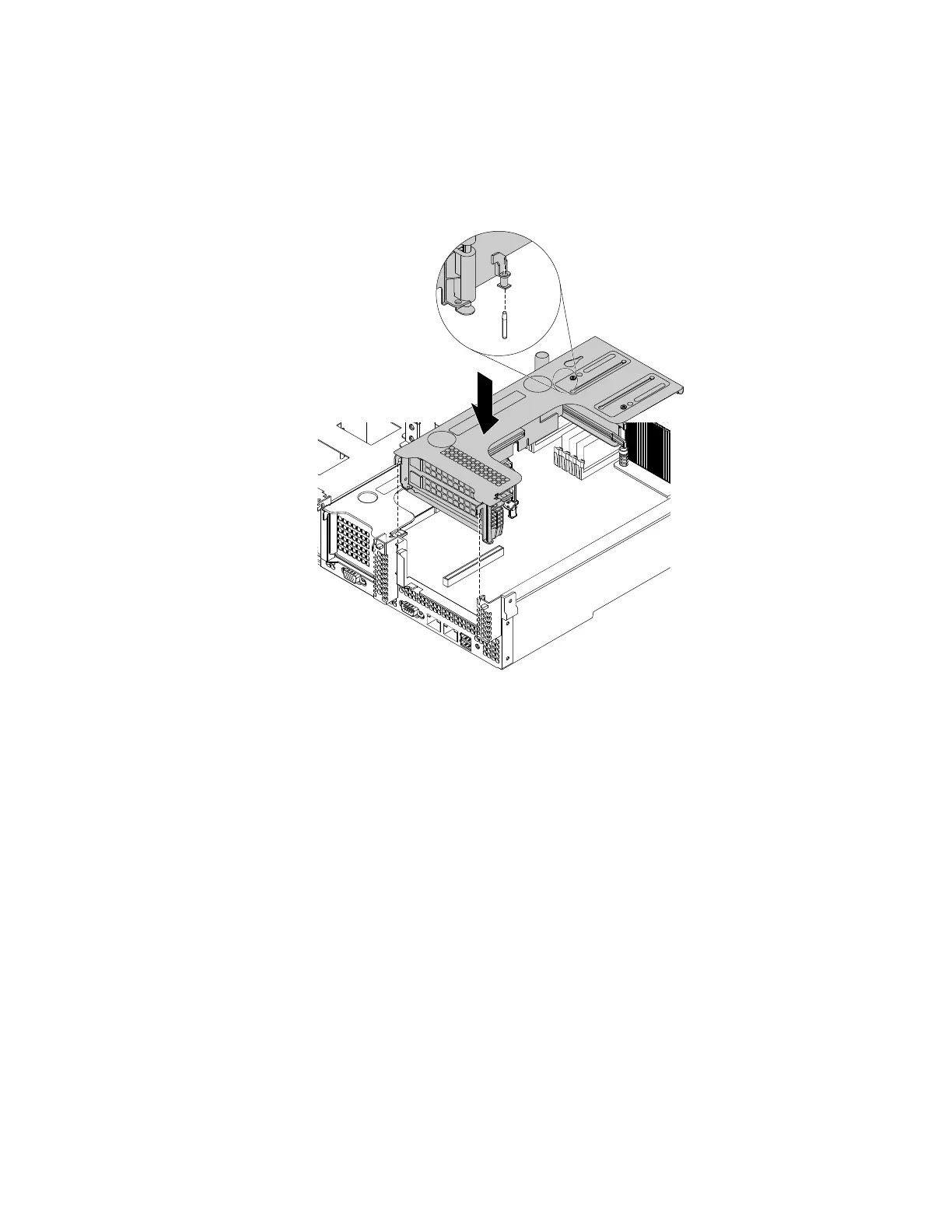

Figure50.Installingtherisercardassembly
Chapter6.Replacinghardware85
