5.Pressthereleasebutton1toreleasetheharddiskdrivecageandthenlifttheharddiskdrivecage
outofthechassis.

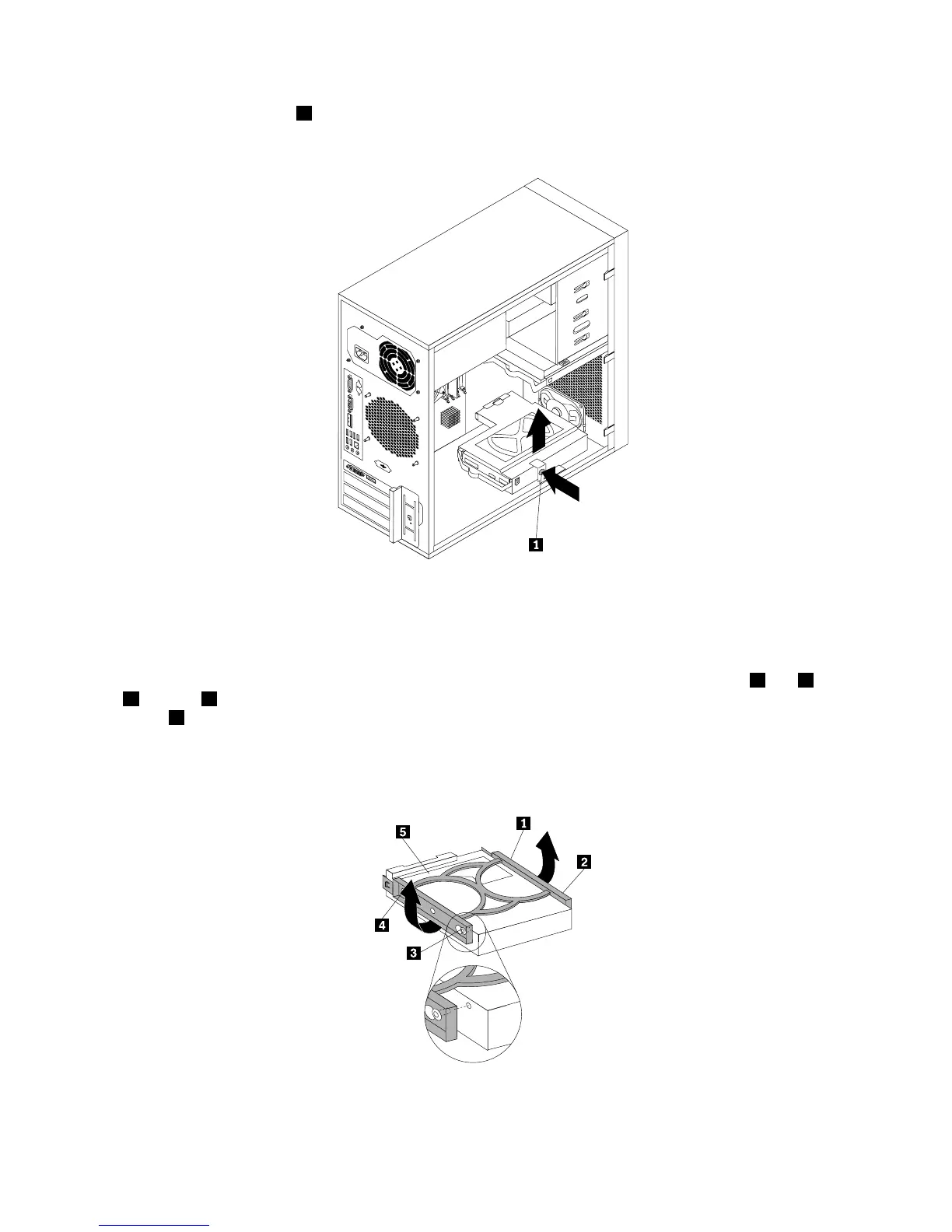

Figure24.Removingthesecondaryharddiskdrive
6.Pullonthebluehandletoreleaseandremovetheharddiskdrivefromtheharddiskdrivecage.
7.Flexthesidesofthebluebrackettoremovetheharddiskdrivefromthebracket.
8.Toinstallthesecondaryharddiskdrive,exthesidesofthebracketproperlyandalignpin1,pin2,pin
3,andpin4onthebracketwiththecorrespondingholesintheharddiskdrive.Donottouchthecircuit
board5onthebottomoftheharddiskdrive.
Note:Ifyouareinstallinga2.5-inchharddiskdrive,installtheharddiskdriveintoa2.5-inchto3.5-inch
harddiskdrivetrayrstandtheninstallthetrayintothebluebracket.
Figure25.Installingtheharddiskdriveintothebracket
34ThinkServerTS130UserGuide
