9.Slidethenewharddiskdrivewiththebluebracketintothesecondaryharddiskdrivecageuntil
itsnapsintoposition.
10.Slidetheharddiskdrivecagewiththenewharddiskdriveintothechassisuntilitisdirectlyunderneath
themetaltab1.

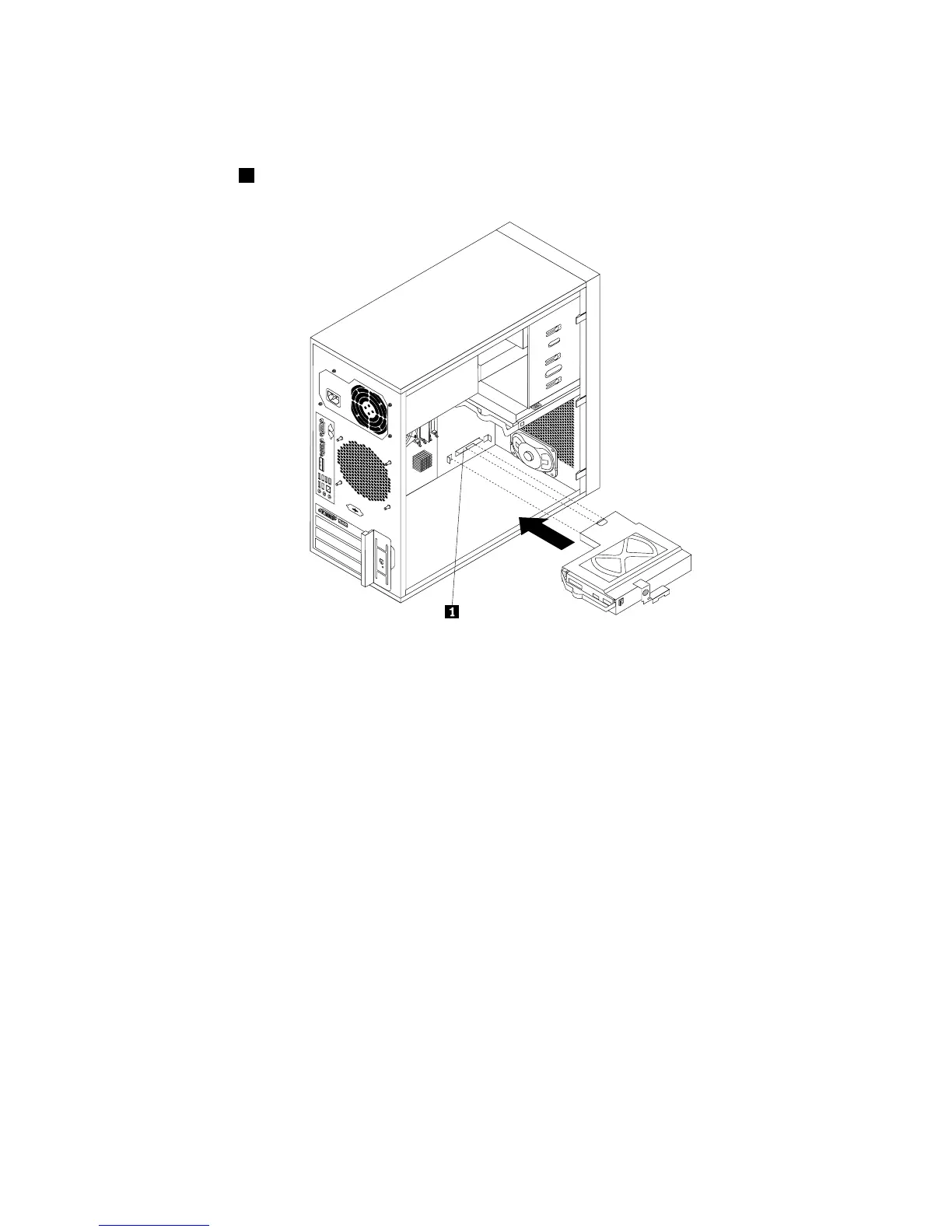

Figure26.Installingthesecondaryharddiskdrive
Chapter5.Installing,removing,orreplacinghardware35
