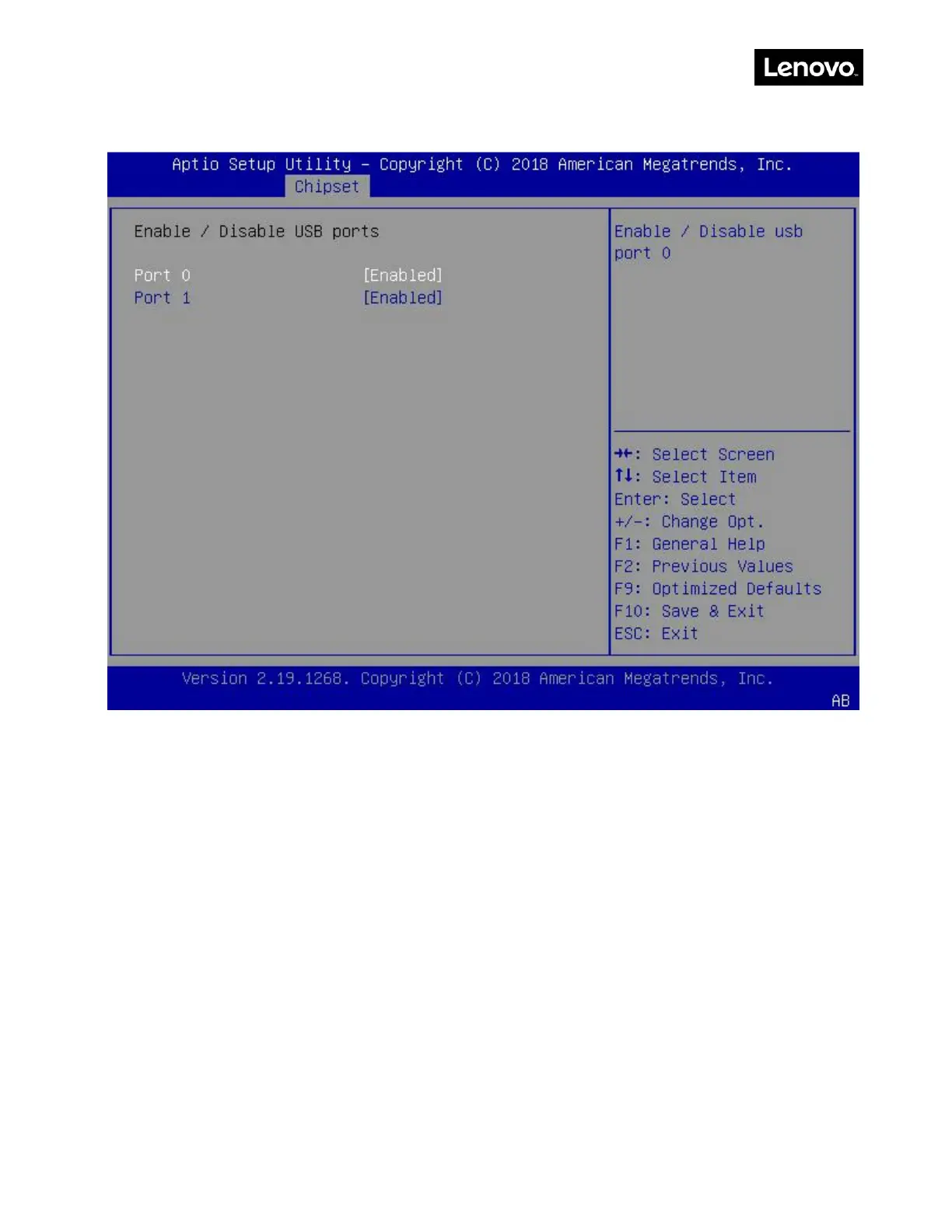

3.5.6 XHCI Controller Configuration

 Port 0: allows to enable/disable the USB port 0.

 Port 1: allows to enable/disable the USB port 1.
