7. Reinstall all removed parts. Then, reconnect the power cord and all disconnected cables to the
computer.
M.2 solid-state drive bracket
Prerequisite
Before you start, read Appendix A “Important safety information” on page 79 and print the following
instructions.
Replacement procedure
1. Remove the computer cover. See “Computer cover” on page 42.
2. Remove the front bezel. See “Front bezel” on page 43.
3. Pivot the drive bay assembly upward. See “Drive bay assembly” on page 49.
4. Remove the M.2 solid-state drive. See “M.2 solid-state drive” on page 65.

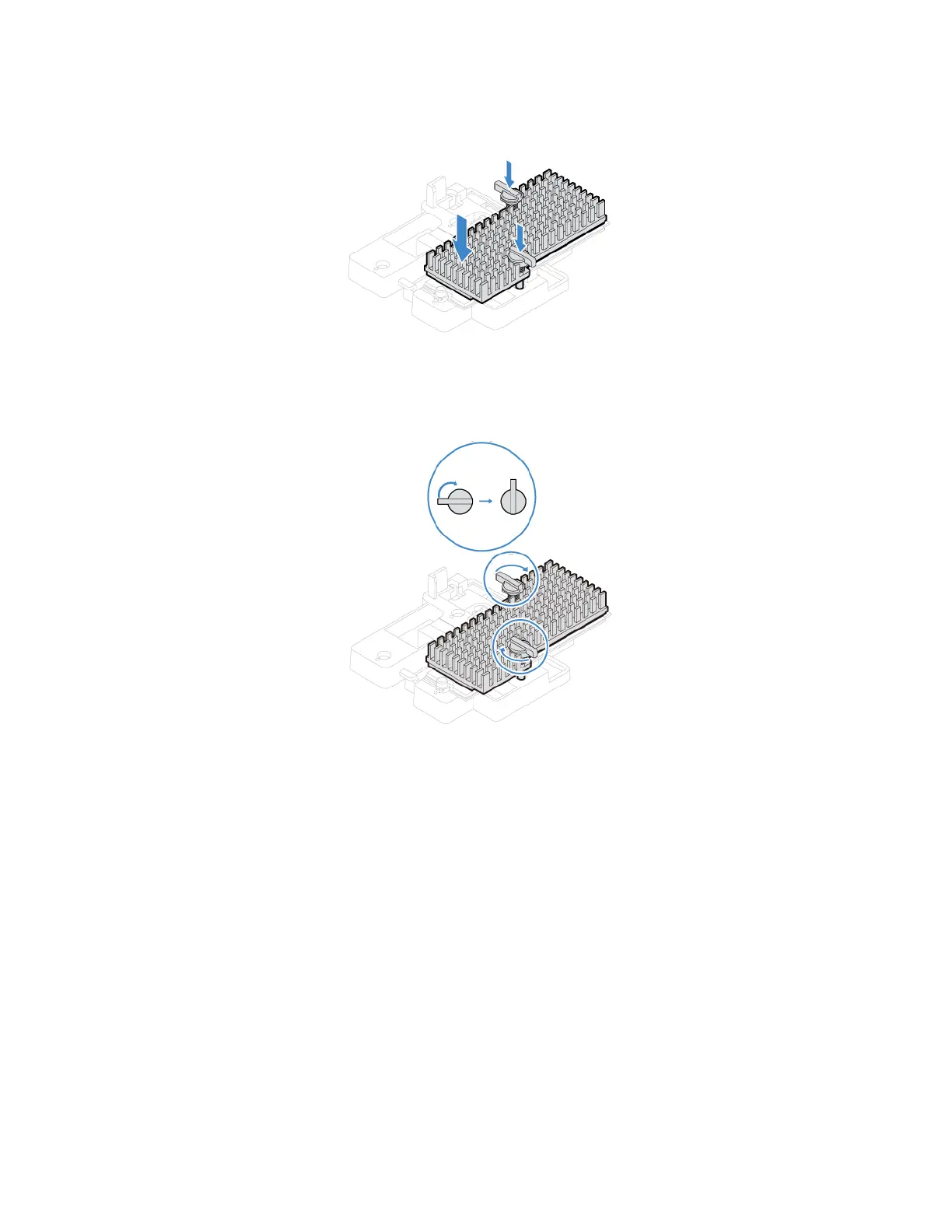

5. Remove the M.2 solid-state drive bracket.
70
Lenovo V55t-15API User Guide
