Information SET-01 87
DIGITAL plus
You have to open the LV101 up to set the track voltage. On the
printed circuit board you will find 4 switches. Depending on the
position of the 4 switches there is a different starting voltage for the
terminals J and K. You will find the positions of the switches needed
for each particular voltage printed on the LV101circuit board and in
the following Table. The bold line is the factory default DCC rack
voltage.
In order to reach the desired starting voltage, you have to use a
transformer whose starting voltage is as high as the desired track-
voltage. But do not overdo it: the voltage of the transformer should
be adjusted as closely as possible to the desired track-voltage. A
transformer voltage which is too high only produces an unnecessary
loss of heat in the power station, which would lead to a premature
switching off before the maximum amperage is reached.

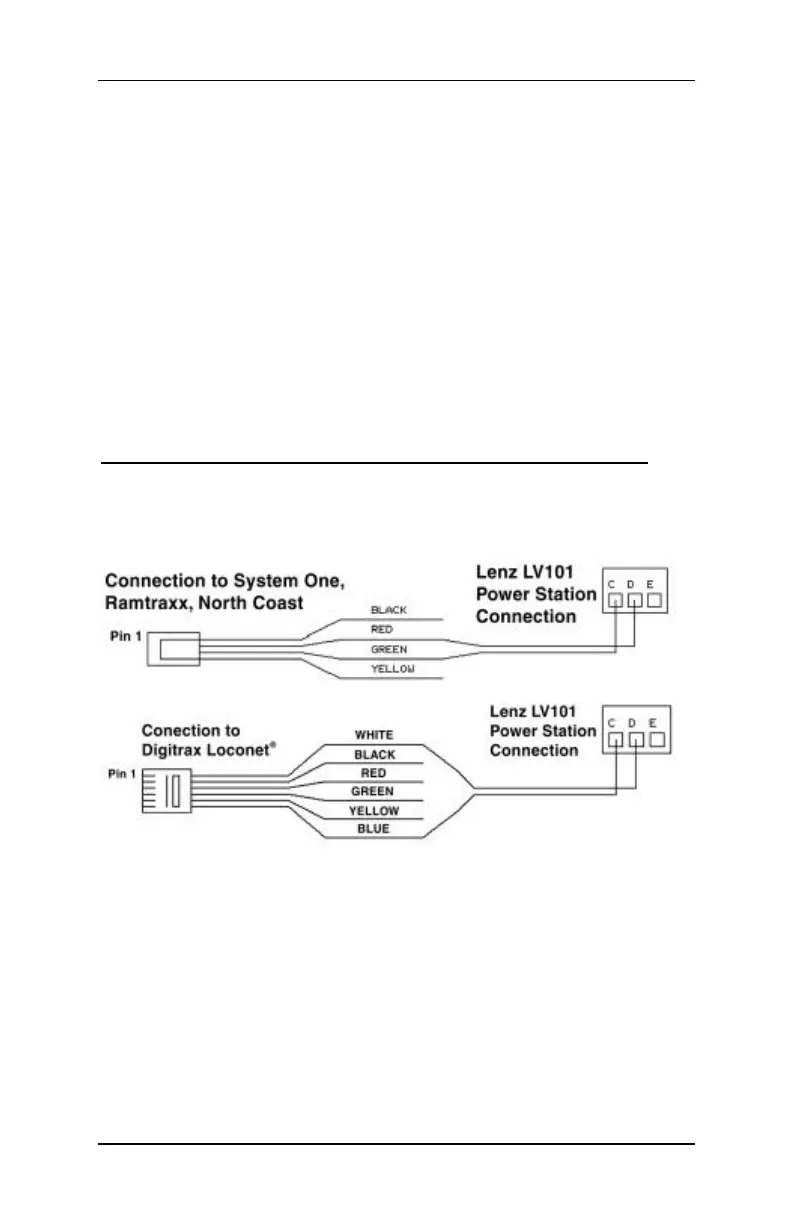

17.5.6 Connecting the LV101 to other DCC power stations
The LV101 has been designed to be used with a broad range of
NMRA DCC systems. Following are diagrams to assist you in
connecting the LV101.
