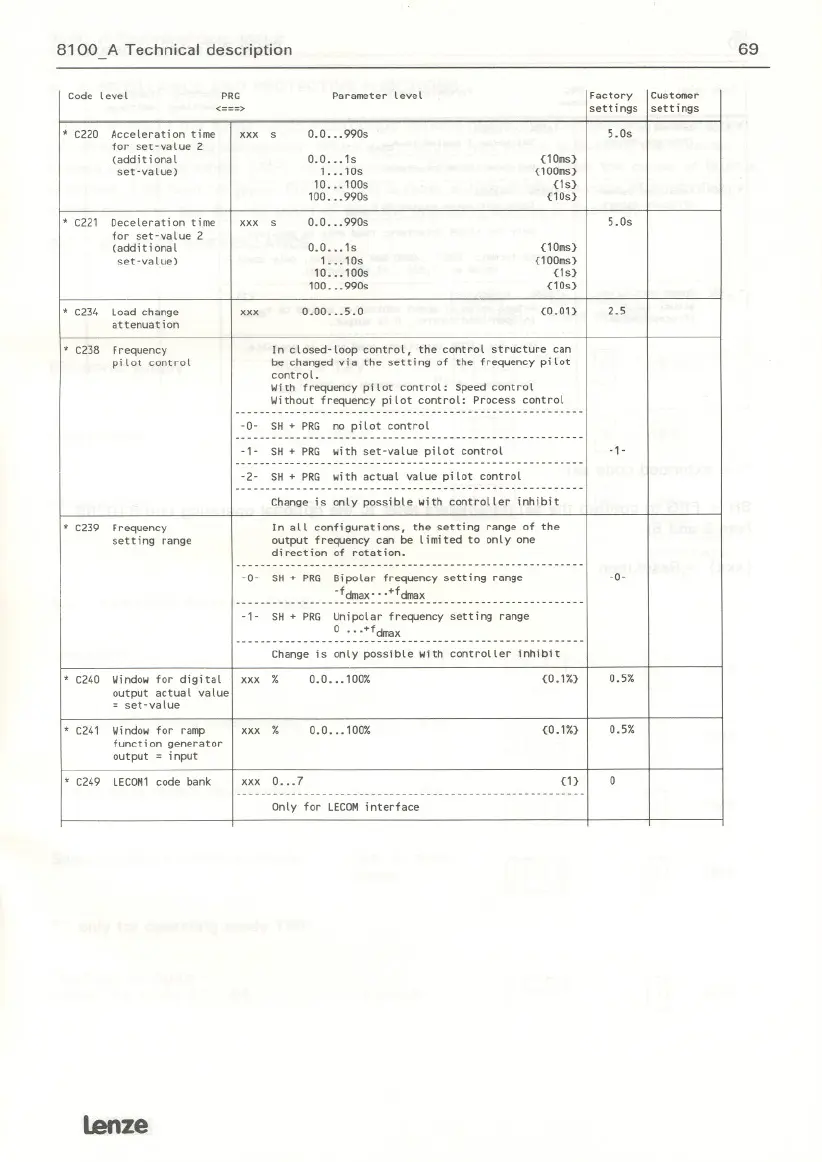

Codelevel PRG
Parameter level
Factory
Customer
<===>
settings settings
. C220Acceleration time xxx
s
0.0. ..990s
5.0s
tor set-value 2
(additional
0.0.. .1s {1Oms}
set-value)
1.. .10s {10Oms}
10...100s
{1s}
100...990s
{10s}
.C221 Deceleration time xxx s 0.0...990s
5.0s
for set-value 2
(additional 0.0. ..1s {10ms)
set-value)
1. ..10s {1oOms}
10.. .100s {1s}
100.. .990s
{10s}
.C234
Loadchange
xxx 0.00...5.0 {0.01}
2.5
attenuation
.C238
Frequency In closed-loop cantral, the control structure can
pi lot cantral be changed via the setting of the frequency pi lot
cantral..
With frequency pi lot cantral: Speed cantral
without frequency pilot cantral: Process cantral
---------------------------------------------------------
.0.
SH+ PRG
no pilot cantral
---------------------------------------------------------
-1- SH + PRG
with set-value pilot control
.1-
---------------------------------------------------------
-2-
SH+ PRG
with actual value pilot control
---------------------------------------------------------
Changeis only poss;ble with controller inhibit
.C239
Frequency
In all configurations, the setting range of the
sett ing range output frequency can be 1imited to only one
direction of rotation.
---------------------------------------------------------
-0. SH + PRG
Bipolar frequencysetting range
-0.
-fänax.. .+fänax
---------------------------------------------------------
-1- SH+ PRG
Unipolar frequencysetting range
o ...+fänax
---------------------------------------------------------
Changeis only possible with controller inhibit
.C240
Windowfor digital
xxx X 0.0.. .100X {0.1X}
0.5X
output actual value
= set-value
.C241
Windowfor rall1>
xxx X 0.0.. .100X {0.1X}
0.5X
function generator
output
= input
.C249
LECOH1code bank
xxx O...7 {1}
0
---------------------------------------------------------
Only for LECOMinterface
