Lenze 8200 vector series User Manual

Wiring accord ing to EMC
Power connections
16
l
EDBEMV82EV EN 3.0

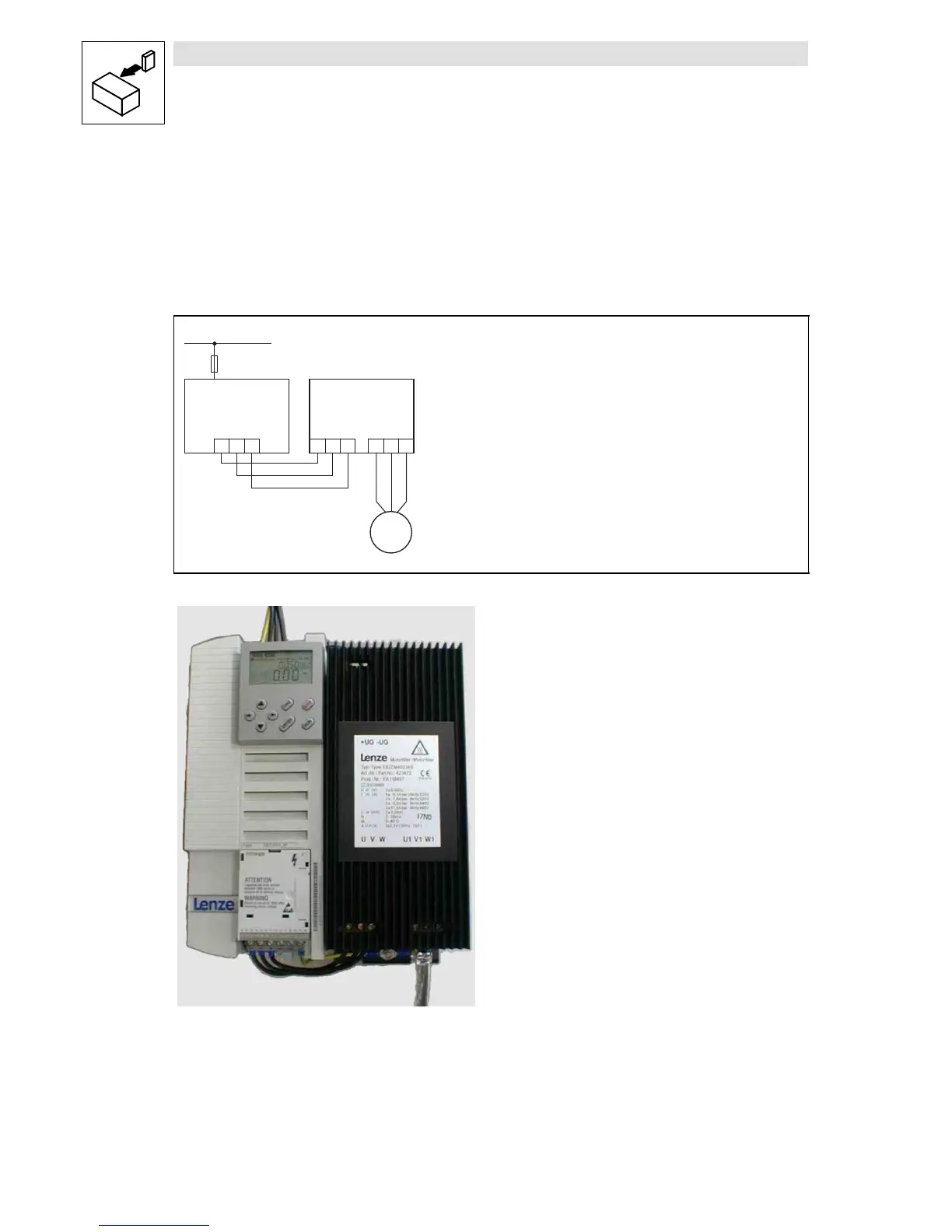

Wiring of the motor filter 230 V
z Install the motor filter next to the controller in such a way that the connecting cable is as short
as possible:
– up to 200 mm the cable does not have to be shielded.
– from 200 mm a shielded cable must be used.
z The cable from the motor filter to the motor is subject to the same rules as for the motor
cable.
U
V
W
U1
V1
W1
U
V
W
M
3~
8200 vector
E82ZMxxx32B
1/N/PE AC 230 V
(2) 3/PE AC 230 V
Fig. 4 Wiring of the motor filter 230 V
Fig. 5 Mounting example of frequency inverter with motor filter

Lenze 8200 vector series Specifications

General

Category	DC Drives
Overload capacity	150% for 60 seconds
Protection class	IP20
Mains voltage	380V to 480V AC
Control method	Vector control
Communication options	CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Humidity	≤ 95% relative humidity, non-condensing
Series	8200 vector
