Lenze 8200 vector series User Manual

Preface and general information
3
l
EDBEMV82EV EN 3.0








!
"
Mains choke
RFI filter
8200 vector
Control connection
Brake resistor
Motor interference
suppression module
Motor filter
Motor cable
Motor/geared motor
Communication
modules
DC-bus system
1
2
3
4
5
6
7
9
8
:
0

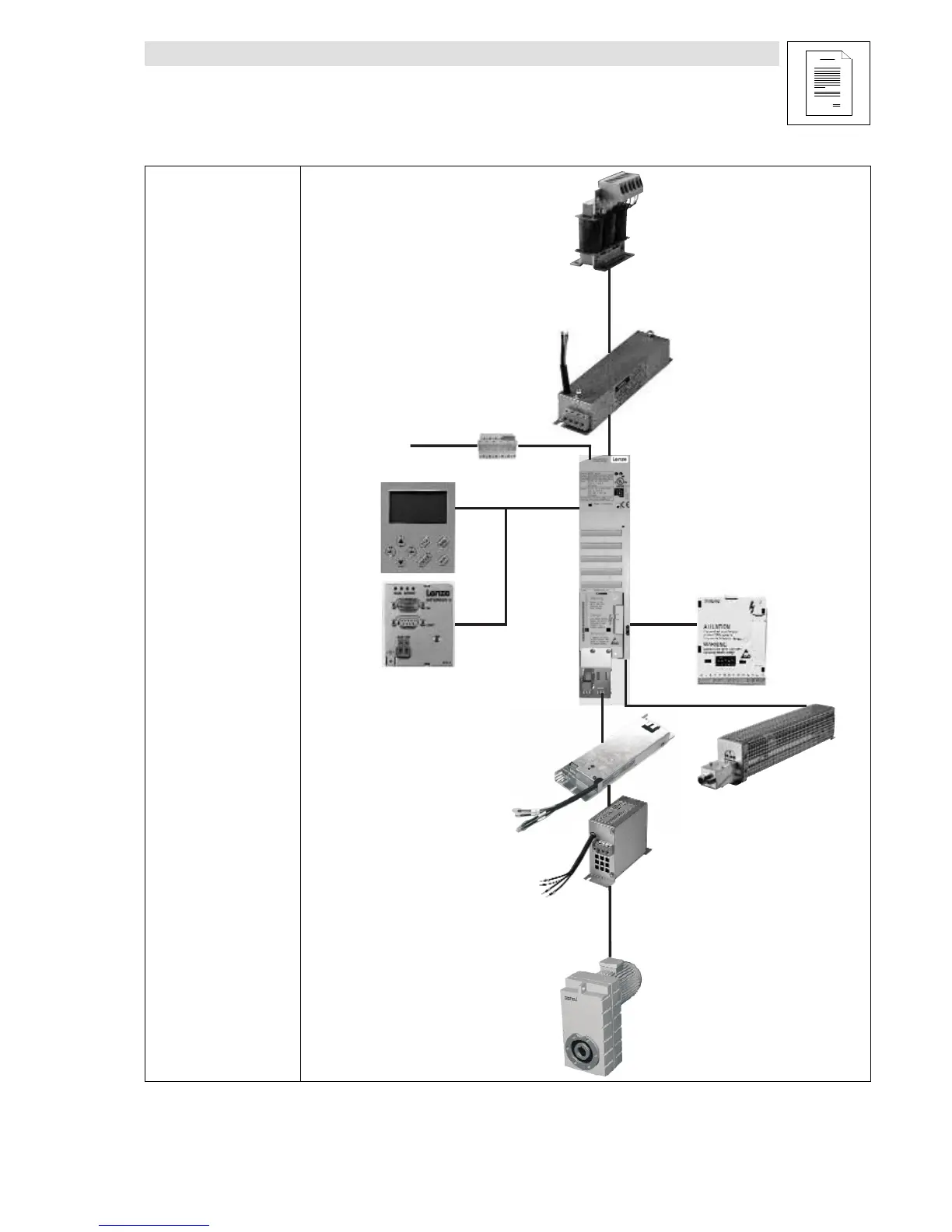

Fig. 1 Components of the drive system

Lenze 8200 vector series Specifications

General

Category	DC Drives
Overload capacity	150% for 60 seconds
Protection class	IP20
Mains voltage	380V to 480V AC
Control method	Vector control
Communication options	CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Humidity	≤ 95% relative humidity, non-condensing
Series	8200 vector
