Function library
Configuration of analog and digital setpoints and actual values
7−36
L
EDB82MV752 EN 5.2
) Note!
l C0026, C0027, C0413 and C0414 are identical in all parameter sets.
l For operation with application I/O the setpoint inputs can be adjusted
automatically via C0430, C0431 and C0432:
– Select a setpoint input under C0430.
– Enter the coordinates of two points of the setpoint characteristic under C0431
and C0432.
– The calculated values are entered automatically as offset (C0413) and gain
(C0414).

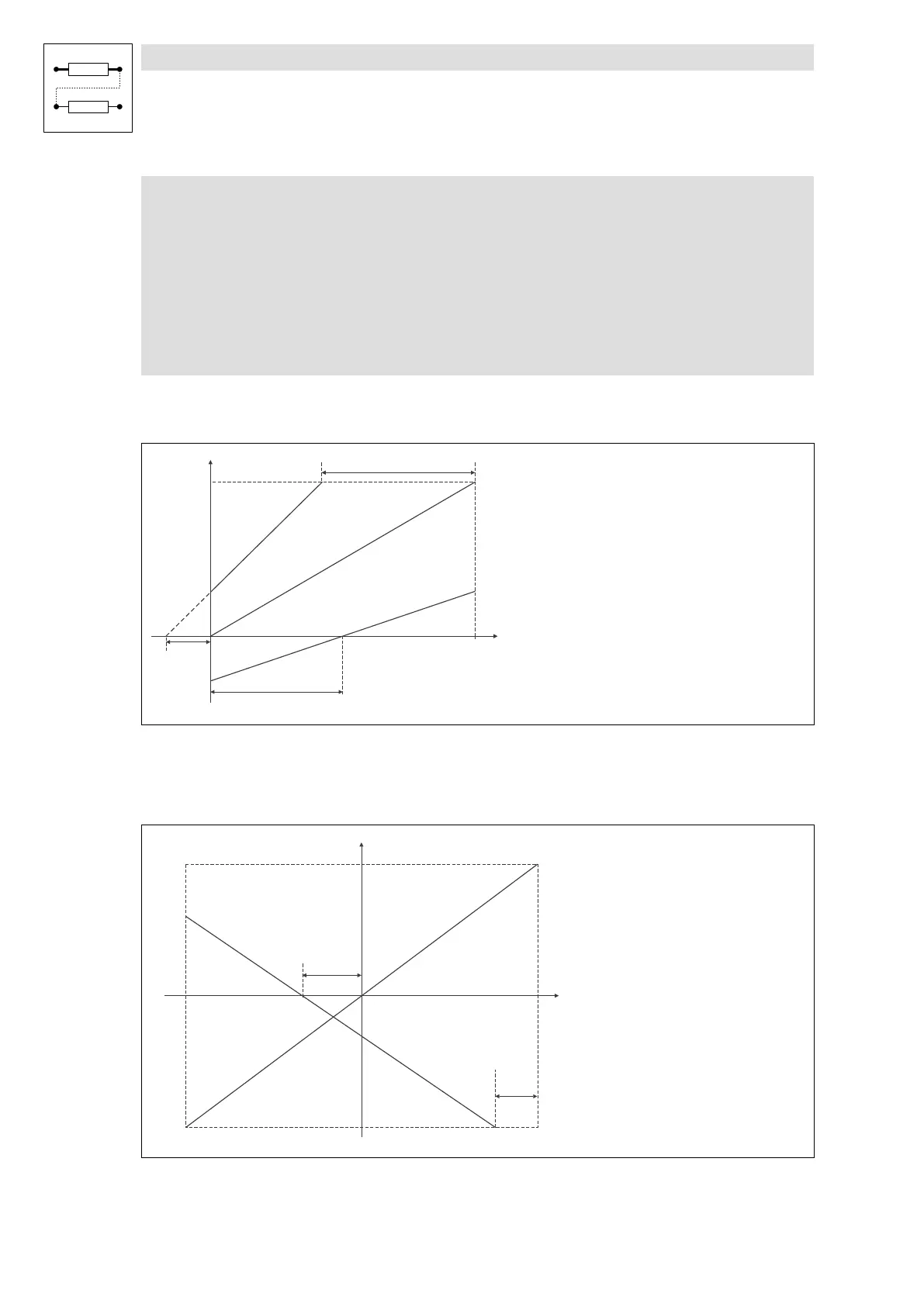

Unipolar setpoint selection
f
C0011
Offset>0%
Deadband
Offset<0%
Offset=0%,
gain = 100 %
Gain > 100 %
Gain < 100 %
5V
10 V
20 mA
10 kHz
0V
0mA
0 kHz
Setpoint
signal
8200vec529
Fig. 7−8 Gain and offset at unipolar setpoint selection
Bipolar setpoint selection
f
C0011
-C0011
Offset>0%
Dead-
band
Offset=0%, gain = 100 %
Gain<0%
10 V
-10 V
Setpoint
signal
8200vec530
Fig. 7−9 Gain and offset at bipolar setpoint selection
