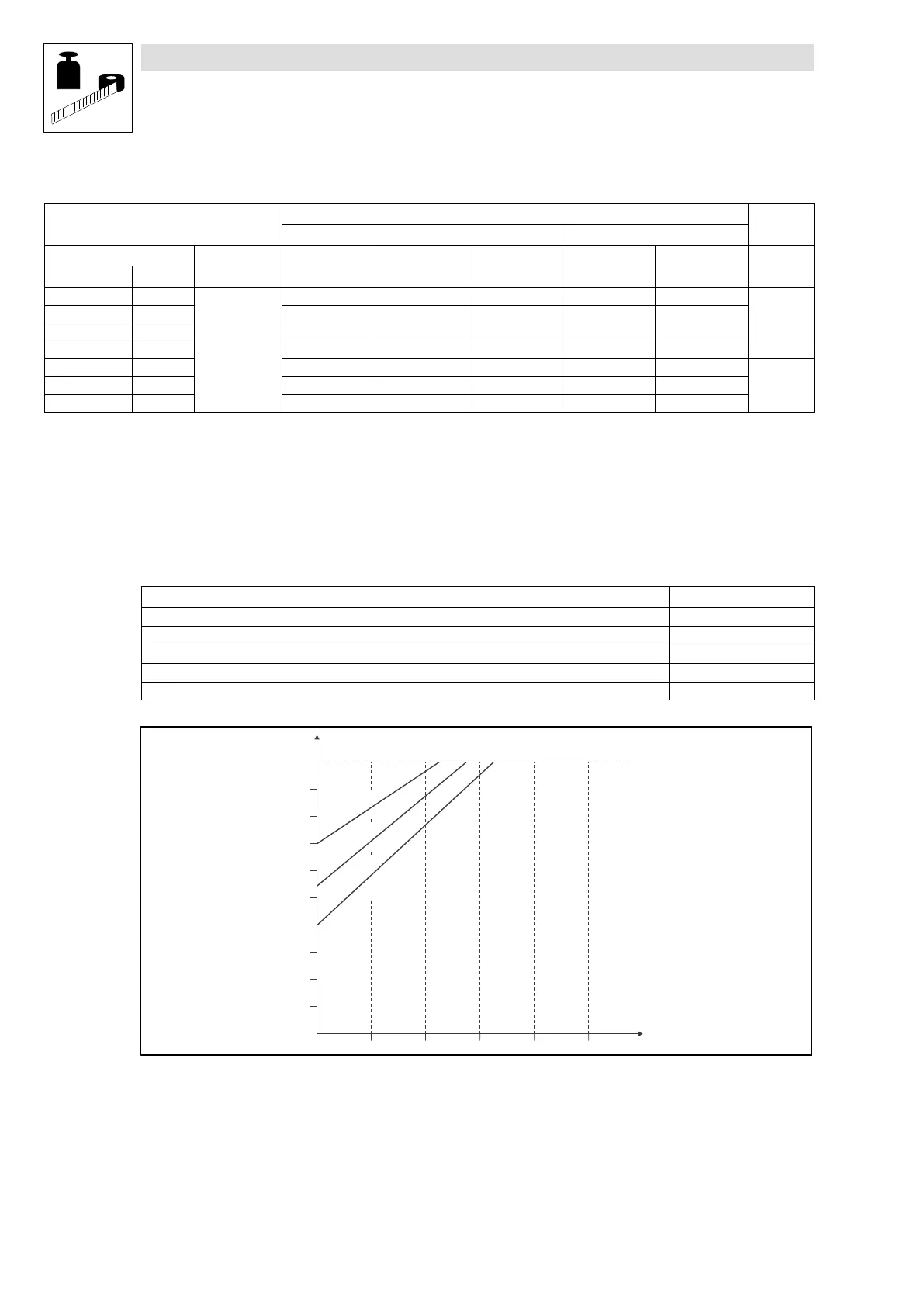

Technical data
Rated data at 400/500 V mains voltage
3−10
L
EDB82MV752 EN 5.2
Fuses and cable cross−sections
8200 motec
Operation with increased rated power
Installation acc. to EN 60204−1 Installation acc. to UL
1)
Type System Fuse Circuit breaker L1, L2, L3, PE Fuse L1, L2, L3, PE FI
[kW] [mm
2
] [AWG]
E82MV551_4B 0.75
3/PE AC
320 ... 440 V;
45 ... 65 Hz
M6 A B6 A 1 5 A 18
 30 mA
2)
E82MV751_4B 1.1
M6 A B6 A 1 5 A 18
E82MV152_4B 2.2
M10 A B10 A 1.5 10 A 16
E82MV222_4B 3.0
M10 A B10 A 1.5 10 A 16
E82MV302_4B 4.0
M16 A B16 A 2.5 15 A 14
 300 mA
2)
E82MV402_4B 5.5
M20 A B20 A 4.0 20 A 12
E82MV552_4B 7.5
M32 A B32 A 6.0 25 A 10
1)
Only use UL−approved cables, fuses, and fuse holders.
UL fuse: voltage 500 ... 600 V, tripping characteristic "H", "K5" or "CC"
2)
Universal−current sensitive earth−leakage circuit breaker
Observe national and regional regulations
Current derating
Depending on the operating conditions and the use of the 8200 motec, the types E82MV302_4B to
EMV552_4B may require a reduction of the rated output current in continuous operation:
8200 motec mounted on... Current derating
...Lenze motor/forced ventilated geared motor not required
...Lenze motor/self−ventilated geared motor see illustration below
...Lenze motor/self−ventilated geared motor with E82ZMV supplementary module not required
...no Lenze motor/geared motor  E82ZMV supplementary module is always required not required
...the wall (wall mounting)  E82ZMV supplementary module is always required not required
0,1
10
20 30 40 50
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
1
f [Hz]
I/I
N
E
8
2
M
V
3
0
2
_
4
B
E
8
2
M
V
4
0
2
_
4
B
E
8
2
M
V
5
5
2
_
4
B
Fig. 3−2 Reduction of the rated output current in continuous operation at 40°C ambient temperature and a switching frequency of
4 kHz
I Reduced output current 8200 motec
I
N
Rated output current 8200 motec at a switching frequency of 4 kHz
f Output frequency 8200 motec [Hz]
