Product description
Connections and interfaces
3
l
14
EDS82ZAFVCxxx EN 4.0

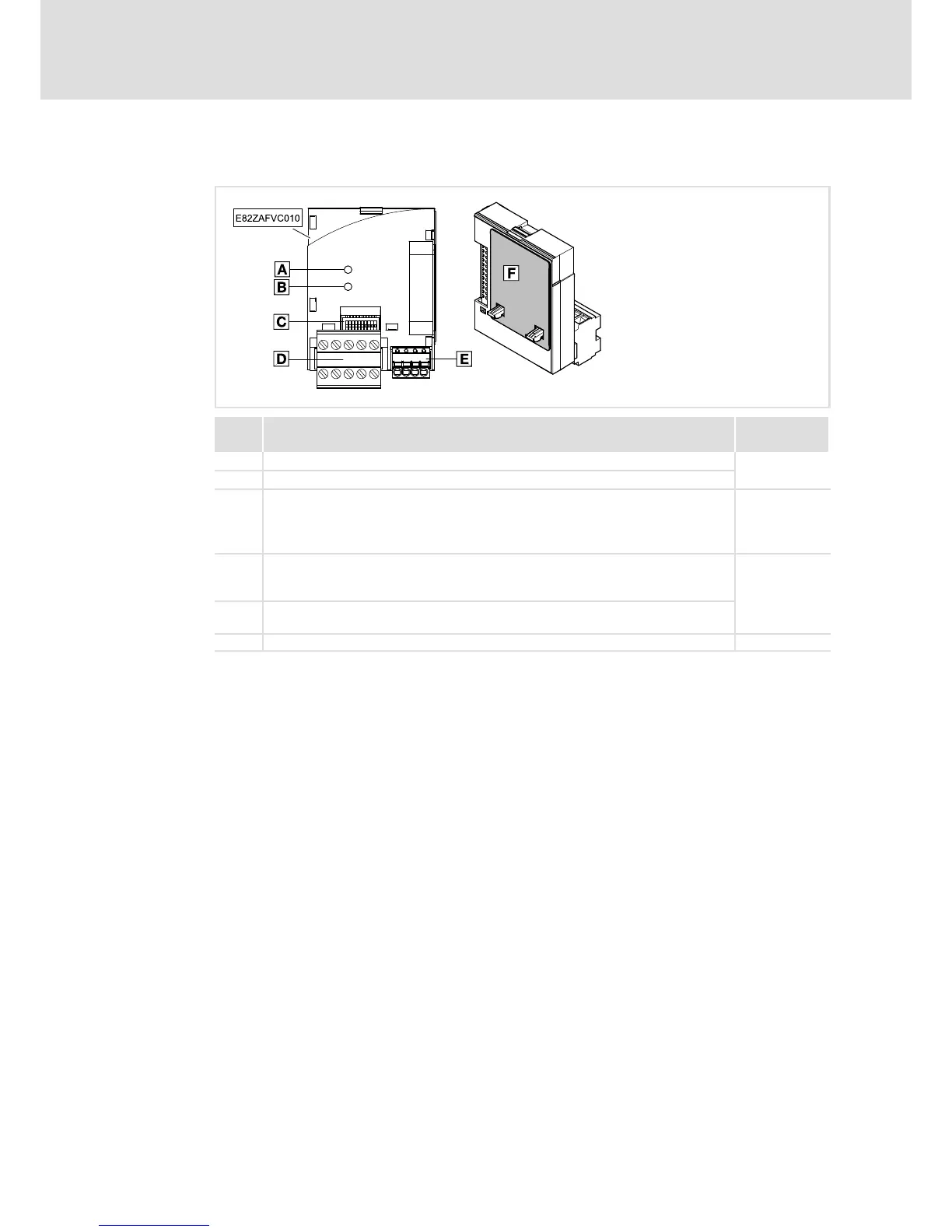

Function module E82ZAFVC010
E82ZAFD101A
Pos. Description Detailed
information
0
Status display (two−colour green / red), connection to the standard device
^ 34
1
Status display (two−colour green / red), connection to the bus
2
DIP switches for setting
l Node address ("Address")
l Baud rate ("Bd")
l Compatibility with Lenze function module E82ZAFD (DeviceNet)
^ 31
3
Plug connector with double screw connection X3.1, connections for
l DeviceNet
l External voltage supply (via DeviceNet cable)
^ 27
4
Plug connector with spring connection X3.2, connections for
l Controller inhibit (CINH)
5
Nameplate ^ 11
