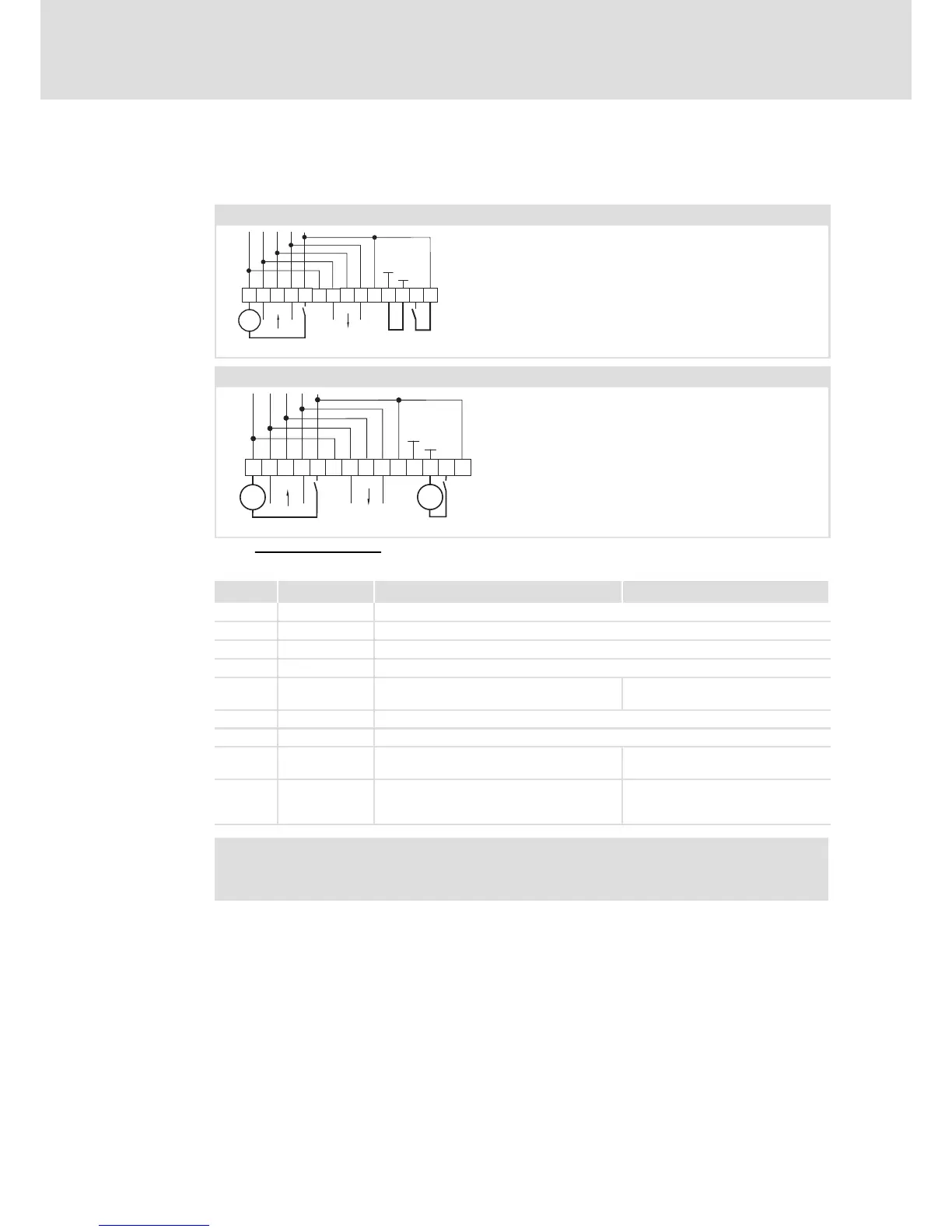

5.2.4 Terminal assignment
Function module E82ZAFVC001
Supply of the controller inhibit (CINH) via the internal voltage source (X3/20)
GND1
SH SHCH CH
20
X3
CL
CL
V-
V-
V+ V+
28397
GND2
_
+
E82ZAFD003
Supply of the controller inhibit (CINH) via the external voltage source
GND1
GND2
X3
_
+
SH SHCH CH
20
CL
CL
V-
V-
V+ V+
28397
_
+
E82ZAFD006
Min. wiring required for operation
X3/
Name Function Level
V− Reference potential for external voltage supply
CL CAN−LOW CAN data line (LOW)
SH SHIELD Shield
CH CAN−HIGH CAN data line (HIGH)
V+ External supply voltage Please observe notes concerning
external supply!
7 GND1 Reference potential for X3/20
39 GND2 Reference potential for controller inhibit (CINH) at X3/28
28 CINH Controller inhibit l Start = HIGH (+12 V ... +30 V)
l Stop = LOW (0 ... +3 V)
20 DC voltage supply for internal supply of
controller inhibit (CINH)
+20 V (ref.: GND1)
) Note!
Use the Thin" cable to wire the function module ^ 22.
