Product description
Connections and interfaces
3
l
13
EDS82ZAFVCxxx EN 4.0

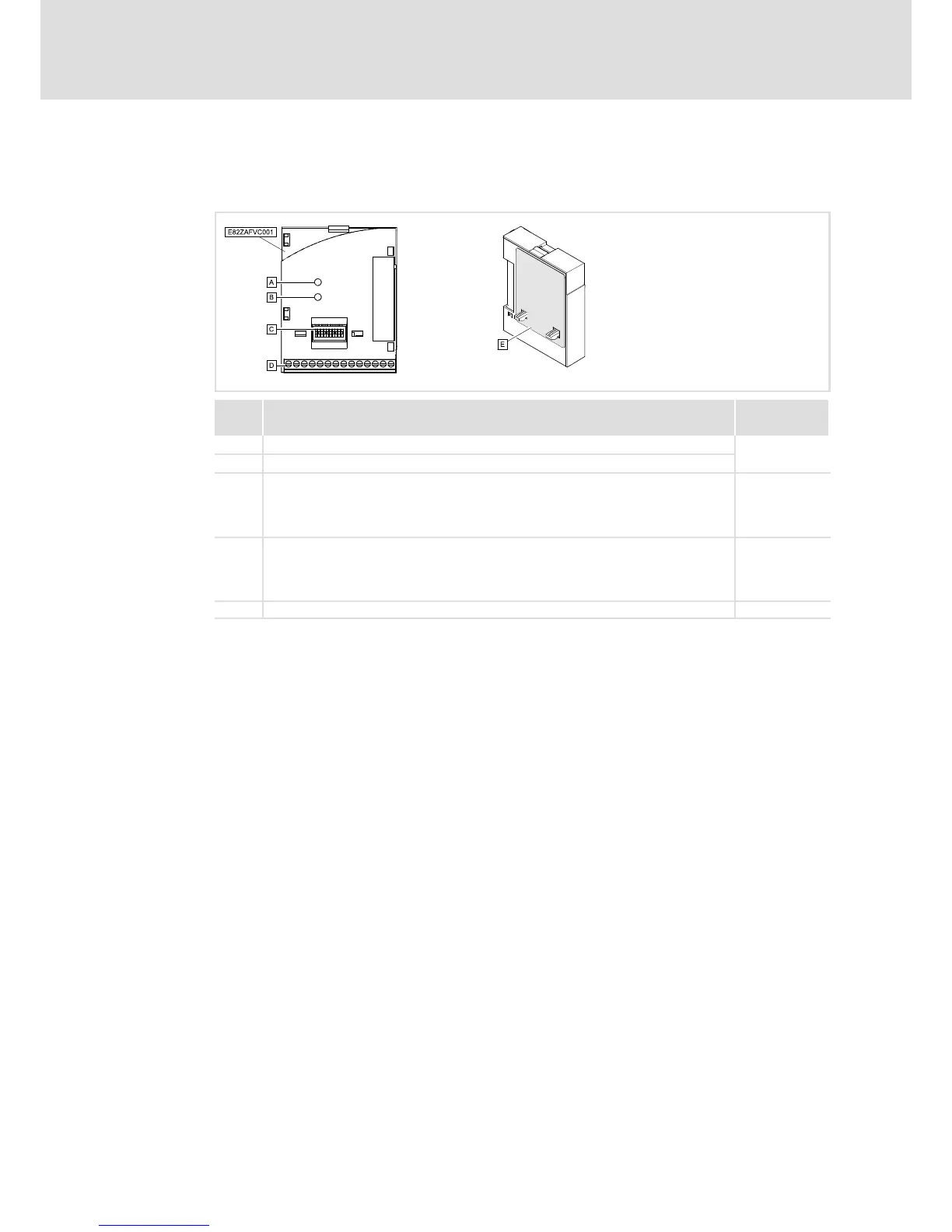

3.4 Connections and interfaces
Function module E82ZAFVC001
E82ZAFV001E
Pos. Description Detailed
information
0
Status display (two−colour green / red), connection to the standard device
^ 34
1
Status display (two−colour green / red), connection to the bus
2
DIP switches for setting
l Node address ("Address")
l Baud rate ("Bd")
l Compatibility with Lenze function module E82ZAFD (DeviceNet)
^ 31
3
Terminal strip X3, connections for
l DeviceNet
l Controller inhibit (CINH)
l External voltage supply (via DeviceNet cable)
^ 25
4
Nameplate ^ 11
