Lenze E82ZAFVC010 - Bus Cable Length; Use of Plug Connectors

Installation
Electrical installation
Bus cable length
5
l
28
EDS82ZAFVCxxx EN 4.0
5.2.6 Bus cable length
Depending on the baud rate and the cable type used (thick cable/thin cable), the following
bus cable lengths are possible:
Baud rate [kbps]
Bus cable lengths [m]
Thick cable Thin cable
125
500
100
250
250
500
100
If both thick and thin cable types are used, the maximum cable lengths can be defined
according to the baud rates as follows:
Baud rate [kbps] Max. bus cable length
125 500 m = L
thick
+ 5 L
thin
250 250 m = L
thick
+ 2.5 L
thin
500 100 m = L
thick
+ L
thin
L
thick
: thick cable length
L
thin
: thin cable length
) Note!
Select a baud rate in dependency of the data volume, cycle time and number
of nodes just high enough to suit your application.
5.2.7 Use of plug connectors
( Stop!
Observe the following to prevent any damage to plug connectors and
contacts:
ƒ Only pug in / unplug the plug connectors when the controller is
disconnected from the mains.
ƒ Wire the plug connectors before plugging them in.
ƒ Unused plug connectors must also be plugged in.

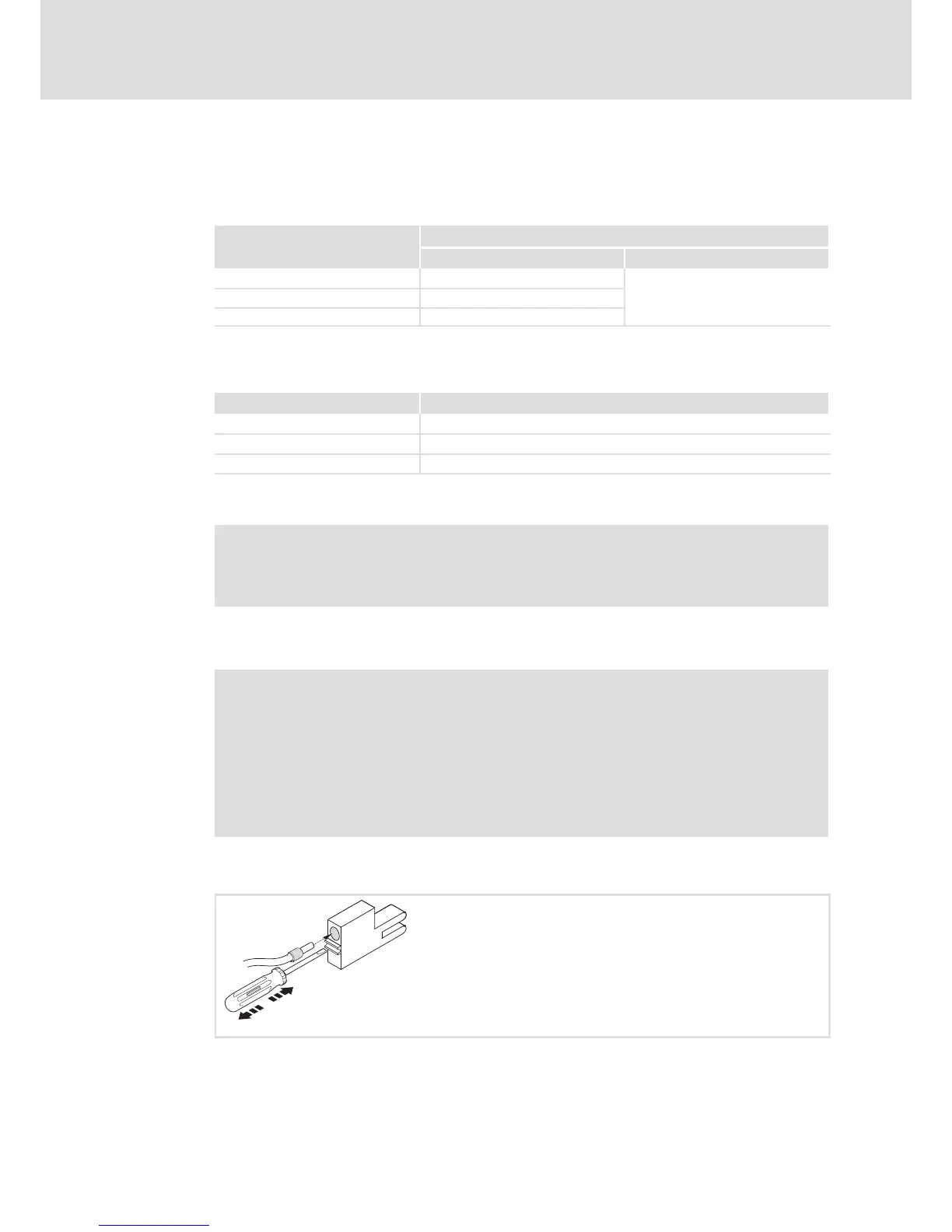

Use of plug connectors with spring connection
E82ZAFX013
