Electrical installation
Wiring of system bus (CAN)
5
92
EDBCSXA064 EN 3.2
System bus(CAN) wiring
ECS_COB004
Fig. 5−17

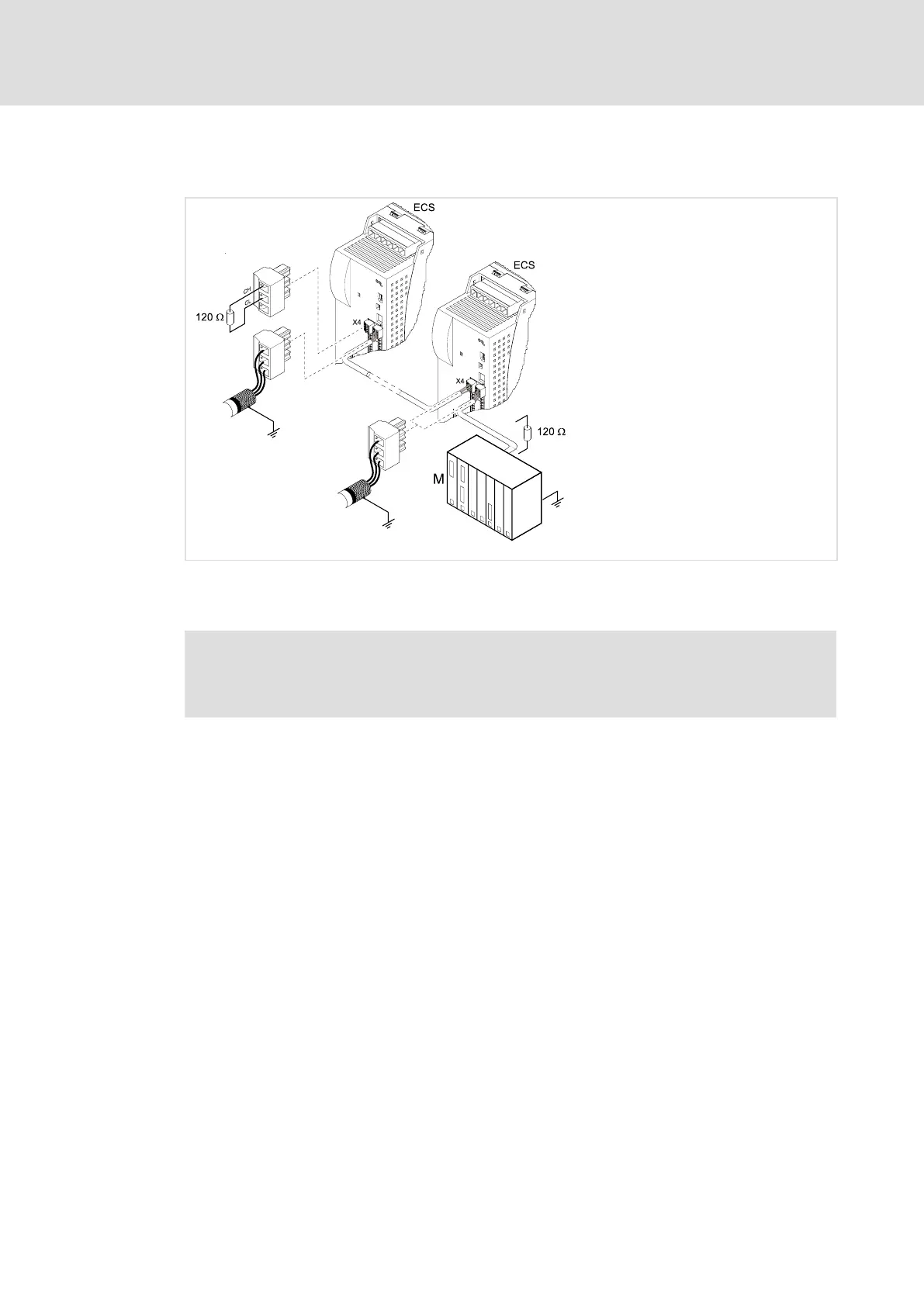

Example: System bus (CAN) wiring via interface X4
ECS
ECS axis module
M
Master control, e.g. ETC
Note!
Connect one bus terminating resistor (120
W
) each to the first and last node of
the system bus (CAN).
91
93
