Lenze Global Drive 9300 Servo PLC Series Mounting Instructions

Installation
4-4
L
MA9300PLC EN 1.4
Dimensions for types 9321 to 9326
c
b
d
e
g
Lenze
c
a
1
d1
d1
f
b1

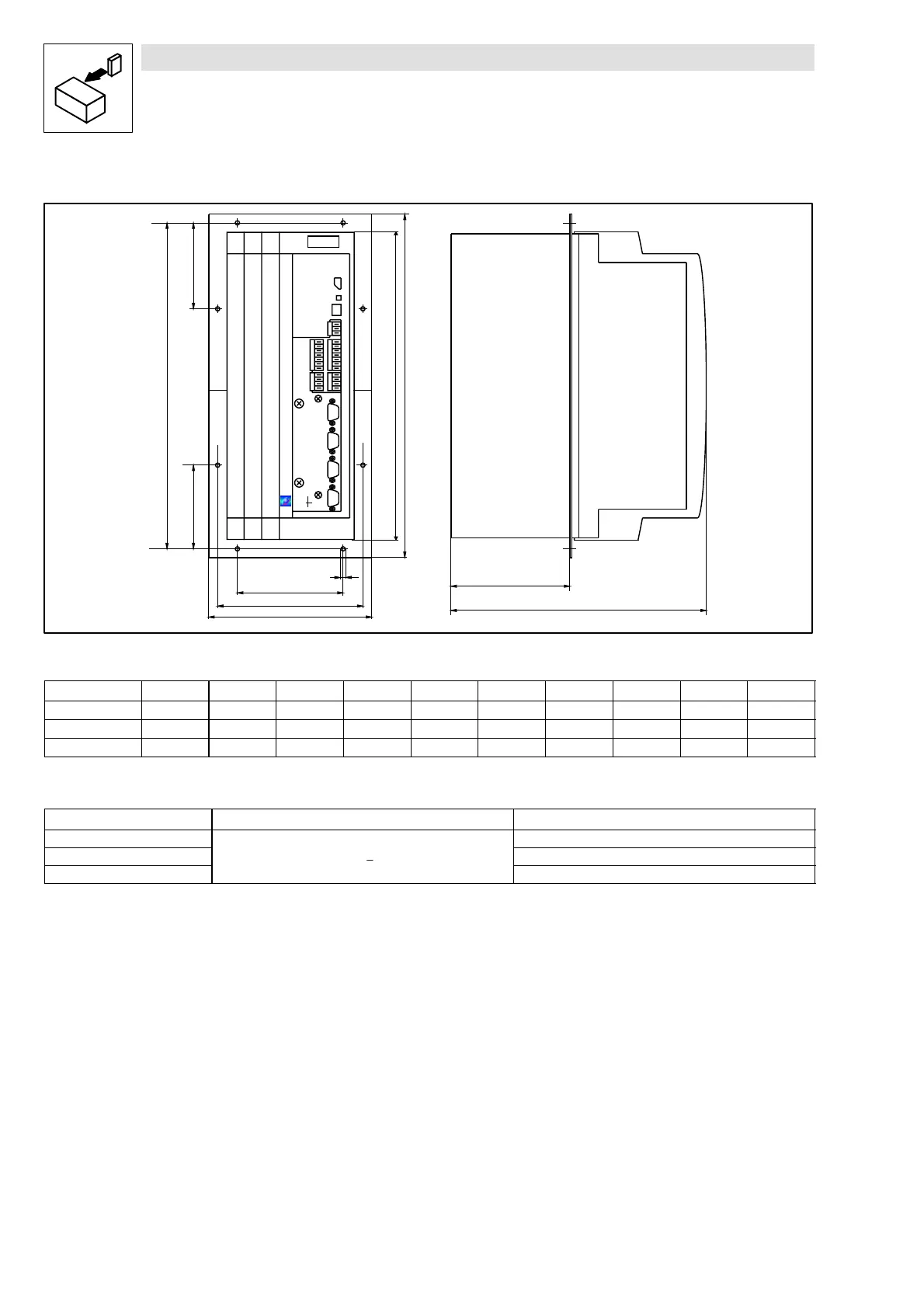

Fig. 4-2 Dimensions for mounting with thermally separated power stage
Type a b b1 c c1 d d1 e* f g
9321, 9322 112.5 385.5 350 60 95.5 365.5 105.5 250 92 6.5
9323, 9324 131.5 385.5 350 79 114.5 365.5 105.5 250 92 6.5
9325, 9226 135 385.5 350 117 137.5 365.5 105.5 250 92 6.5
Mounting cut-out
Type Height Width
9321, 9322 82 ±3
9323, 9324
350 ±3
101 ±3
9325, 9326
3
5
0
±
3
139 ±3
*
When using an attachable fieldbus module:
Observe the free space required for the connection cables
All dimensions in mm
