Lenze Global Drive 9300 Servo PLC Series Mounting Instructions

Commissioning
5-10
L
MA9300PLC EN 1.4
5.6.1 Keypad
(Order no.: EMZ9371BB)
The keypad can be plugged on the X1 interface and removed during operation.
When the keypad is plugged on the controller, the module is initialized. The keypad is ready for
operation after ”GLOBAL DRIVE READY” has been displayed.
Front view
Global DRIVE
SH PRG
Para
1250 rpm
0051
MCTRL-NACT
RDY
IMP Imax Mmax Fail
00

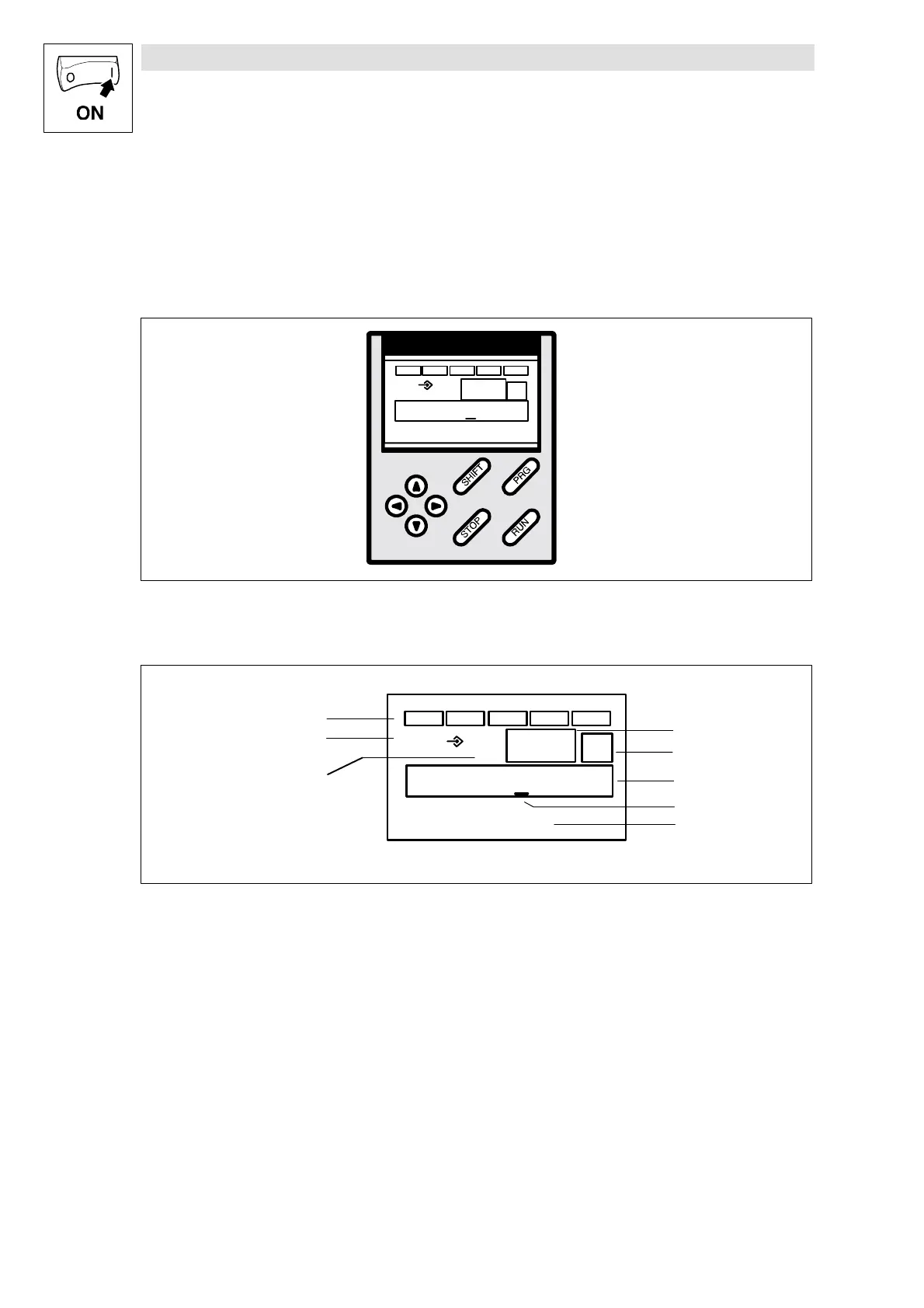

Fig. 5-3 Keypad
LCD display
SH PRG
Para
0051
RDY
IMP Imax Mmax
Fail
Status
Way of parameter
acceptance
Parameters
Tex t
Active level;
here: parameter level
Codenumber
Subcode number
Cursor
MCTRL-NACT
1250 rpm
00
Fig. 5-4 LCD display of keypad
