BACnet

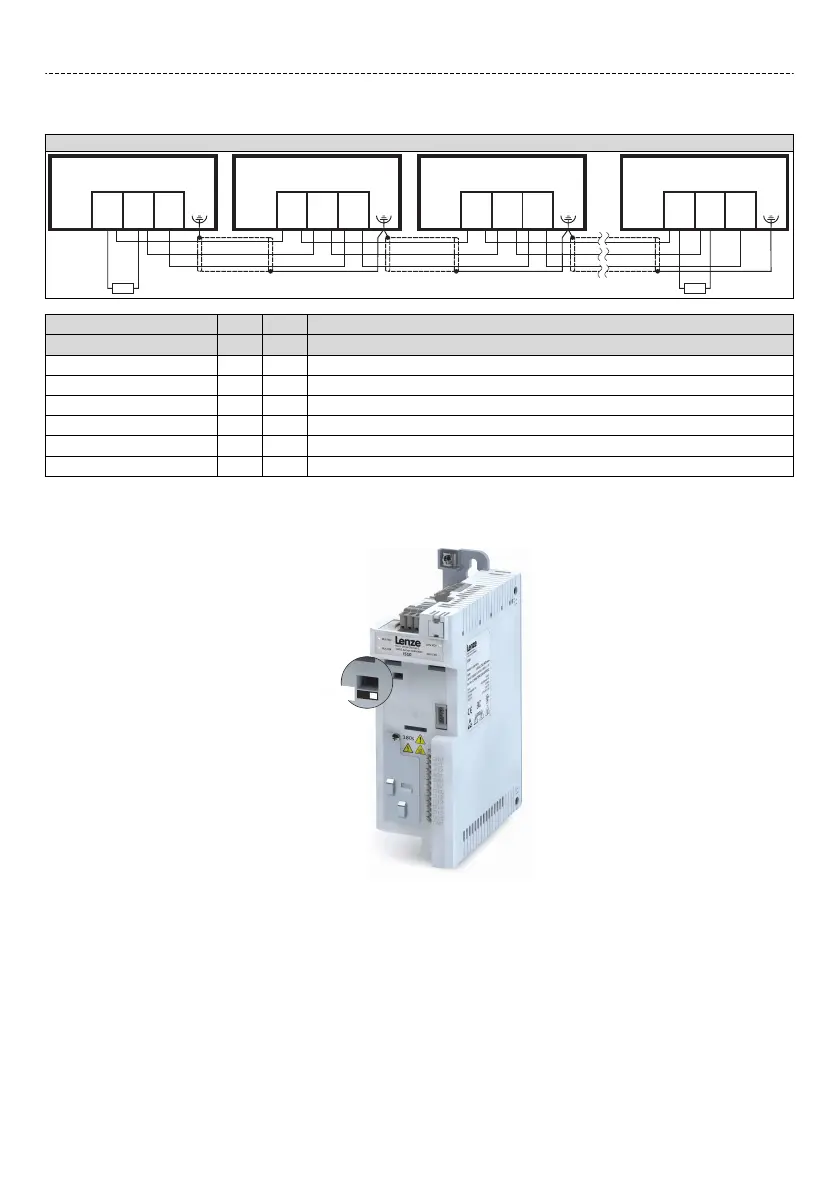

Typical topologies
Line
A1 A2 A3 An
X216 X216 X216 X216
120120
CG/
COM
CL/
TA
CH/
TB
CG/
COM
CL/
TA
CH/
TB
CG/
COM
CL/
TA
CH/
TB
CG/
COM
CL/
TA
CH/
TB
Connecon descripon BACnet
Connecon X216
Connecon type Pluggable
Max. cable cross-secon mm² 2.5
Max. cable cross-secon AWG 12
Stripping length mm 10
Stripping length in 0.39
Required tool Screwdriver 0.4 x 2.5
Basic network sengs
1. Select network BACnet using the switch on the front of the inverter.
BACnet
2. Set node address and baud rate via the corresponding parameters.
Electrical installaon
Networks
BACnet
