Installation and commissioning
DIGIDRIVE
Variable speed drive
Réf. 3218 GB - 4.33 / d - 02.02
LEROY-SOMER
17
1.5.2.1 - Mounting with cooling unit inside the cabinet
The drives can be installed on a solid base plate, a grille, a chassis or a DIN rail, so that the
cooling air flow can be channelled around the drive.
- Insert the mounting feet in the grooves at the top and bottom of the cooling unit.
- Fix the feet on the base plate, the DIN rail, or on the grille using M6 screws.
1.5.2.2 - Mounting with cooling unit outside the cabinet
1 - Cut out and drill holes in the cabinet rear panel.
2 - Insert a mounting foot in the groove at the top of the drive.
3 - Remove the bottom terminal block access flap in order to get at the fixing holes.
4 - Place the weatherproof seal supplied with the drive on the flange.
5 - Insert the drive in the rear panel cut-out.
6 - Fix the drive by means of the fixing at the top and the holes at the bottom.
CAUTION:
Check that there is adequate air circulation at the back of the cabinet.

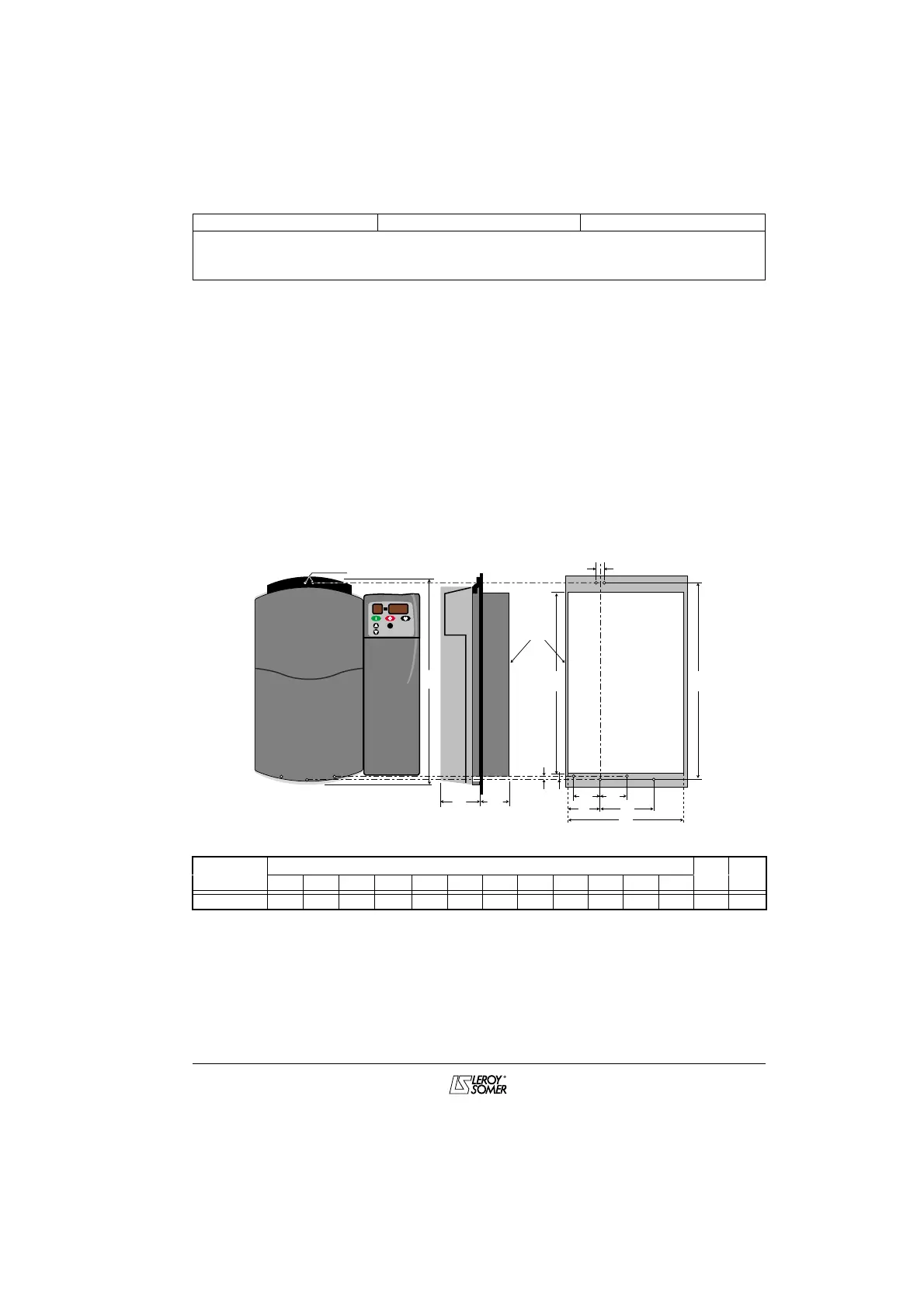

DIGIDRIVE Dimensions (mm)
Weight
Screws
rating W W1 W2 W3 W4 H H1 H2 H3 H4 D P1
(Kg)
33T to 50T 358 16.5 69 131.5 187 364 287 346 16 7 120 140 22 M6
D D1
Mounting
support
H
M
H1 H2
W1
W1
W2
H4 H3
W
W3
W4
W2
SCREWS
