Installation and commissioning
DIGIDRIVE
Variable speed drive
18
Réf. 3218 GB - 4.33 / d - 02.02
LEROY-SOMER
2 - MECHANICAL INSTALLATION
• It is the responsibility of the
owner or the user to ensure that
the installation, operation and
maintenance of the drive and its options
comply with legislation relating to the
safety of equipment and personnel, and
with the current regulations of the
country of use.
• The DIGIDRIVE must be installed
in an environment free from conducting
dust, corrosive fumes, gases and fluids,
and condensation (for example class 2
according to UL 840 and IEC 664.1). The
drive must not be installed in hazardous
areas unless it is in an appropriate
enclosure. In this case the installation
must be approved.
• In atmospheres where
condensation may form, install a heating
system which operates when the drive is
not in use and is switched off when the
drive is in use. It is advisable to control
the heating system automatically.
• The DIGIDRIVE casing is not
fireproof. If necessary, use a flameproof
cabinet.
2.1 - Checks on receipt
Before installing the drive, check that:
- The drive has not been damaged during
transport.
- The control terminal blocks and the cable
glands have been supplied with the drive
(plastic wallet under the protective cover,
containing: 3 cable glands for the power
cables and the motor cables + 1 cable
gland for the control cables + 1 terminal
block with 14 terminals + 1 terminal block
with 2 terminals).
- The nameplate corresponds to the mains
supply and the motor.
2.2 - Installation recommendations
• Mount the drive vertically providing a
space:
- of more than 100 mm between 2 rows
(150 mm for 33T to 50T ratings)
- of more than 20 mm between 2 drives
- of more than 10 mm between the drive
and the cabinet.
• Do not place the DIGIDRIVE above a heat
source.

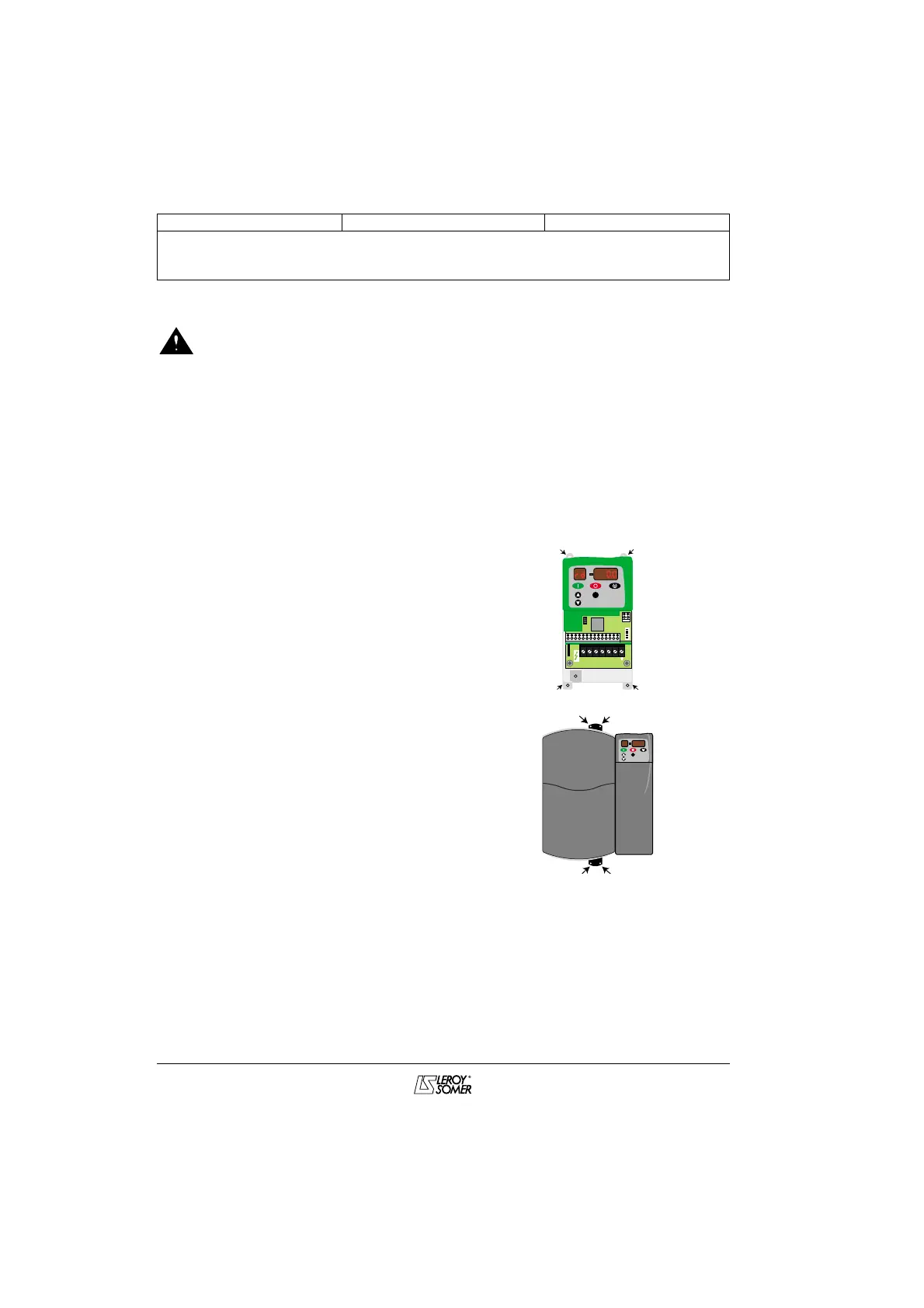

2.3 - Mounting
The DIGIDRIVE is fixed using 4 screws, in
accordance with the diagram below.
2.4 - UL conformity
To ensure conformity with UL standards,
install the drive in a separate electrical
enclosure, which should be UL approved.
M
PL1
PL3
PL4
L1 L2 PE U V W
PL2
15
1234567891011121314
16
M
