Installation and commissioning
DIGIDRIVE
Variable speed drive
46
Réf. 3218 GB - 4.33 / d - 02.02
LEROY-SOMER
4 - COMMISSIONING

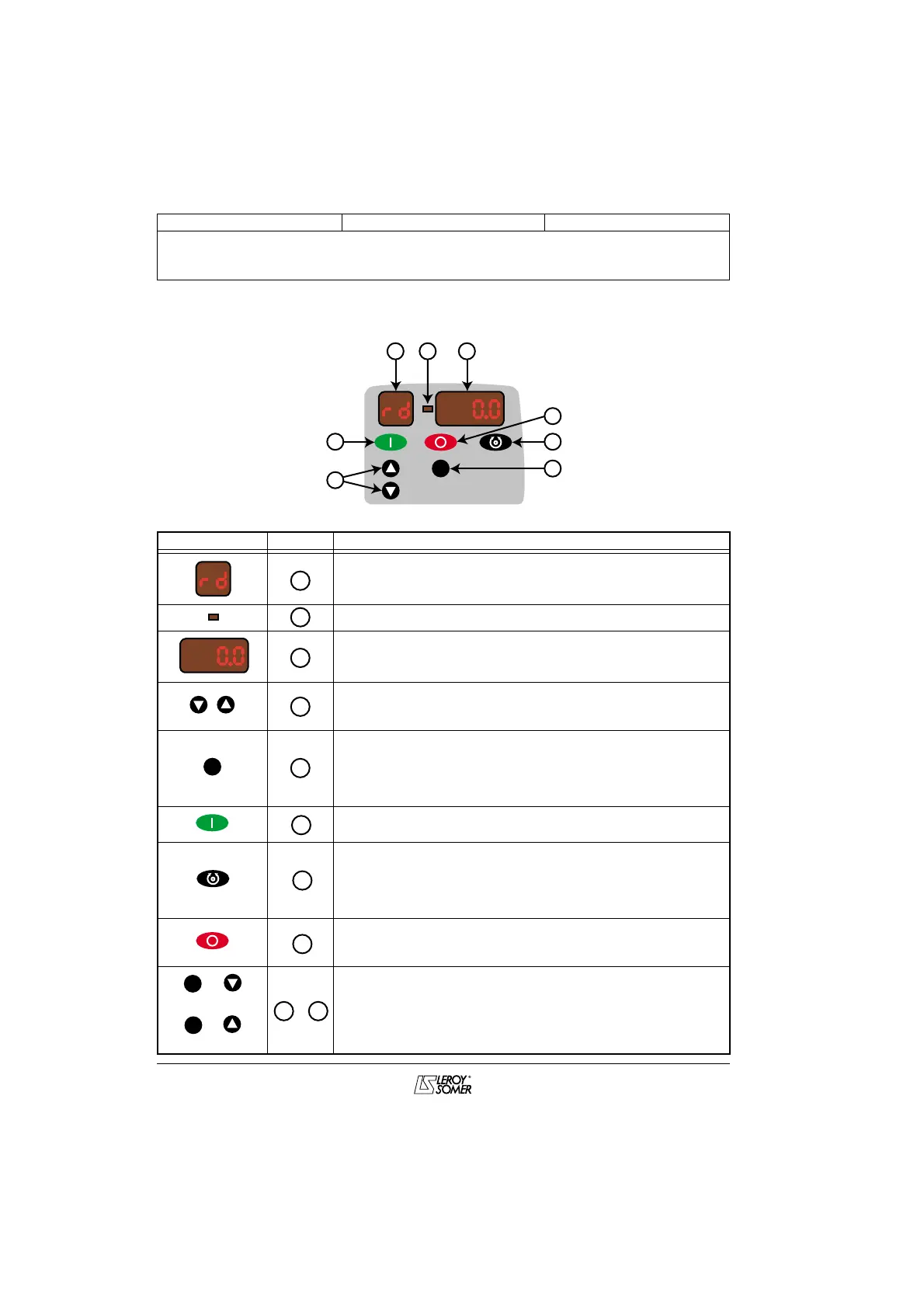

4.1 - Description of the operator display
Control No. Function
2 x 7-segment digits: display the parameters, the drive status,
the speed and load units.
Sign for the value of the content of a parameter.
4 x 7-segment digits: display parameter values, and error and
alarm messages.
• Used to scroll through the parameters.
• To modify the value of a parameter.
• To change the speed in keypad mode.
• Used to access the modification of a parameter
value.
• Change from parameter-setting mode to Read Mode or
Drive Status mode and vice versa.
• Stores modified parameters.
In keypad mode, is used to give the FWD or REV command to
the motor.
• FWD/REV key
• In keypad mode, is used to change the direction of rotation of
the motor.
• In its factory setting, this key is inactive. To enable it,
see section 4.8, parameter 2
2
6
6
.
• "Reset" key
• Used to give the command to stop the motor in keypad mode.
• Clears faults in keypad or terminal block mode.
+
or
+
simultaneously
+
When modifying the value of a parameter, this key combination
is used to move under the digits to be modified and speed up
parameter setting.
M
1
6
4
8
7
5
2 3
M
M
M
1
2
5
3
4
8
7
6
4
5
