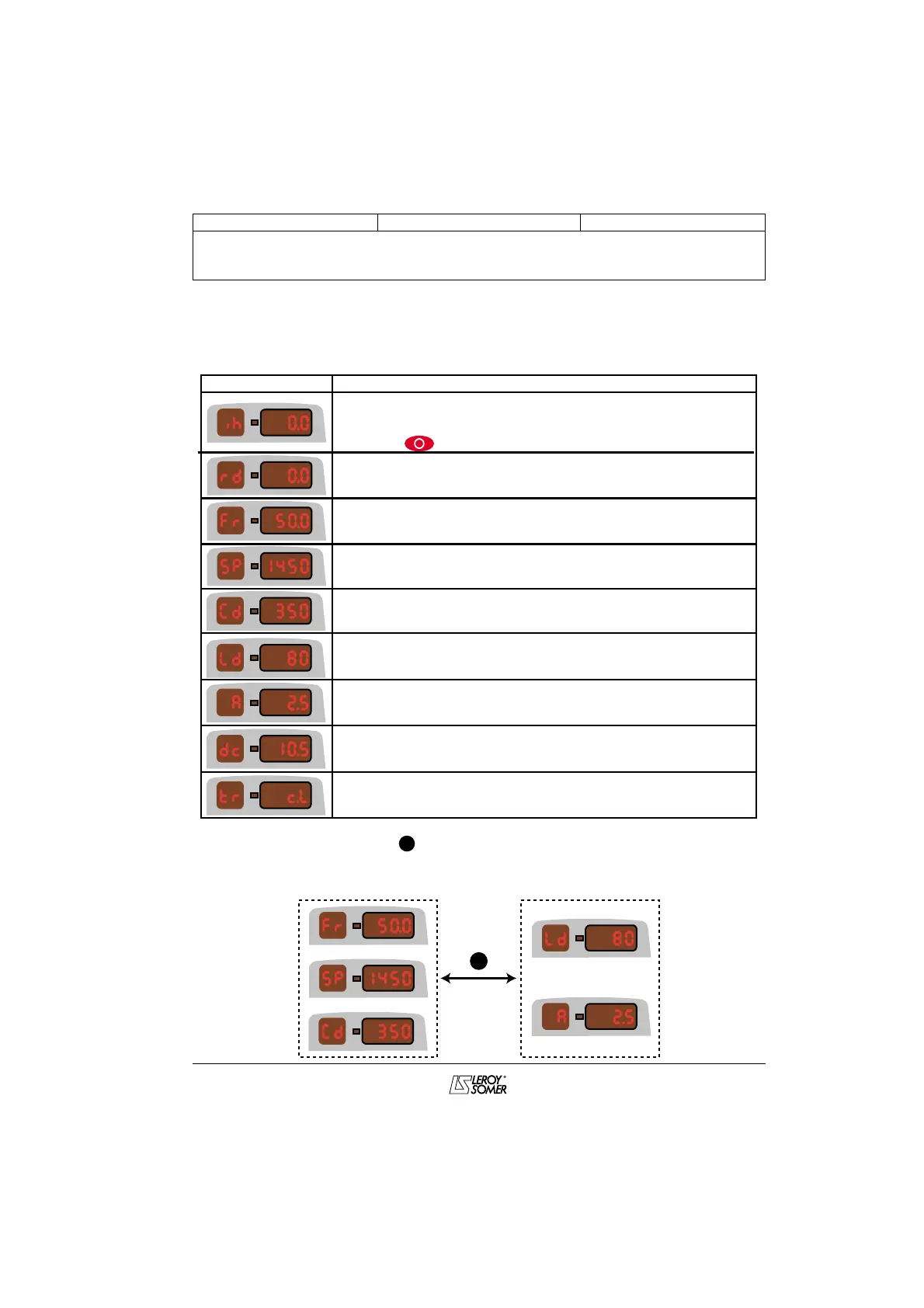

4.2 - Displaying the drive status
• The left-hand display on the DIGIDRIVE (2 x 7-segment digits) is used to display the status
of the drive when stopped, and the type of speed or load during operation, whose value is
shown in the right-hand display.
• During operation, pressing the key for 2 seconds changes from the speed reading (Fr,
SP, Cd) to the load reading (Ld, A) and vice versa.
The selected display is stored when the drive is powered down, and will therefore be identical
at the next power-up.
Display Comment
• The drive is locked (terminal 9 is open).
• The drive is in freewheel stop mode.
• The drive is in the process of clearing a fault
(after the key has been pressed).
The drive is unlocked and ready to receive a run signal
(terminal 9 is closed).
The right-hand display indicates the frequency in Hz (configurable
using 23).
The right-hand display indicates the speed in min-1 (configurable
using 23).
The right-hand display indicates a unit defined by the user
(configurable using 23 and 24).
The right-hand display indicates the motor load as a percentage of
the rated load (configurable using 22).
The right-hand display indicates the output current per phase
(configurable using 22).
The drive is in DC injection braking mode.
The drive is faulty. The type of fault is shown on the right-hand
display.
M
or
Press for
2 seconds
or
or
M
