Installation and commissioning
DIGIDRIVE
Variable speed drive
20
Réf. 3218 GB - 4.33 / d - 02.02
LEROY-SOMER

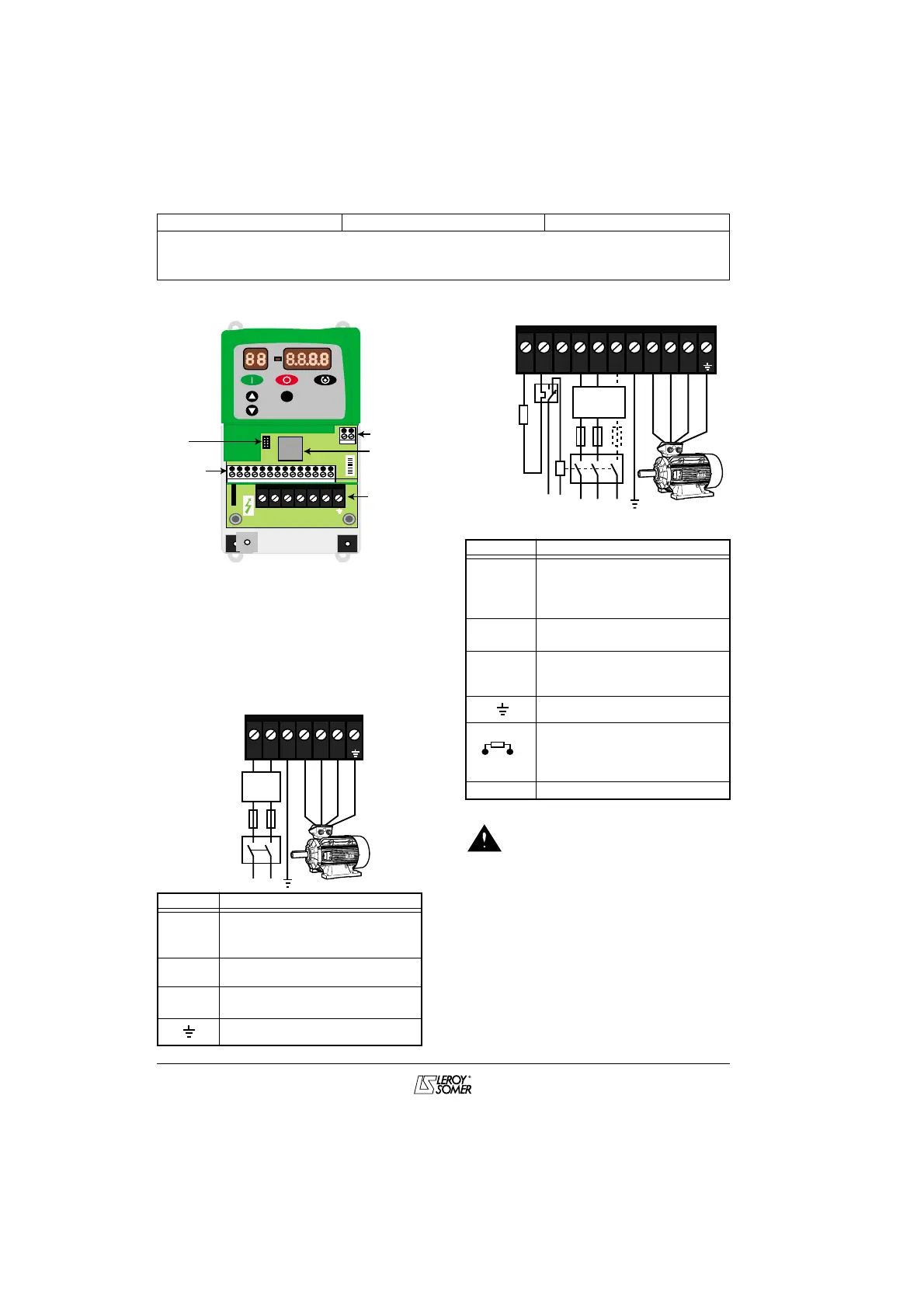

3.2 - Terminal block layout
3.3 - Description of the terminal
blocks
3.3.1 - Power terminal block
The maximum tightening torque for the
power terminals is 1N.m for 0.5M to 5.5T(L)
ratings, 2N.m for 8T(L) to 27T ratings, and
15N.m for 33T to 50T ratings.
• 0.5M to 1.5M ratings
• 1.5M/TL to 3.5M/TL ratings
• Check that the braking resistors
are correctly connected between
the + and DBR terminals (and not + and -).
Terminals
Functions
L1, L2/N
Single-phase power supply
200 to 240V ±10%
50-60 Hz ±2%
PE
Connection to mains supply
earth
U, V, W
Motor connection (respect the
motor/drive phase order)
Motor connection to earth
M
PL1
PL3
PL4
L1 L2 PE U V W
PL2
15
1234567891011121314
16
Control
terminal
block
Copy
key
Relay
Power
terminal
block
Serial link
L1 L2/N
L1 L2/N
PE U V W
RFI
filter
Option
Fuses
Terminals Functions
L1, L2
L1, L2, L3
Single-phase power supply
3-phase power supply
200 to 240V ±10%
50-60 Hz ±2%
PE
Connection to mains supply
earth
U, V, W
Motor connection
(respect the motor/drive phase
order)
Motor connection to earth
Connection of the optional RF
braking resistors (via a thermal
relay) between the + on the
DC bus and terminal DBR
- DC bus -
L2 L3
L2
PE U V WL1+ DBR -
L3L1
RFI filter
(option)
Braking
resistor
(option)
+ DBR
