Leroy-Somer DIGIDRIVE SE2.5T User Manual

Installation and commissioning
DIGIDRIVE
Variable speed drive
16
Réf. 3218 GB - 4.33 / d - 02.02
LEROY-SOMER

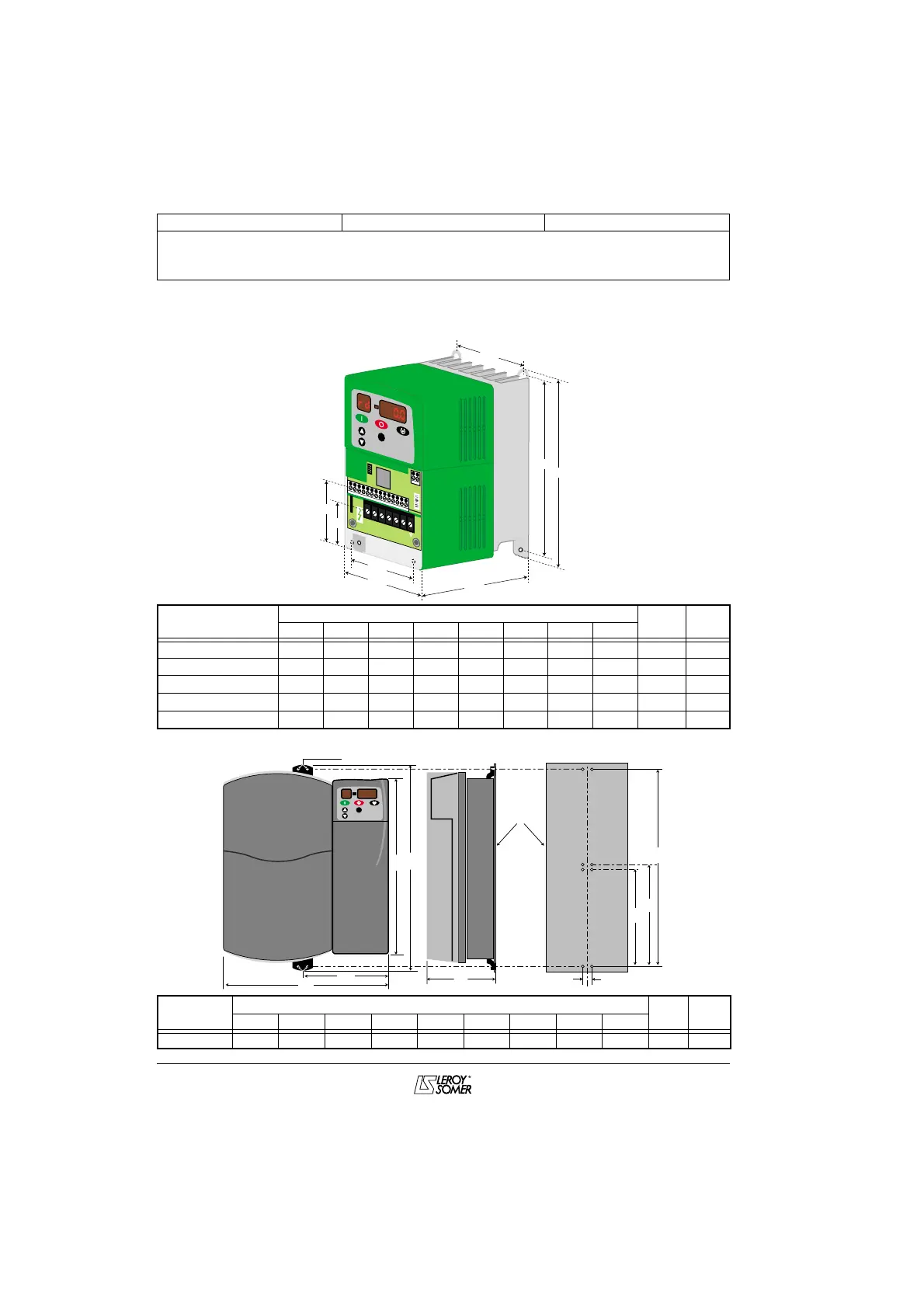

1.5 - Weights and dimensions
1.5.1 - 0.5M to 27T ratings
1.5.2 - 33T to 50T ratings
DIGIDRIVE rating
Dimensions (mm)
Weight
(kg)
Screws
W W1 W2 H H1 H3 H4 D
0.5M and 1M 102 84 84 191 181.5 57 40 130 1.1 4xM4
1.2M and 1.5M 102 84 84 191 181.5 57 40 130 1.25 4xM4
1.5M/TL to 5.5T(L) 147 121.5 122 280 265 140 42 130 2.7 4xM4
8T(L) and 11T(L) 190 172 164 336 320 190 45 155 6 4xM4
16T to 27T 250 228 217 412 397 243 55 185 11 4xM5
DIGIDRIVE Dimensions (mm)
Weight
Screws
rating W W1 W2 H H1 H2 H3 H4 D
(Kg)
33T to 50T 375 187.5 16.5 335 368 346 175 220 260 22 M6
M
P
L
1
P
L
3
P
L
4
L
1
L
2
P
E
U
V
W
P
L
2
1
1
2
3
45
67
8
9
10
11 12
13
14
2
H1
H
H3
H4
W1
W
D
W2
D
W2
W2
W1
Mounting
support
H
H1
H3
H4
H2
W
M
SCREWS
