Installation and commissioning
DIGIDRIVE
Variable speed drive
70
Réf. 3218 GB - 4.33 / d - 02.02
LEROY-SOMER
:Assignment of terminal 13 to
management of the PTC
sensors
Adjustment range : On, OFF
Factory setting : OFF
OFF: terminal 13 is configured as a logic
input, in accordance with the setting of
parameter 05 "reference selection".
On: terminal 13 is configured to manage
the motor sensor.
After modifying the parameter, press the
Reset key .

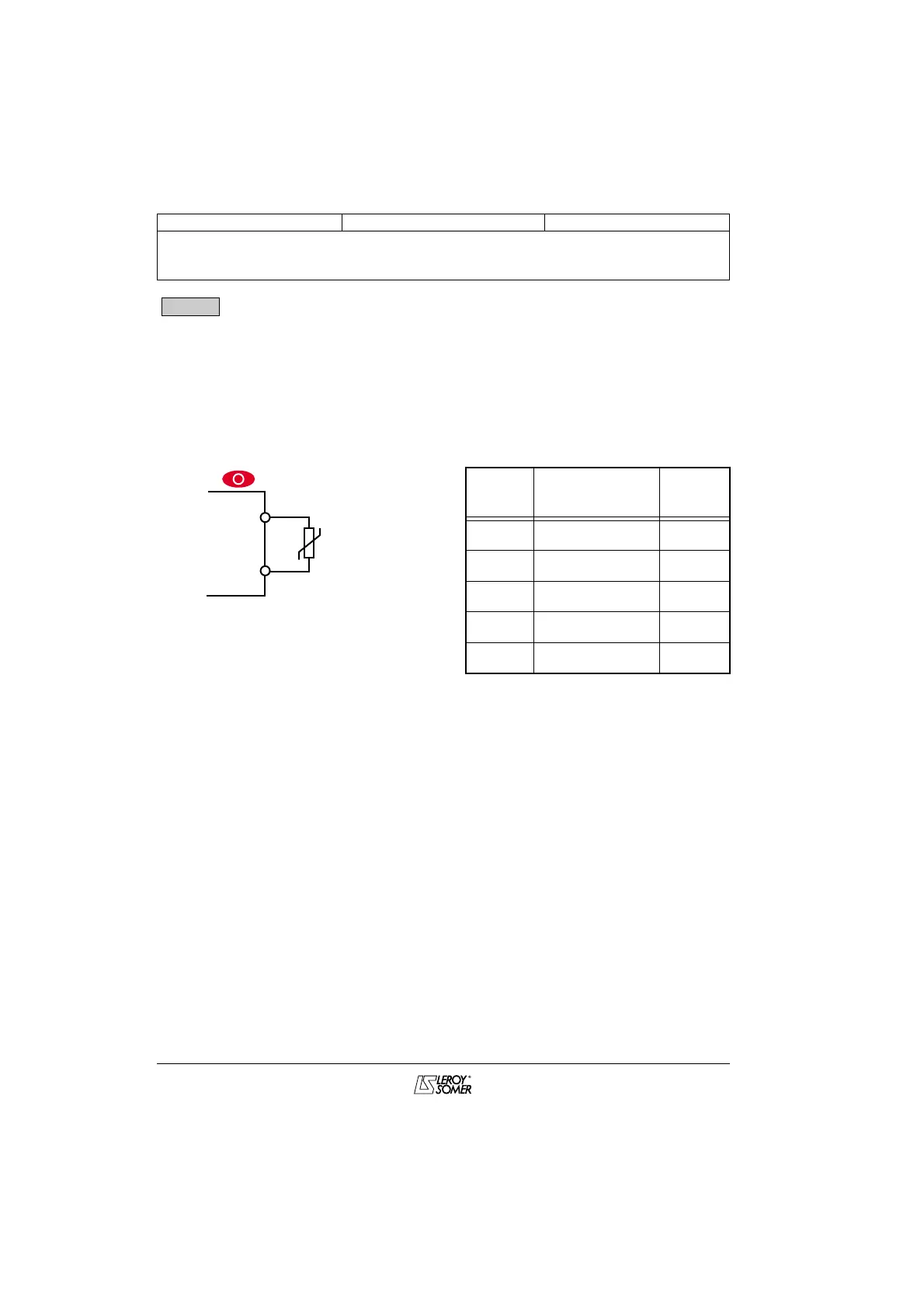

Drive fault threshold = resistance ≥ 3 kΩ
(the drive is no longer faulty when the
threshold reaches 1.8 kΩ).
CAUTION:
• Regardless of which control logic is
selected (positive or negative), connect
the sensor to terminal 13 and terminal 1
or 4 (0V).
• The PTO sensor can also be used.
• For modification of this parameter to
be taken into account, the drive must be
locked or faulty.
4.9 - Factory settings for 60Hz mains
supply
The DIGIDRIVE offers the option of
configuring the factory settings for a 50Hz
or 60Hz mains supply (procedure
described in section 4.5).
The parameters modified after returning to
the 60Hz factory settings (2
2
9
9
= USA or
br.US), and their values are described in
the following table.
5
5
0
0
(0V) 4
13
Motor
sensors
Parameter Name
60Hz
factory
setting
0
0
2
2
Maximum
60Hz
frequency limit
0
0
5
5
Frequency
PAd
reference
0
0
7
7
Rated motor
1800 min
-1
speed
0
0
8
8
Rated motor 230V or
voltage 460V
3
3
9
9
Rated
60Hz
frequency
