Leroy-Somer DIGIDRIVE SE2.5T User Manual

Installation and commissioning
DIGIDRIVE
Variable speed drive
Réf. 3218 GB - 4.33 / d - 02.02
LEROY-SOMER
45

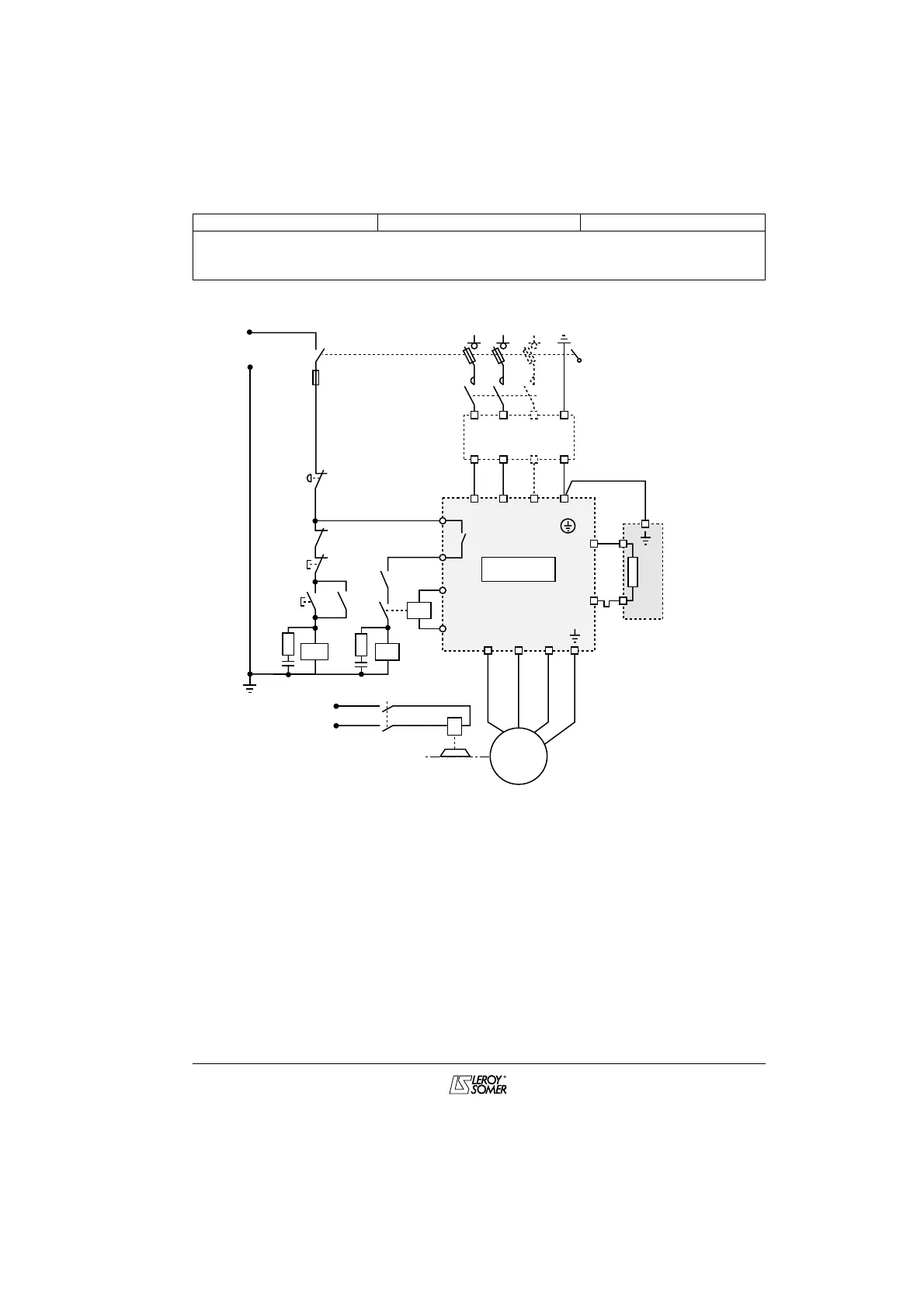

3.6.5 - "Brake control" preset configuration
To select the "brake control" preset configuration, see section 4.10.
CAUTION:
The user MUST familiarise himself with commissioning the drive as explained in section
4.1.
QS : Fused isolator
AU : Emergency stop button
SB1 : Power off button
SB2 : Power on button
KM1 : Line contactor
FR : Thermal relay of optional braking resistors
KN : Auxiliary brake relay
UVW
L2 L3 PE
or
M
3 ~
AU
SB1
FR
(RF)
SB2 KM1
KM1
KN
Fu1
Remote control
power supply
KM1
Mains supply
L1
QS
KM1
BR
+DC
RF
Braking
resistor
option *
(available
on ratings
≥ 1.5M/TL)
FR
RFI filter
option
DIGIDRIVE
15
16
4
8
Fault
relay
(0V)
KN
F
Brake
power supply
KF
KF
