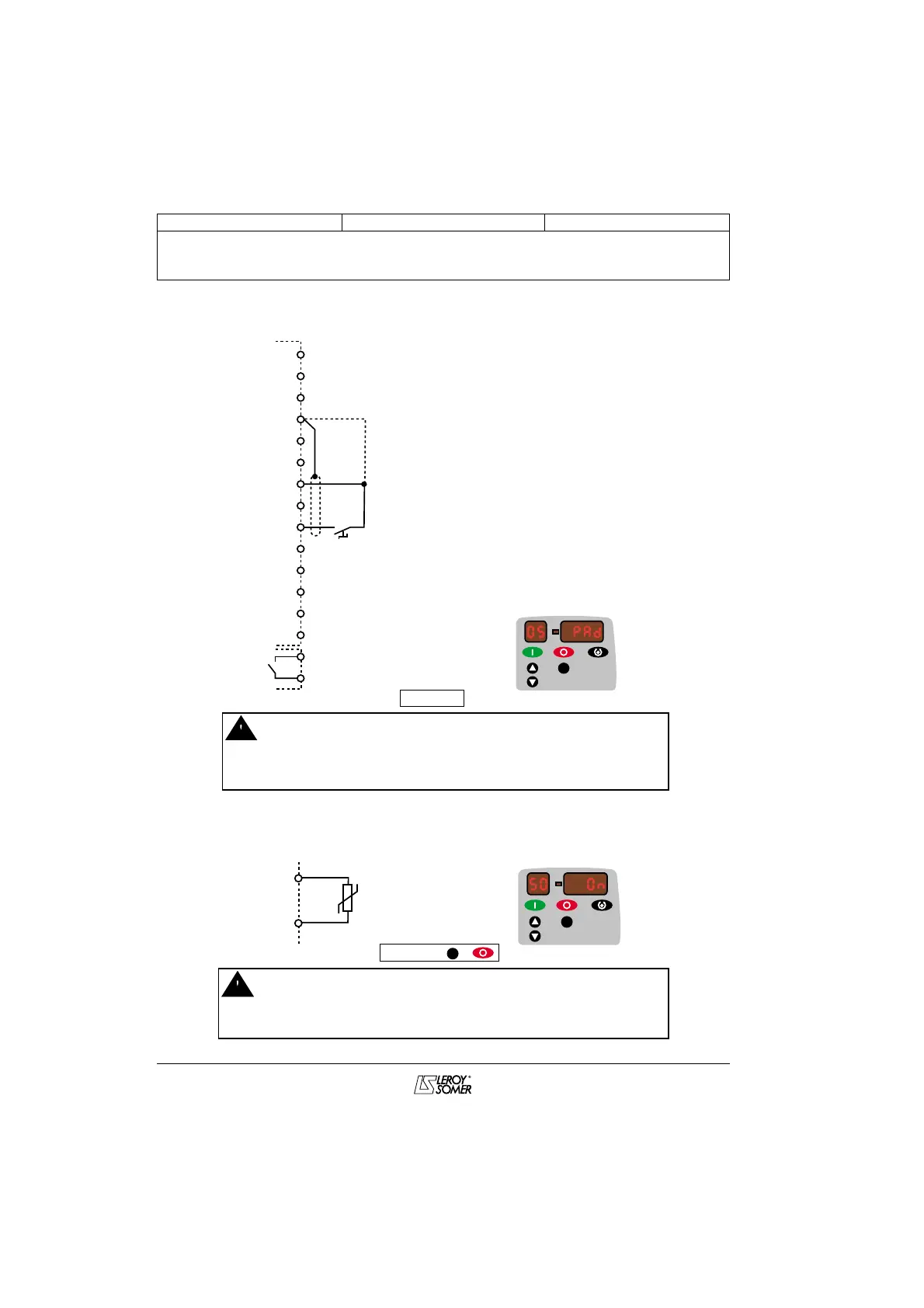

3.6.4.5 - Control via keypad
3.6.4.6 - Connection of PTC sensors
M
1
+24V (positive logic)
0V (negative logic)
Unlock
+24V
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Fault relay
PL1
PL2
• The original configuration of the drive assumes positive logic
operation.
• Using a drive with a control system which has a different control logic
may cause unwanted starting of the motor.
• See section 4.4 for configuring the drive for negative logic, and connect
the common to 0V.
05 = PAd
M
M
(0V) 4
13
• Regardless of which control logic is selected (positive or negative),
connect the sensor to terminal 13 and terminal 1 or 4 (0V).
• The PTO sensor can also be used.
• For modification of this parameter to be taken into account, the
drive must be locked or faulty.
50 = On + +
