Installation and commissioning
DIGIDRIVE
Variable speed drive
Réf. 3218 GB - 4.33 / d - 02.02
LEROY-SOMER
59
CAUTION:
• If the FWD/Stop and REV/Stop
terminals are closed simultaneously,
the motor will stop according to the
selected ramp and stop mode.
• If jog operation is selected while the
drive is controlled via the analogue
voltage or current input, the motor will
accelerate or decelerate according to
the ramps set in 0
0
3
3
or 0
0
4
4
to the
programmed jogging speed. When this
speed is reached, the ramps become
those for jog operation, ie. 0.2 s.

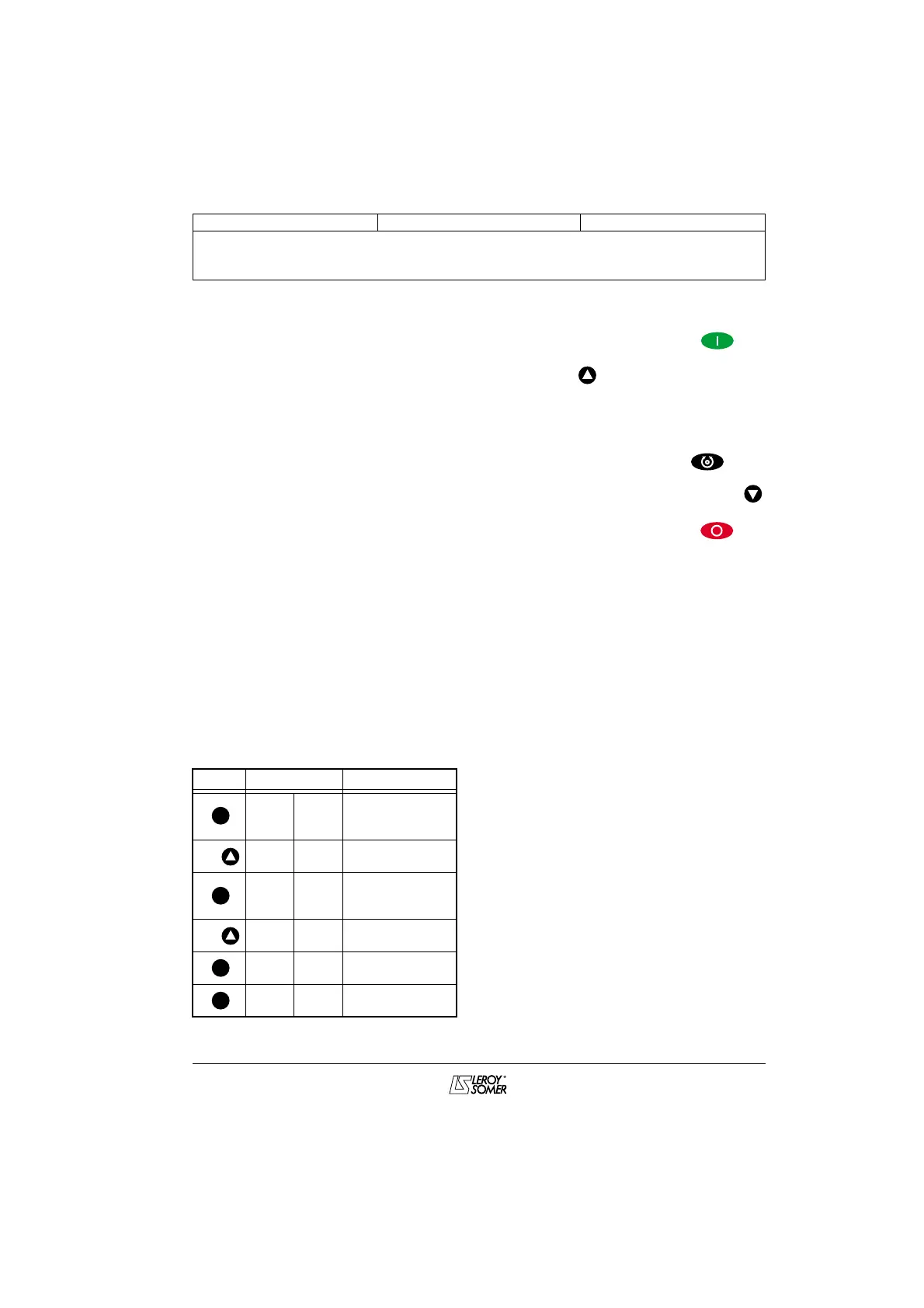

4.7.3.2 - Control from the keypad
- Check the power (sections 3.6.1 to 3.6.3)
and control (section 3.6.4.5) circuit
connections.
- Switch on the drive: The left-hand display
indicates "ih".
- Check that the motor parameters have
been filled in according to the table in
section 4.7.2.1.
- This operating mode requires the
modification of the factory setting of
parameter 0
0
5
5
.
- Follow the procedure below:
- Close the drive unlock contact (terminal
9). The left-hand display indicates "rd".
- Give a run command using the key.
The display indicates "Fr".
- Press the key to increase the motor
speed, either holding the key down to
increase it quickly or using successive
single presses for more accurate setting of
the required motor speed.
- Set 2
2
6
6
to On, then press the key to
reverse the direction of rotation.
- Reduce the motor speed using the
key until it has completely stopped and/or
give a stop command using the key.
The left-hand display indicates "rd".
Action Display Comment
01 0.0
Access to
Parameter-
setting mode
4 x
05 A1.A2
Selection of
parameter 0
0
5
5
05 A1.A2
Access to
parameter
modification
4 x
05 PAd
Selection of
keypad mode
05 PAd
Storage of the
new value
ih 0.0
Return to initial
status
M
M
M
M
