Leroy-Somer DIGIDRIVE SE2.5T User Manual

Installation and commissioning
DIGIDRIVE
Variable speed drive
Réf. 3218 GB - 4.33 / d - 02.02
LEROY-SOMER
81

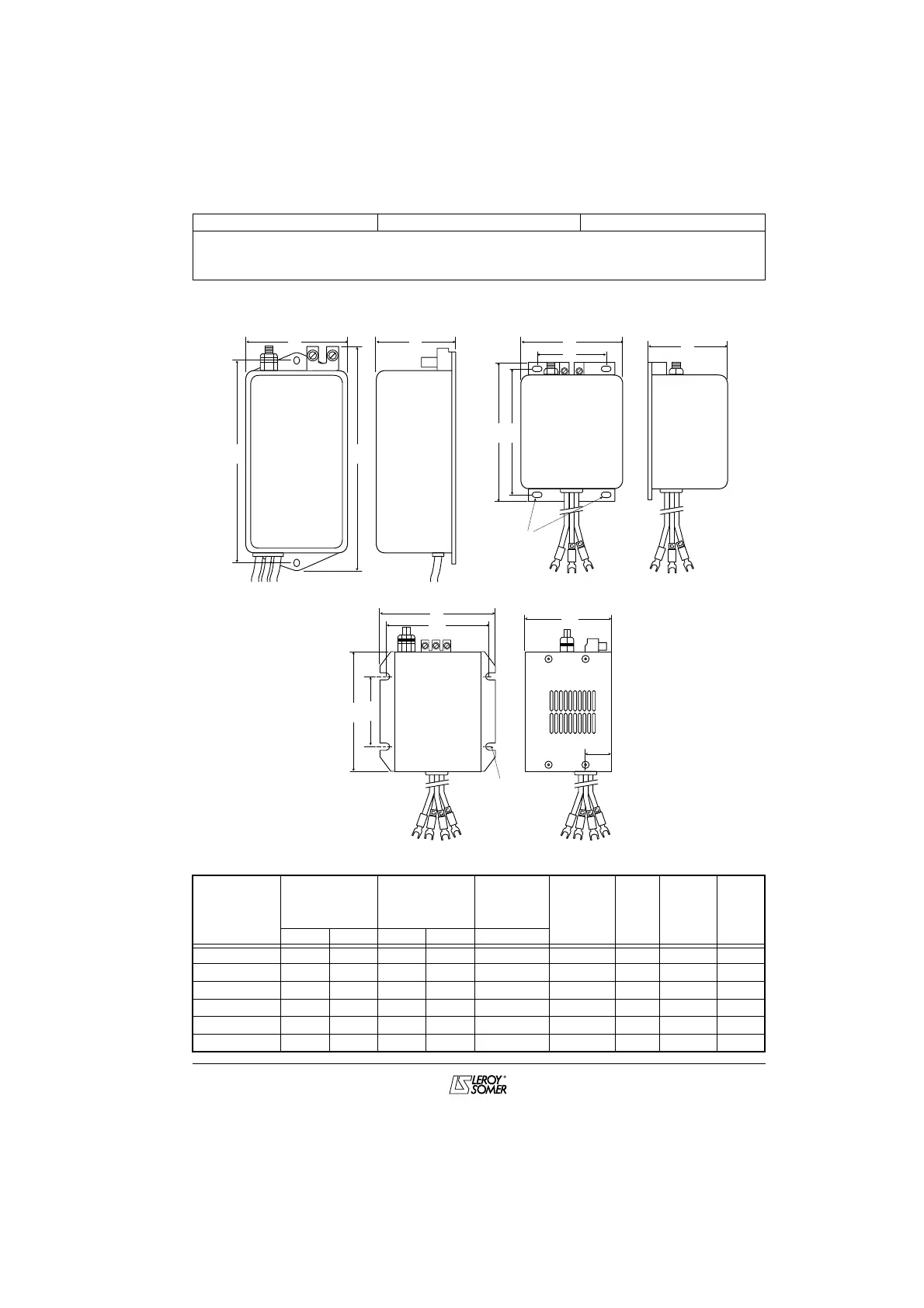

7.1.2 - Dimensions and weight
The filters should be mounted on a plate at the back of the cabinet, as close as possible to the drive.
Filter Width Height Depth
Cable
Screws
Terminal
Weight
length
tightening
reference
(mm) (mm) (mm) (mm)
(mm) torque
(kg)
W W1 H H1 D
ØZ (Nm)
FLT 5594-12 58 - 113.5 103 45.5 230 4.4 0.8 0.5
FLT 5594-26 85.5 51 119 109 57.6 250 4.3 0.8 0.7
FLT 5901-17 85.5 51 119 109 57.6 300 4.3 0.8 0.6
FLT 5901-30 118 103 133 80 70 300 6.5 0.8 0.8
FLT 5901-33 128 113 143 80 80 300 6.5 2.2 1.1
FLT 5901-37 128 113 143 80 80 300 6.5 2.2 1.2
HH1
W
W
W1
D
D
ØZ
ØZ
FLT 5594 - 12
FLT 5901 - 30 and FLT 5901 - 33
H H1
W
W1
D
FLT 5594 - 26 and FLT 5901 - 17
H1
H
21
