Installation and commissioning
DIGIDRIVE
Variable speed drive
88
Réf. 3218 GB - 4.33 / d - 02.02
LEROY-SOMER

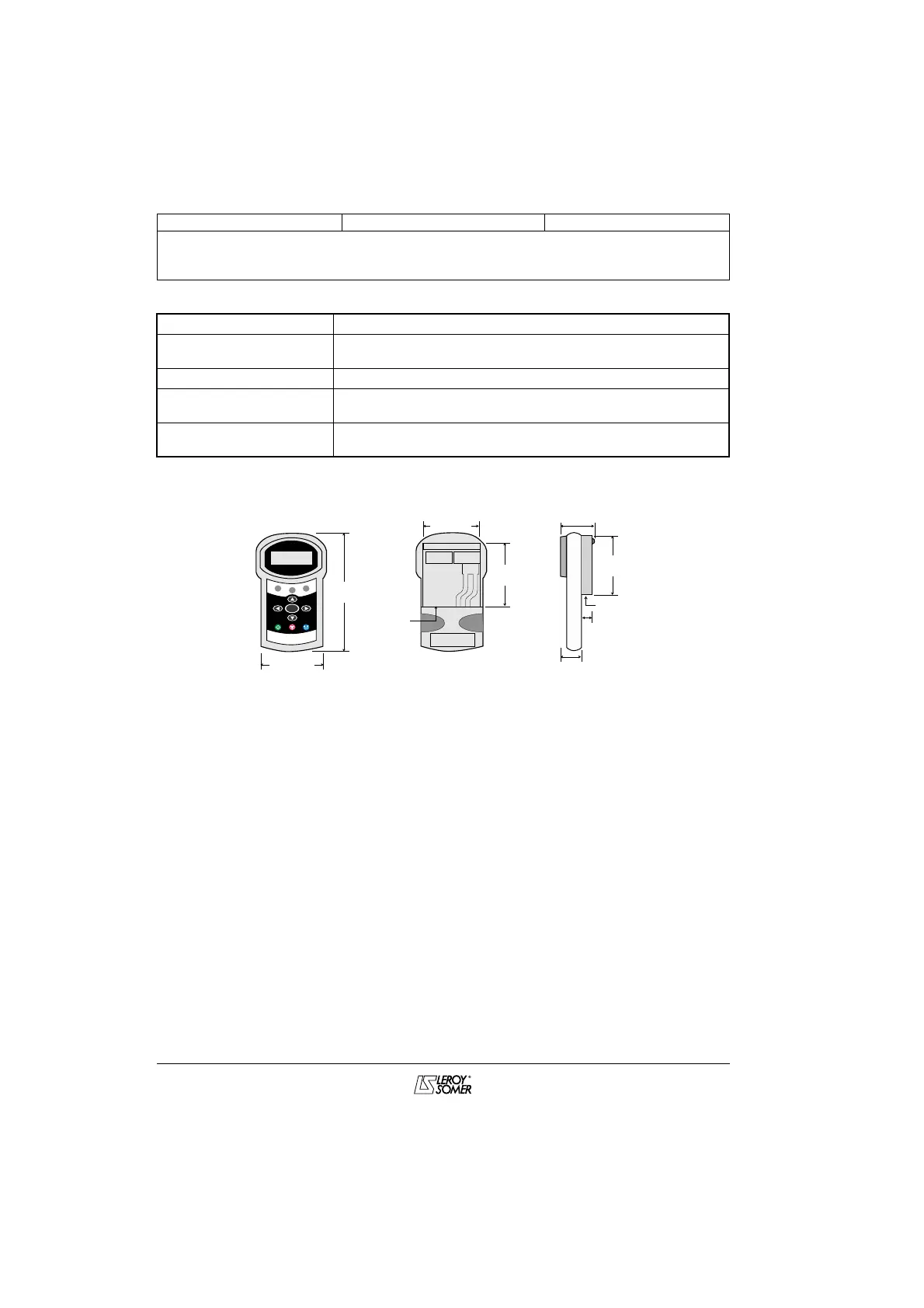

General characteristics
Dimensions
For information on how to connect and operate the UNIPAD, see manual ref. 3343.
7.6.3 - Setting the parameters via a PC
The DIGISOFT parameter-setting software makes it very easy to set up the DIGIDRIVE from
a PC.
Interactive parameter setting: the parameters of the drive are set automatically, based on the
answers to a questionnaire concerning the installation.
Supervision during commissioning: DIGISOFT enables the user to supervise the various data
concerning operation from a single screen.
Storing files: DIGISOFT can be used to save all the parameter files, thus making it possible to
copy an existing setting quickly.
Composition of the DIGISOFT kit:
1 CD-Rom, 1 connection lead consisting of:
- 1 RS 232 SUB D 9-pin connector for linking to the PC
- 1 x 2 m cable incorporating an RS 232/RS 485 interface
- 1 RS 485 RJ45 connector for connection to the drive
Power supply Provided by the DIGIDRIVE
Serial link
2-wire RS 485 Connected to the DIGIDRIVE via the RJ45
socket (maximum cable length: 1200 m)
Ambient temperature 0 to +50°C
EMC
Conforms to standards EN 50081-2 (emissions), EN 50082-2
(immunity) and IEC 61800-3 (variable speed drives)
Protection
IP40 (when the console is installed on the front of the cabinet
with a weatherproof seal, the protection is IP65)
M
Front view Rear view Side view
188 mm
90 mm
90 mm
Cable
entry
115 mm
27 mm
20 mm
90 mm
50 mm
Cable
entry
