2.2 Handheld device

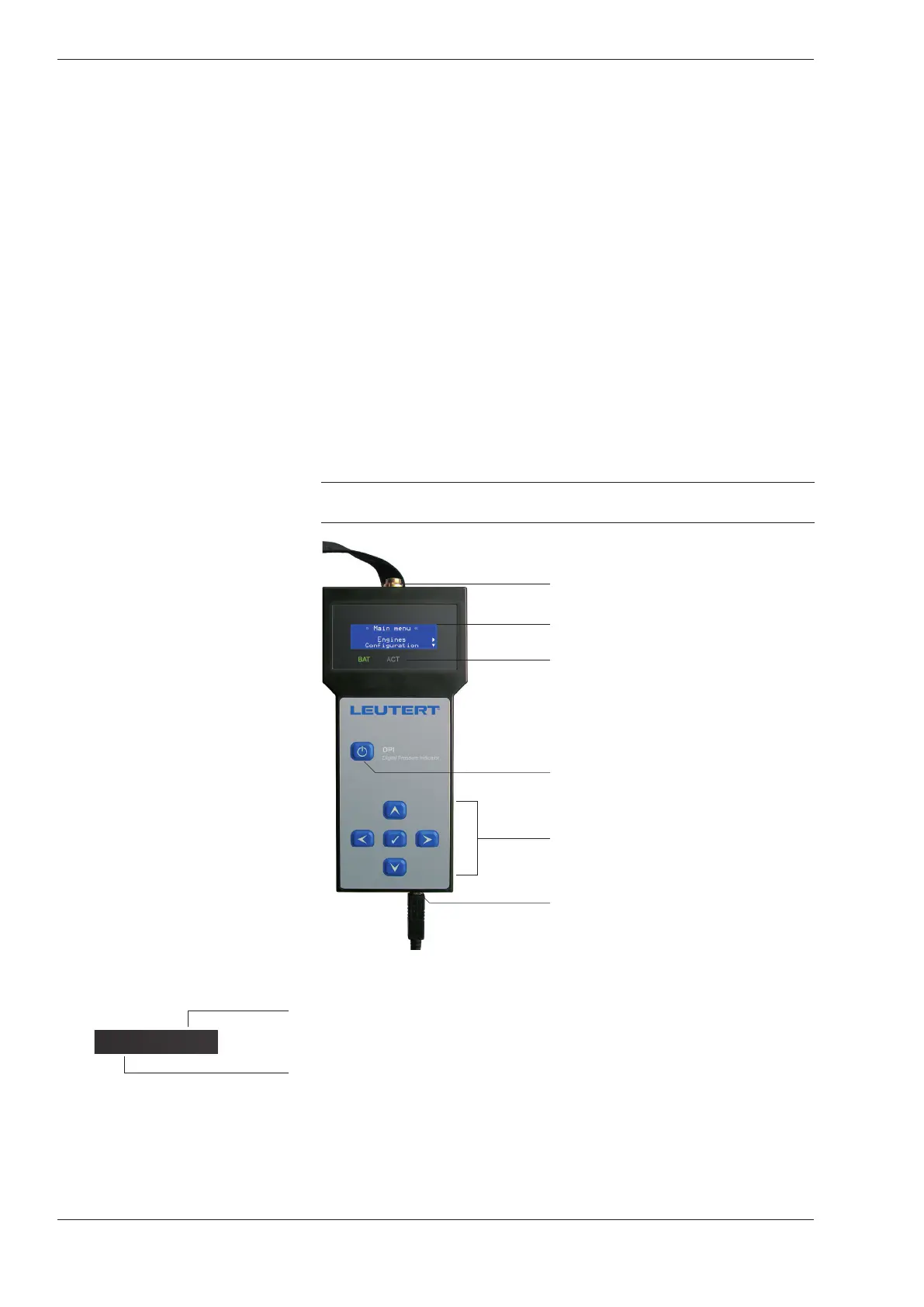

2.2.1 Design
Control buttons
ON / OFF button
USB socket type B
LC display with backlight,
4 lines x 20 alphanumeric characters
4-pin connection socket for pressure sensor
LED for status display of the batteries
and of the measuring process
ACT display:
– fl ashes blue during the measurement
BAT battery charge displays:
– lights up red: low battery charge
– fl ashes red: the automatic shutdown will take place shortly
– fl ashes green: active charging of the batteries
– glows green: batteries fully charged
All representations and mathematical calculations in the DPI software are
based on this data.
The saved measurement data can be transferred to a PC / laptop by the DPI
software to be visualized, evaluated or to be sent electronically.
The measurement data evaluation using Windows-based software gives
the ability to make complex diagnostic statements about the quality of the
combustion processes.
Every product is manufactured according to the ISO 9001 quality standard,
tested and shipped with a calibration certifi cate which guarantees a high
device accuracy.
