Mounting Leuze electronic
38 BPS 8 Leuze electronic

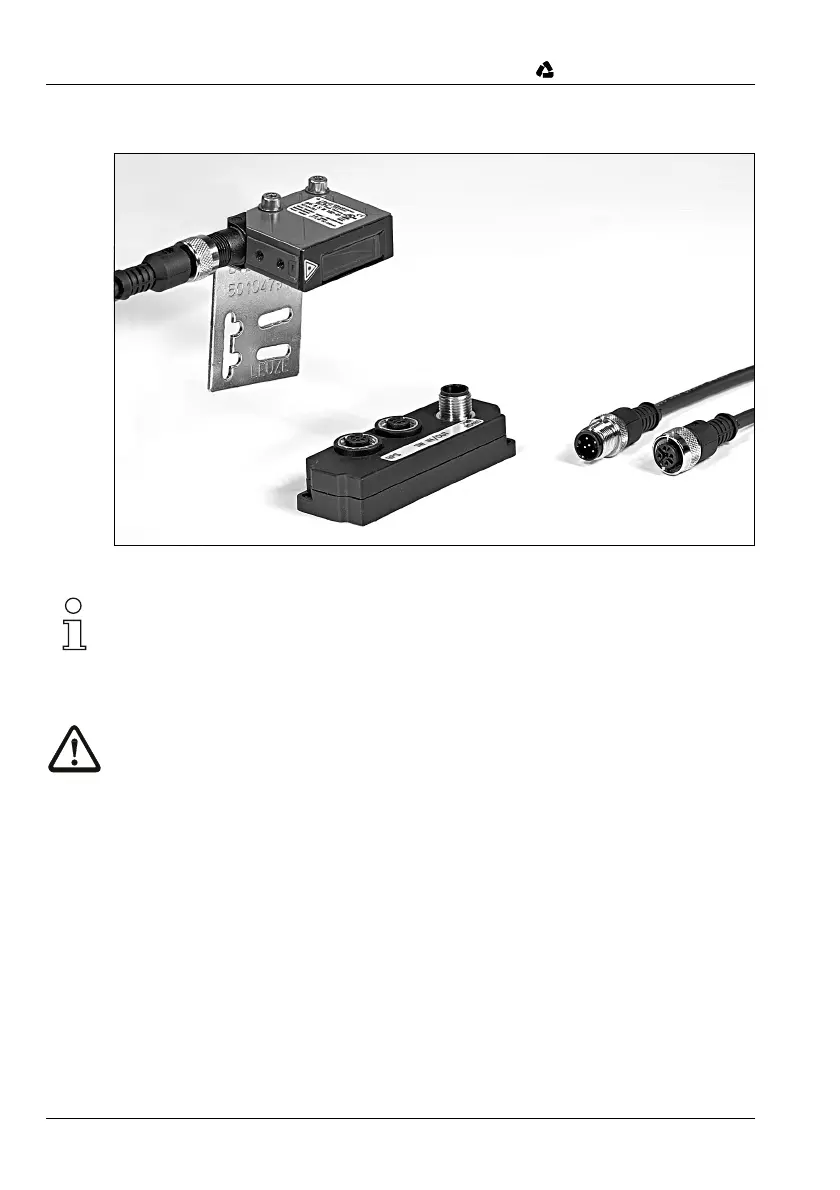

BPS 8 system components
Figure 7.3: BPS 8 system components
Notice!
When mounting, consider the angle of inclination of
10° for a tape height of 47mm,
5° for a tape height of 30mm, or 25mm,
in the vertical direction, and the working range of the reading field curve.
Attention!
For the position calculation, the scanning beam of the BPS 8 must be incident on the bar-
code tape without interruption. Ensure that the scanning beam is always incident on the bar-
code tape when the system is moving.
