Type overview and accessories Leuze electronic
88 BPS 8 Leuze electronic

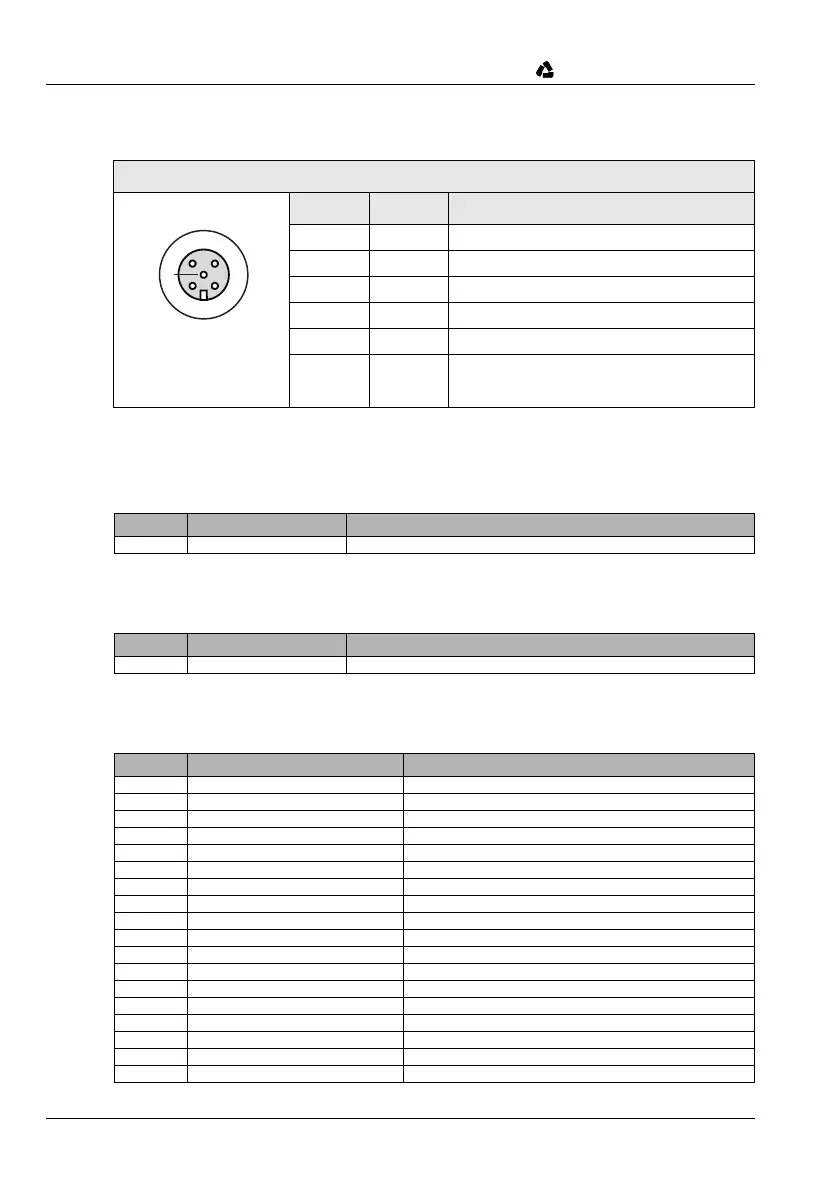

11.3.1 Contact assignment of PWR IN connection cable
Figure 11.1: Contact assignment of KB 008-10000/5000/3000 (A/R)
11.4 Accessory: Configuration software
11.5 Accessory: Mounting device
11.6 Type overview: Barcode tape
PWR connection cable (5-pin socket, A-coded)
Pin Name Core colour
1VIN brown
2B (N) white
3GND blue
4A (P) black
5FE grey
Thread FE Shield
4
12
3
5
GND A (P)
B (N)
FE
VIN
M12 socket
(A-coded)
Part No. Type designation Remark
50060298 BPS Configuration Tool Programming software
Part No. Type designation Remark
50104791 BT 8-01 Mounting device
Part No. Type designation Remark
50104792 BCB 8 010 Barcode tape, 10m length, 47mm height
50104793 BCB 8 020 Barcode tape, 20m length, 47mm height
50104794 BCB 8 030 Barcode tape, 30m length, 47mm height
50104795 BCB 8 040 Barcode tape, 40m length, 47mm height
50104796 BCB 8 050 Barcode tape, 50m length, 47mm height
50104797 BCB 8 060 Barcode tape, 60m length, 47mm height
50104798 BCB 8 070 Barcode tape, 70m length, 47mm height
50104799 BCB 8 080 Barcode tape, 80m length, 47mm height
50104800 BCB 8 090 Barcode tape, 90m length, 47mm height
50104801 BCB 8 100 Barcode tape, 100m length, 47mm height
50104802 BCB 8 110 Barcode tape, 110m length, 47mm height
50104803 BCB 8 120 Barcode tape, 120m length, 47mm height
50104804 BCB 8 130 Barcode tape, 130m length, 47mm height
50104805 BCB 8 140 Barcode tape, 140m length, 47mm height
50104806 BCB 8 150 Barcode tape, 150m length, 47mm height
50104807 BCB 8 special length 47mm high Barcode tape with special length, 47 mm height
50104808 BCB 8 special length 30mm high Barcode tape with special length, 30 mm height
50104809 BCB 8 special length 25mm high Barcode tape with special length, 25 mm height
