Commissioning steps at a glance Leuze electronic
8 BPS 8 Leuze electronic
3 Commissioning steps at a glance
Notice!
Below you will find a short description for the initial commissioning of the barcode po-
sitioning system BPS 8. Detailed explanations for all listed points can be found throughout
the manual.
Mechanical design
Mounting the barcode tape
The barcode tape is to be affixed without tension to a dust- and grease-free mounting
surface.
➔ chapter 6.3 on page 28
Mounting the BPS 8 device
There are two different types of mounting arrangements for the BPS 8:
1. Directly, using the two through holes in the housing.
2. Using a mounting device (BT 8-01) on the through holes.
Notice!
The installation dimensions listed in figure 3.1 and figure 3.2 must absolutely be adhered to.
Optically, it must be ensured that the scanner has an unobstructed view of the barcode tape
at all times.
➔ chapter 7.2 on page 39

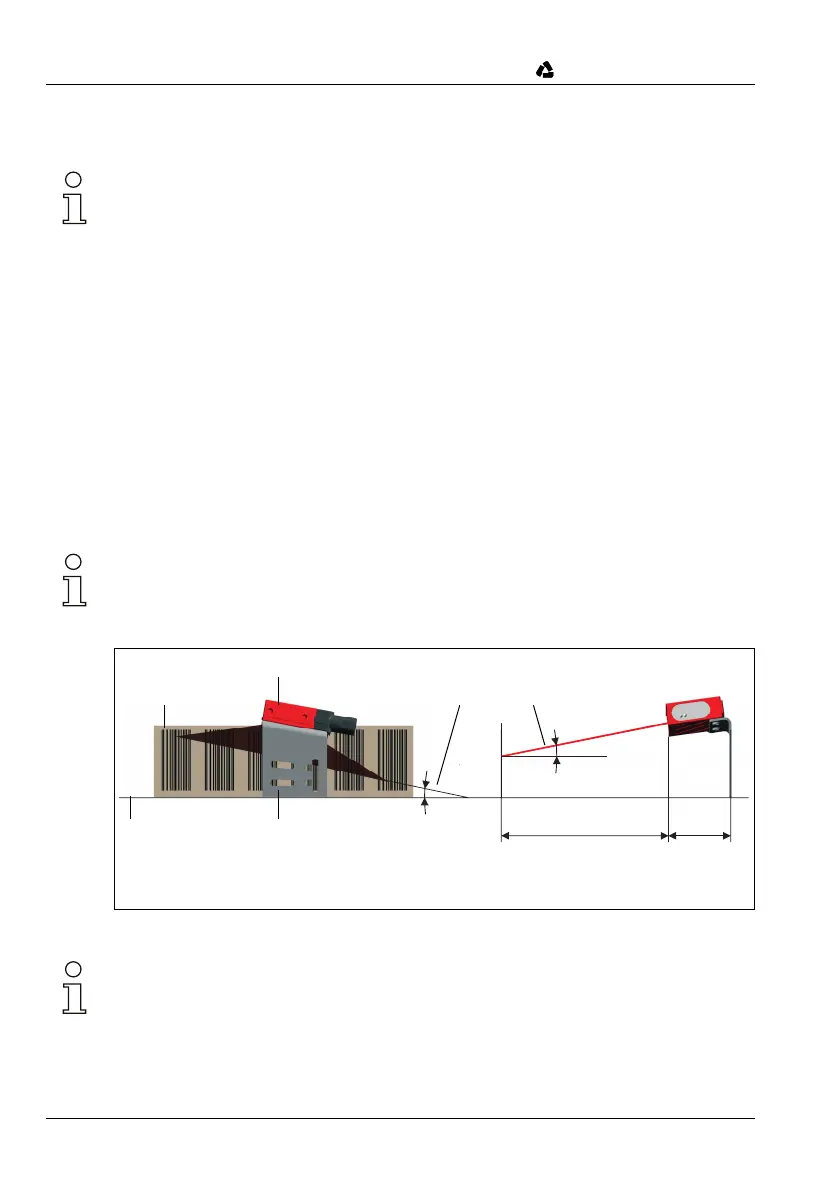

Figure 3.1: Beam exit and device arrangement for the BPS 8 SM 102
Notice!
When mounting, consider the angle of inclination
α
of
10° for a barcode tape height of 47mm,
5° for a barcode tape height of 30mm, or 25mm
in the vertical direction, and the working range of the reading field curve.
➀
10˚
40 mm
α
Read distance
Reference plane
Barcode tape
BPS 8 SM 102
Pitch of scanning beam
BT 8-01
Pitch of scanning beam:
α = 10° for a tape height of 47mm
α = 5° for a tape height of 30mm or 25mm
