Body and Paint
2
S023074 PA1
2020-05-12
23

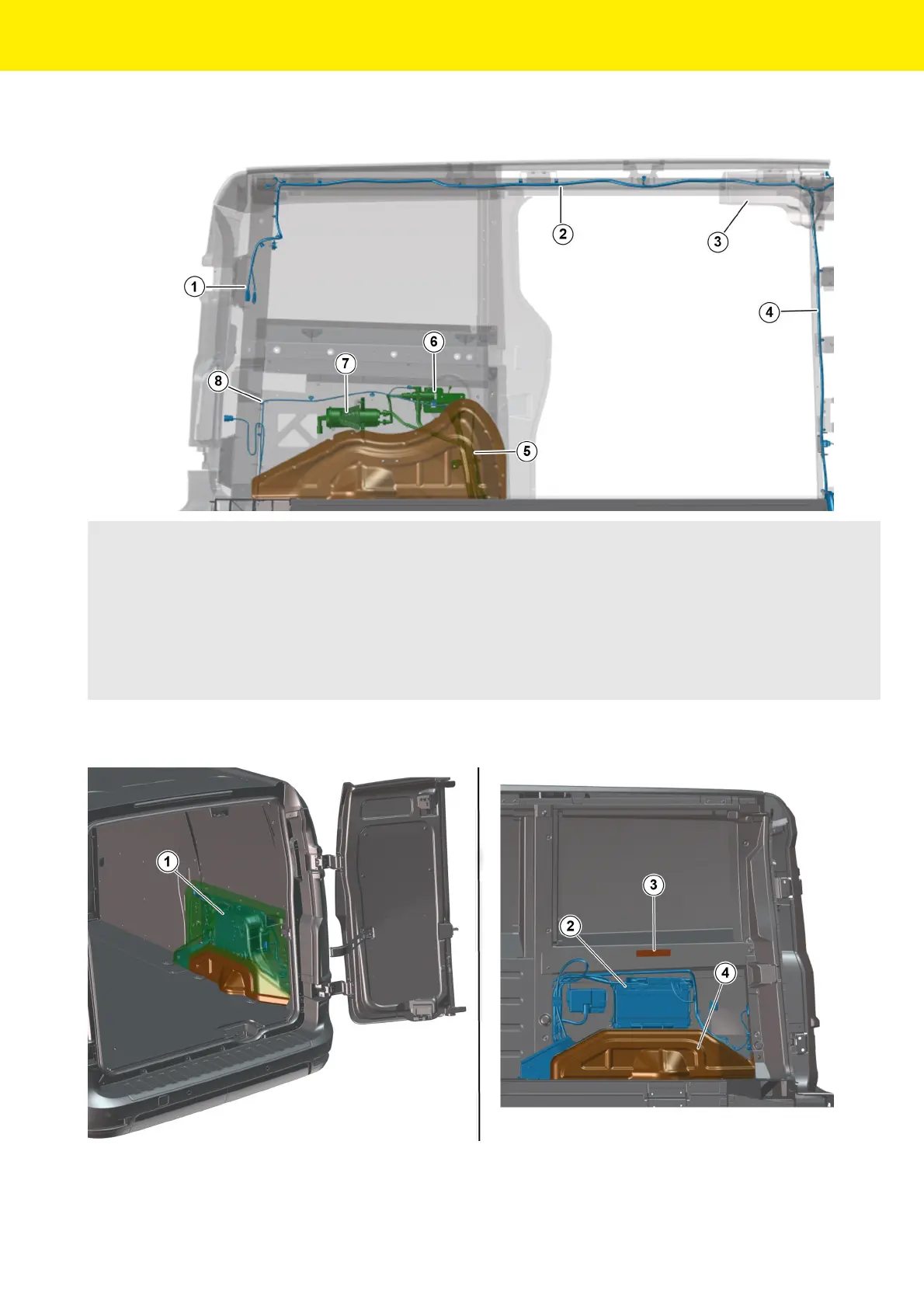

Load Space - Left Side
1 12V wiring harness, connectors for left rear door inside the D-pillar.
2 12V wiring harness, surface mounted in the load space.
3 12V wiring harness, installed behind the door rail cover.
4 12V wiring harness attached to the B-pillar, in front of the load space bulkhead.
5 Left rear wheel arch. Do not drill into this panel. The fuel tank filler pipe is behind this panel.
6 Fuel tank filler pipe and evaporative emissions valve.
7 Evaporative emissions canister
8 12V wiring harness, attached externally, accessible in the left rear wheel arch.
Load Space - Right Side
