Remove the cover 1 so you can see the 12V electrical components 2 before you drill in this
area. Do not damage or drill into the Vehicle Identification Number (VIN) 3. Do not drill into the
inner wheel arch 4.

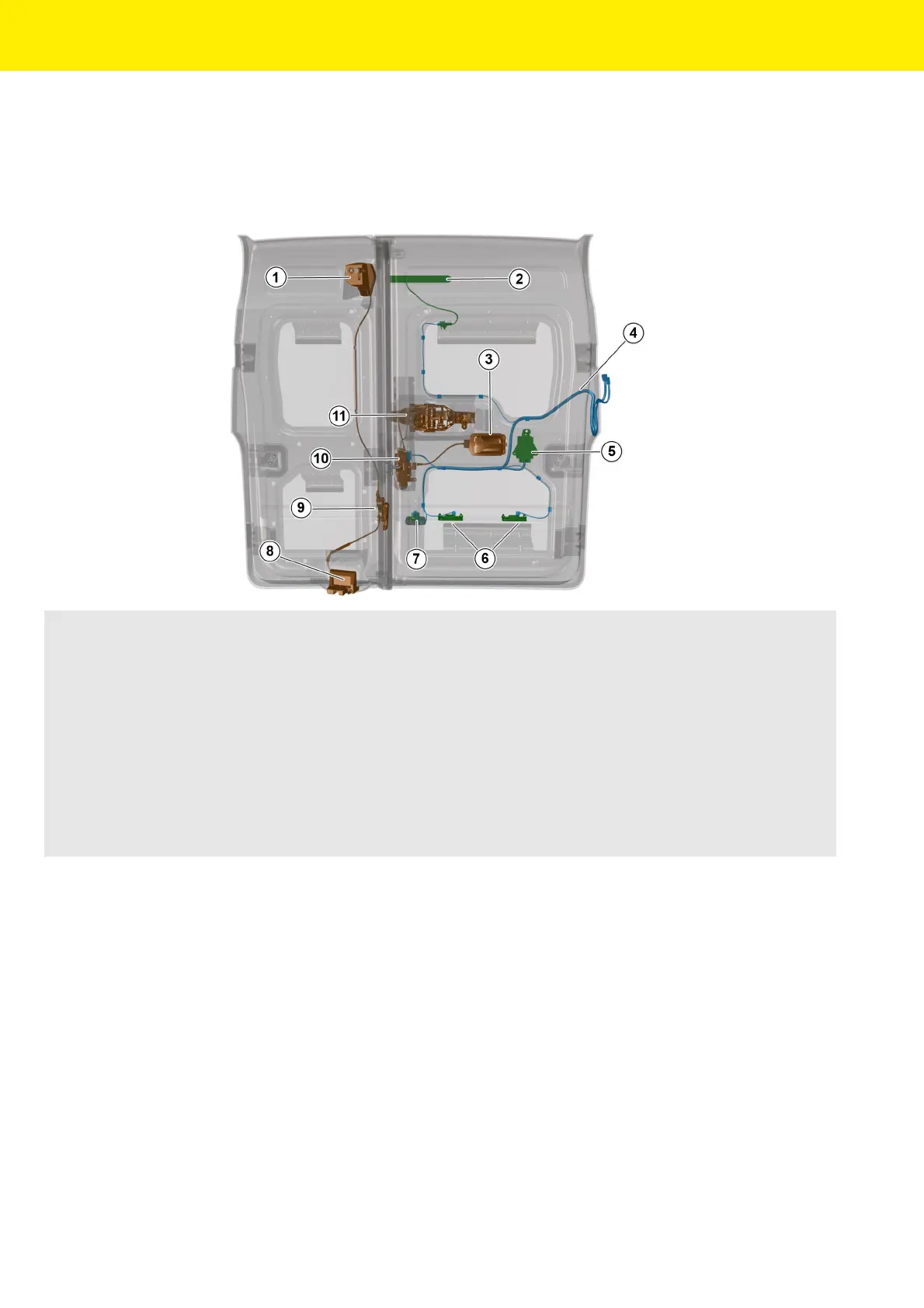

Load Space - Rear Doors
1 Latch
2 Centre High Mounted Stop Light (CHMSL)
3 Interior door release lever
4 12V wiring harness
5 Door control module
6 Number plate lights
7 Rear view camera
8 Latch
9 Latch release mechanism
10 Door lock mechanism
11 Exterior door handle and mechanism
There are no electrical components in the right rear door.
